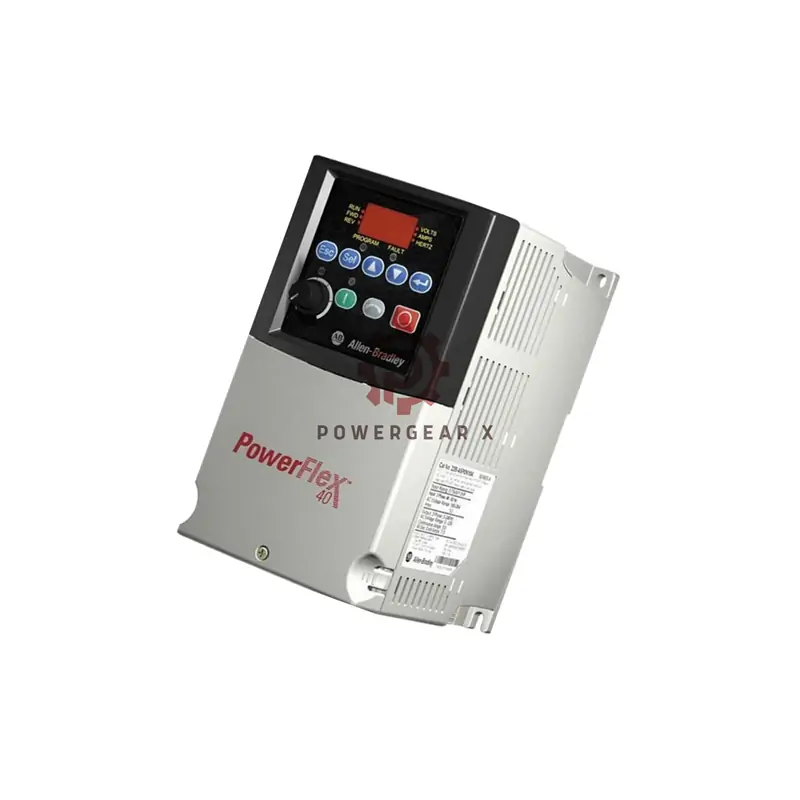

PowerFlex 40 Drive: Precision Motor Control for Industrial Efficiency
The Allen-Bradley 22B-D1P4H204 adjustable frequency drive delivers smooth, friction-optimized speed and torque control for PLC motors. Part of Rockwell Automation’s PowerFlex 40 series, this compact drive (0.5HP/0.4kW) features RS-485 communication, DIN rail mounting, and robust performance in space-constrained setups.
Download Manual
Technical Data
| Brand | Allen-Bradley/Rockwell Automation |
| Model | 22B-D1P4H204 |
| Power | 0.5 HP (0.4 kW) |
| Voltage | 480V AC |
| Amperage | 1.4 A |
| Frequency Response | 0.1–400 Hz |
| Resolution | 0.1 Hz |
| Temperature Range | 0°C to 40°C |
| Enclosure | IP20 (NEMA Open) |
| Communication | RS-485 with keypad input |
| Anti-Interference | MOV ground protection |
Installation Guide
- Mount via DIN rail (A/B frames) or flange
- Zero-stack design saves space
- Ambient temperature ≤40°C
- Relay pre-charge limits inrush current
Compatibility
- Works with 3-phase PLC motors (0.2–11 kW)
- Ungrounded distribution system-ready
Certifications
- UL/NEMA Open Type (IP20)
- CE non-filter compliant
Package & Warranty
- Includes drive unit, keypad, installation guide
- 12-month warranty
- Ships via FedEx, UPS, or DHL
FAQ
Q: Does it include a CE filter?
A: No CE filter included.
Q: Ambient temperature limit?
A: Max 40°C (zero-stack configuration).
Q: Communication protocol?
A: RS-485 with keypad control.
Manual Download
22B-D1P4H204 ensures reliable motor control—order today for seamless integration!
