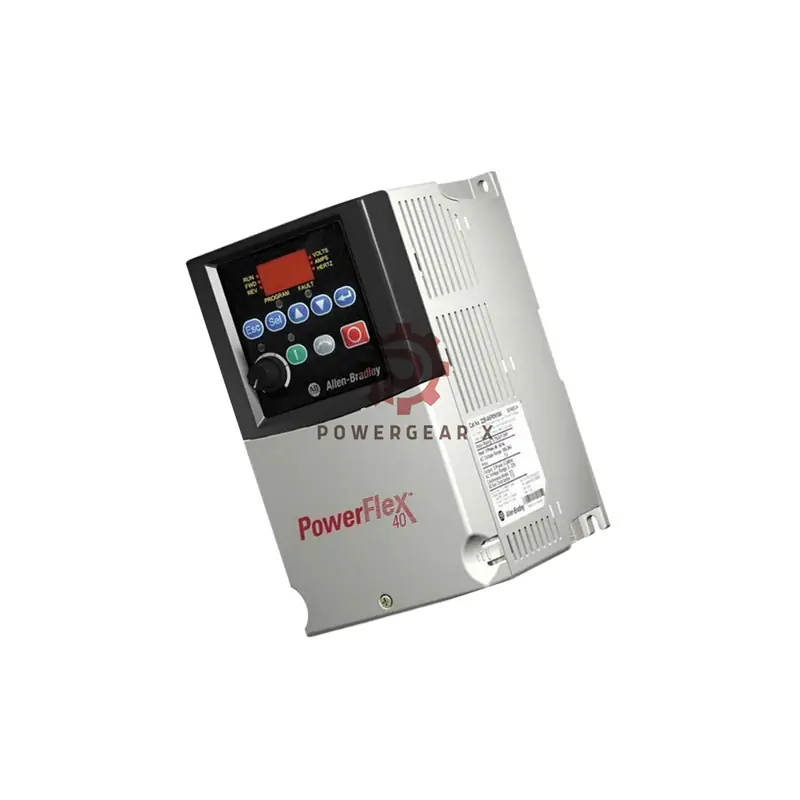

Allen-Bradley 22B-D024N104 PowerDrive
High-power motor control with 97.5% energy efficiency. Perfect for industrial automation systems.
Power Specifications
- Model: 22B-D024N104
- Power: 15 HP (11 kW)
- Input: 342-528V AC 3-Phase
- Output: 24A @ 0-460V AC
- Efficiency: 97.5%
- Frequency: 0-400 Hz Output
- Size: 320x130x180mm
- Weight: 9.5 lbs (4.3 kg)
Smart Control System
- Sensorless vector torque control
- 4-digit LCD status display
- Integrated IGBT braking
- V/Hz control technology
Connectivity Hub
- 3 fixed + 4 programmable inputs
- 2 analog inputs (0-10V/4-20mA)
- RS-485 daisy-chain (32 drives)
- Supports: Profibus, BACnet, Ethernet I/P
Energy Saving
- 97.5% operating efficiency
- Adjustable idle power settings
- Smart acceleration control
- 25W internal power dissipation
Industrial Protection
- IP20/NEMA Open enclosure
- ESD-safe components
- Overload shutdown
- Voltage spike protection
Global Support
- 12-month warranty
- FedEx / UPS / DHL options
- Express shipping available
Expert Questions
Q: Max motor power supported?
A: 15 HP (11 kW) continuous
Q: Network connectivity?
A: RS-485 + optional Profibus/Ethernet
Q: Braking system type?
A: Integrated IGBT brake
Q: Display features?
A: 4-digit LCD with status alerts
Q: Input voltage tolerance?
A: 342-528V AC (3-phase)
Get Installation Guide
- Download full manual: PowerFlex 40P Drive Manual
