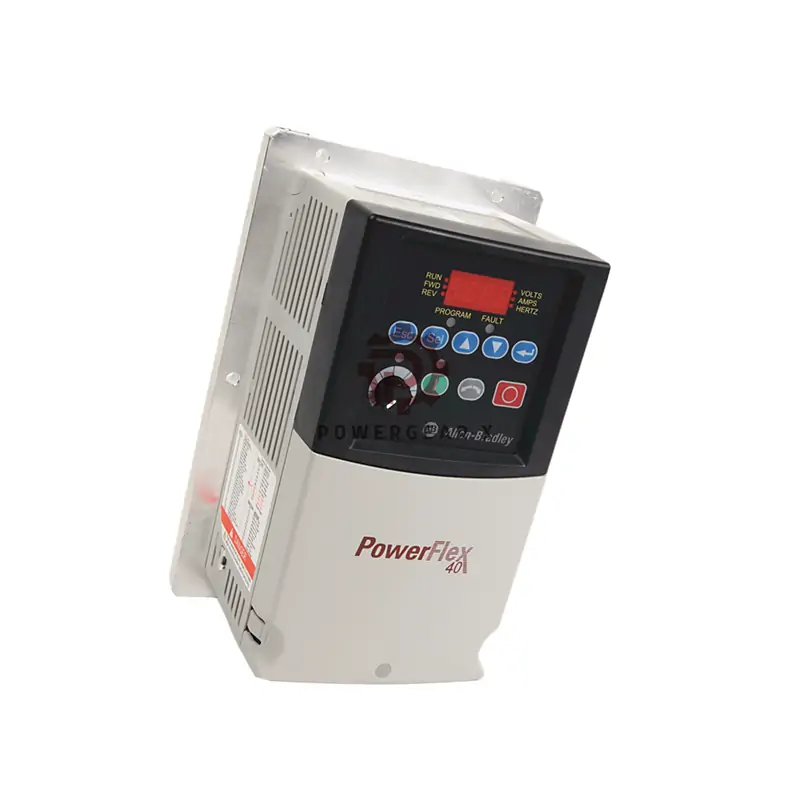

Allen-Bradley 22B-D012F104 PowerFlex 40 Drive: 7.5HP Industrial Powerhouse

Control heavy-duty motors with this 480V powerhouse drive. Perfect for industrial automation needing high-torque performance and sensorless vector control. Ships same-day via FedEx/UPS/DHL.

Drive Identity & Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Full Model: 22B-D012F104
• Product Line: PowerFlex 40 Series
• Suffix Decoder:
  • 22B: PowerFlex 40 Platform
  • D: 480V Voltage Class
  • 012: 12A Output Current
  • F: Flange Mount Enclosure
  • 104: Standard Control Features

Technical Power Profile

• Input Power: 480V AC, 3-Phase, 50/60Hz
• Output Capacity: 12A, 7.5 HP (5.5 kW)
• Voltage Tolerance: 380-480V AC Range
• Speed Range: 0.5 to 400 Hz Output
• Torque Boost: Sensorless Vector Control

Physical & Environmental

• Dimensions: 325×300×105mm (12.8×11.8×5.4in)
• Weight: 11.93 kg (26.3 lbs)
• Enclosure: IP20 Flange Mount
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Storage Temp: -40°C to 85°C (-40°F to 185°F)

Advanced Capabilities

• Motor Control: Sensorless Vector Technology
• Cooling System: Built-in cooling fan
• Communication: RS-485 network ready
• User Interface: Integrated LED keypad
• Overload Protection: 150% for 60 seconds

Shipping & Warranty

• Delivery: FedEx, UPS, DHL express options
• Coverage: 12-month warranty
• Certifications: CE, UL, cUL listed
• Package: Drive unit, mounting hardware, quick-start guide

Expert FAQs

• Q: What’s the maximum motor size supported?
  A: Designed for 7.5HP (5.5kW) motors
• Q: Can this drive handle voltage fluctuations?
  A: Yes, operates from 380V to 480V input
• Q: Is external cooling required?
  A: Built-in fan provides sufficient cooling
• Q: What’s the flange mount advantage?
  A: Saves panel space, secure installation
• Q: Does it support network monitoring?
  A: Yes, via RS-485 communication
