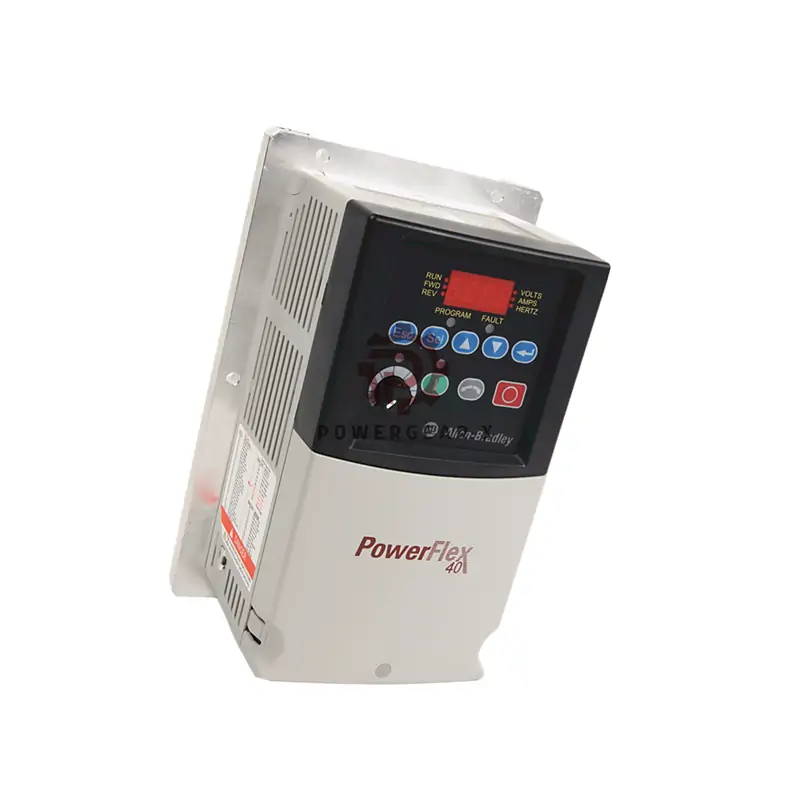

Allen-Bradley 22B-B012H204 PowerFlex 40 AC Drive – 3HP, 240V, 3-Phase

Key Features

• Input Voltage: 180–265V AC, 3-phase
• Output Power: 3 HP (2.2 kW), 12.0A
• Enclosure: IP20, NEMA/UL Open Type (without heatsink)
• Control Method: Sensorless Vector, V/Hz
• Display: Integrated 4-digit LED and fixed keypad
• Frequency Range: 0–200Hz
• Modulation Frequency: 16kHz
• Speed Regulation: ±2%
• Communication: RS-485 (integrated)
• Protection: 150% overload (60s), 200% (3s), 300% instantaneous fault

Technical Specifications

• Brand: Allen-Bradley
• Manufacturer: Rockwell Automation
• Model: 22B-B012H204
• Series: PowerFlex 40
• Voltage Rating: 240V AC (3-phase)
• Amperage: 12.0 A
• Power Rating: 3 HP / 2.2 kW
• Dimensions: 125 x 204 x 97.5 mm (4.92 x 8.03 x 3.84 in)
• Weight: Approx. 1.68 kg (3.7 lb)

Package Contents

• 1 x 22B-B012H204 PowerFlex 40 Drive
• Mounting accessories
• User manual (digital download)

Warranty & Shipping

• Warranty: 12 months limited warranty
• Shipping Options: FedEx, UPS, DHL (worldwide)

Download the Full Manual

For detailed wiring diagrams, parameter settings, and application guidance, download the user manual.

Compare with Similar Models

• 22B-E012H204 – PowerFlex 40P, 3HP, 240V AC
• 22B-E019H204 – PowerFlex 40P, 5HP, 240V AC

Frequently Asked Questions (FAQ)

• Is the 22B-B012H204 suitable for outdoor use?
  No, it comes in an IP20 open enclosure and must be installed in a protected environment.
• Can this drive operate a single-phase motor?
  No, it is designed for 3-phase motor applications only.
• Does it support remote control?
  Yes, through RS-485 communication and digital inputs.
• What protections are included?
  Overload protection up to 200%, short-circuit fault detection, and motor thermal protection.
