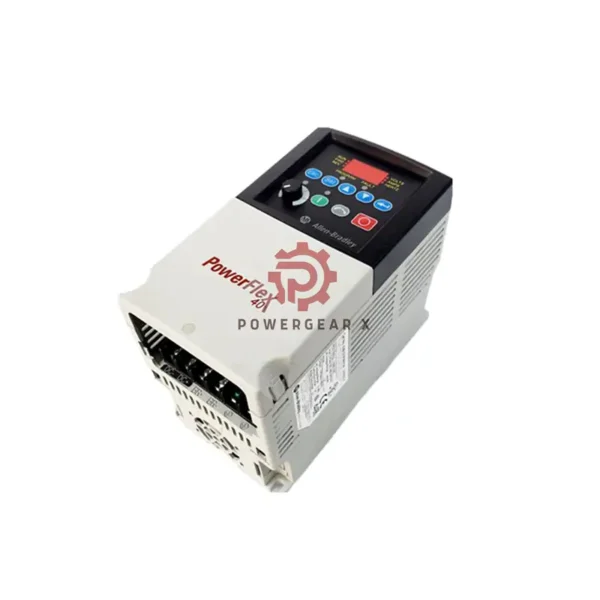

PowerFlex 40 Allen-Bradley | AC Drive New 22B-A5P0N104

Allen-Bradley 22B-A5P0N104 PowerFlex 525 Drive

22B-A5P0N104 delivers precision motor control. This 1HP drive features sensorless vector technology and integrated safety. Perfect for industrial automation.

Core Specifications

• Model: 22B-A5P0N104
• Power: 1 HP / 0.75 kW
• Voltage: 200-240V AC (1-phase in → 3-phase out)
• Current: 5.0A output | 12A input
• Efficiency: 97.5%

Smart Control Features

• Sensorless Vector: Auto-tunes to any motor
• Integrated Safety: Safe-Torque-Off (STO) function
• StepLogic Tech: Custom sequencing
• Built-in PID: Standalone process control

Technical Performance

• Frequency Range: 0-400 Hz
• I/O Ports: 4 digital inputs, 2 analog inputs
• Cooling: 55W power dissipation
• Enclosure: IP20 panel mount

Installation Guide

• DIN rail or panel mounting
• Zero stacking supported
• Critical: Install 20A fuses (140M-C2E-C16)
• Use 100-C12 contactor

Support & Delivery

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL
• UPC: 820919078439

Industrial FAQs

• Q: Does it include circuit protection?
  A: No – install 20A fuses separately
• Q: Can it control multiple motors?
  A: Yes with StepLogic sequencing
• Q: Minimum frequency accuracy?
  A: ±0.5% at low speeds
• Q: Braking capability?
  A: Built-in IGBT brake
• Q: Display features?
  A: 4-digit LCD + 10 status LEDs

Get Full Documentation

• PowerFlex 525 Manual (PDF)
