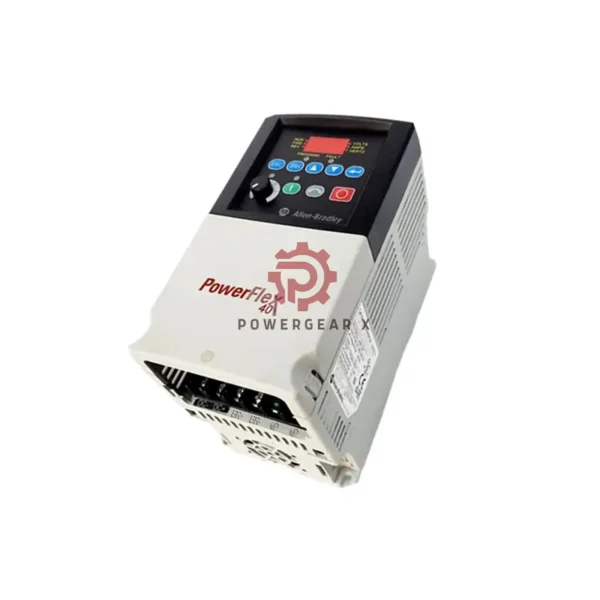

Allen-Bradley 22B-D2P3F104 Drive: Precision Motor Control
Optimize AC motors with the 22B-D2P3F104. This 1HP VFD delivers sensorless vector control in a compact package. Perfect for space-sensitive installations.
Technical Specifications
- Power System
- Input: 342-528V AC (3-phase)
- Output: 1HP (2.3A)
- Range: 0.75kW power rating
- Control Interface
- Display: 4-digit LCD + status LEDs
- Keypad: Fixed or remote HIM options
- Analog Inputs: 2x 0-10V/4-20mA
- Physical Design
- Size: 250x244x157mm
- Weight: 4.5kg
- Mount: Flange (IP20)
- Performance
- Altitude: 1000m max operation
- Temperature: -10°C to 50°C operating
- Dissipation: 40W total
Shipping & Warranty
- Global Delivery: FedEx, UPS, DHL
- Full Protection: 12-month warranty
- Altitude Ready: Certified for 1000m operation
Professional FAQ
Q: What control method does this drive use?
A: Sensorless vector control for precise torque regulation.
Q: Can I add braking resistance?
A: Yes, compatible with AK-R2-360P500 resistors.
Q: How many programmable I/O ports?
A: 3 fixed + 4 programmable digital I/O.
Q: What’s the maximum operating altitude?
A: 1000 meters before derating.
Q: Can I use remote displays?
A: Yes, supports remote HIM modules.
Download Manual
Enhance your motor control with the 22B-D2P3F104 – order today!
