Product details

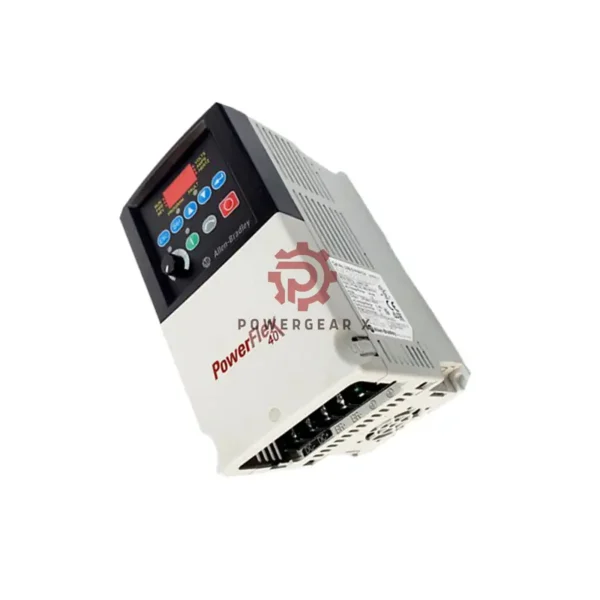

Allen-Bradley 22B-B033N104 PowerFlex 40 Variable Frequency Drive (VFD)
The Allen-Bradley 22B-B033N104 PowerFlex 40 VFD offers outstanding performance for a variety of motor control applications. This adjustable frequency drive features a 7.5 kW (10 HP) output, a 240VAC, 3-phase input, and a host of integrated communication features, making it ideal for industrial control systems.
Detailed Technical Specifications:
- Model: 22B-B033N104
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Input Voltage: 200-240 VAC, 3-phase
- Rated Power: 7.5 kW (10 HP)
- Output Current: 33.0 A
- Input Current: 5.7 A
- Control Method: Sensorless Vector Control (SVC)
- Frequency Range: 0-400 Hz
- Keypad Type: LED Keypad
- I/O Terminals: 3 fixed inputs (Start/Stop/Reverse), 4 programmable outputs, 2 analog inputs (0-10V or 4-20mA), 1 discrete output (NO/NC dry contact)
- Communication Ports: RS-485
- Enclosure: Panel Mount, IP20 / NEMA UL Type Open
- Storage Temperature: -10°C to 50°C
- Operating Temperature: Up to 50°C (ambient)
- Dimensions: 260 x 130 x 180 mm (10.20 x 5.10 x 7.1 in.)
- Weight: 4.31 kg (9.5 lb.)
- Air Flow: Ensure enough ventilation and do not mount drives directly above each other for optimal air movement.
Warranty and Shipping:
- Warranty: 12-month warranty from the date of purchase.
- Shipping: Available via FedEx, UPS, and DHL for fast and secure delivery.
