PowerFlex 40 Allen-Bradley | AC Drive 22B-E1P7H204 New

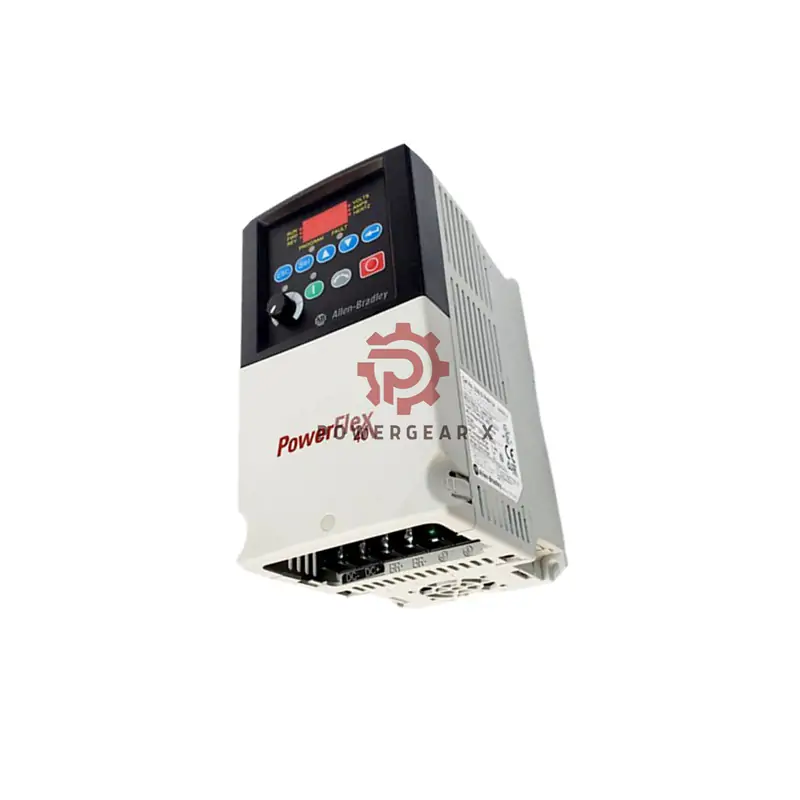

Allen-Bradley 22B-E1P7H204 PowerFlex 40 Drive

22B-E1P7H204 packs powerful control in compact size. This 1HP 600V drive fits tight spaces while delivering industrial-grade performance.

Compact Power Specs

• Model: 22B-E1P7H204
• Power: 1 HP / 0.75 kW
• Voltage: 460-600V AC 3-phase
• Current: 1.7A output
• Frame: Size B (space-saving)

Space-Saving Features

• Zero Stacking: No spacing needed between drives
• Dual Mounting: DIN rail or panel install
• Compact Design: 50% smaller than standard drives
• Temp Range: Up to 50°C in stacked config

Easy Installation

• Snap-on DIN rail mounting
• IP20 standard (IP30 optional)
• 4-digit display + 10 LEDs
• PC programming via RS485

Support & Shipping

• Warranty: 12 months
• Delivery: FedEx, UPS, DHL
• Protection: Dust-proof up to 12mm

Expert FAQs

• Q: How close can drives be mounted?
  A: Zero spacing needed with Zero Stacking
• Q: Communication options?
  A: RS485 + optional Ethernet/IP, PROFIBUS
• Q: Braking system included?
  A: Yes – built-in brake transistor
• Q: Display features?
  A: 4-digit LCD + 10 status LEDs
• Q: Enclosure upgrades?
  A: Optional IP30 available
