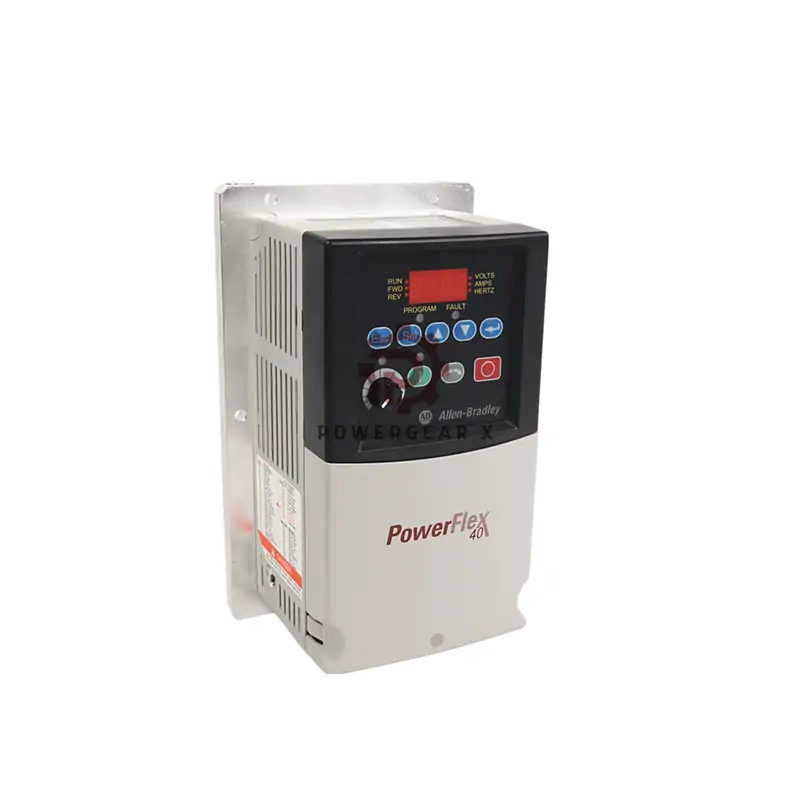

Allen-Bradley 22B-E4P2F104 PowerFlex 40 Drive

22B-E4P2F104 delivers high torque in tight spaces. Perfect for pumps, conveyors, and industrial machines needing 600V power.

Key Specifications

• Model: 22B-E4P2F104
• Power: 3 HP / 2.2 kW
• Voltage: 500-600V AC (3-phase)
• Current: 4.2A output
• Size: 9.84 x 9.61 x 3.71 in (250 x 244 x 94.3 mm)

Durability & Safety

• Temp Range: 0°C to 60°C (operating)
• Humidity: 5-95% (non-condensing)
• Cable Requirement: ≥0.4mm insulation
• Enclosure: IP20 (dust-resistant)

Installation Guide

• Flange-mount for secure fit
• Keep cables ≥0.4mm thick
• No direct sunlight or moisture
• Storage temp: -40°C to 85°C

Support & Shipping

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL
• Weight: 4.53 kg (10 lbs)

Expert FAQs

• Q: Can it handle heavy loads?
  A: Yes—sensorless vector provides high starting torque.
• Q: Minimum cable thickness?
  A: Use cables ≥0.4mm (0.015 in) insulation.
• Q: Communication options?
  A: RS-485 for PC or PLC integration.
• Q: Mounting flexibility?
  A: Flange-mount design for secure installation.
• Q: Storage conditions?
  A: Store at -40°C to 85°C, 5-95% humidity.
