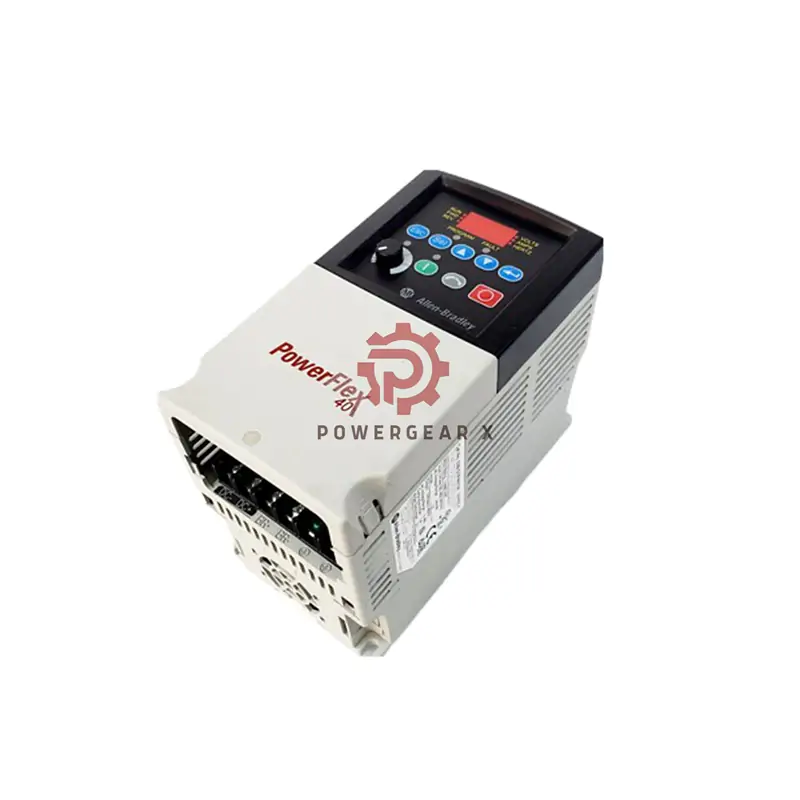

Allen-Bradley 22B-D1P4N104 Compact Drive

Precision control for small motors. Get full technical details now:

• Download PowerFlex 40P Manual (PDF)

Drive Features

The 22B-D1P4N104 delivers smart motor control in a compact package. Perfect for OEMs and small applications.

Technical Specifications

• Power System
  • Input: 342-528V AC (3-phase)
  • Output: 1.4A | 0.5HP (0.4kW)
  • Frequency: 50/60 Hz
• Control Features
  • Sensorless vector control
  • Auto-tune function
  • Built-in brake
• I/O Connections
  • 3 fixed digital inputs
  • 4 programmable outputs
  • 2 analog inputs
  • 1 analog output
• Environment
  • Operation: 10°C to 50°C
  • Altitude: Up to 1000m
  • Panel mount design

Key Benefits

• Space-saving compact size
• Precise control with auto-tuning
• Easy setup with LCD keypad
• Multiple I/O options

Installation & Support

• Simple panel mounting
• RS-485 communication
• 12-month warranty
• Fast shipping: FedEx, UPS, DHL

Smart Features

• Built-in potentiometer
• Remote operation ready
• ESD protected

Expert FAQs

Q: Minimum voltage requirement?
A: 342V AC minimum input.

Q: PC programming options?
A: Yes, via Drive Explorer software.

Q: Dry contact rating?
A: 1 NO/NC contact included.

Q: Altitude limitations?
A: Works up to 1000m without derating.

Q: Analog input types?
A: Accepts 0-10V or 4-20mA signals.
