PowerFlex 40 Allen-Bradley | 22B-D024H204 AC Drive Buy Now

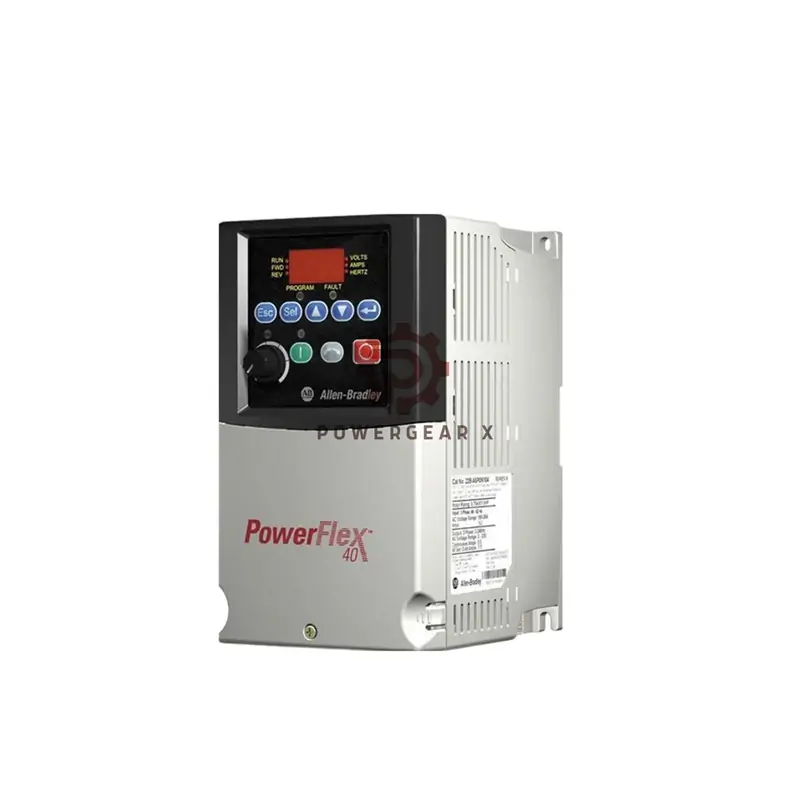

Allen-Bradley 22B-D024H204: High-Power 15HP Drive

Industrial motor control solution for heavy-duty applications. 480V 3-phase input. Space-saving design. Advanced protection features. DIN rail mounting.

Technical Specifications

• Drive Identity
  • Model: 22B-D024H204
  • Series: PowerFlex 40
  • Brand: Allen-Bradley
• Power Performance
  • Input: 480V AC, 3-Phase
  • Output: 15 HP (11 kW)
  • Current: 24.0 Amps
  • Overload: 150% (60s), 200% (3s)
• Installation Options
  • Mounting: DIN Rail or Panel
  • Enclosure: IP20 (NEMA Open)
  • Space Saving: Zero stacking to 40°C
  • Heatsink: Not included
• Protection Systems
  • Removable MOV for ungrounded systems
  • Relay pre-charge limits inrush current
  • Integral brake transistor
  • EMC compliance: EN55011 Class A/B

Order & Support

• Warranty: 12-month coverage
• Global Shipping: FedEx, UPS, DHL
• Compliance: EN55011 Class A/B
• Control: Keypad operation

Technical FAQs

• Q: What mounting options are available?
  A: DIN rail or panel mounting for flexible installation
• Q: Does it include EMC filtering?
  A: Yes, meets EN55011 Class A/B requirements
• Q: What overload protection is provided?
  A: 150% for 60 seconds, 200% for 3 seconds
• Q: Can it handle ungrounded systems?
  A: Yes, features removable MOV for such applications
• Q: What space-saving features does it have?
  A: Zero-stacking design saves panel space up to 40°C

Documentation Download

Access full installation guide:

• PowerFlex 40P Drive Manual (PDF)

Package Includes: 22B-D024H204 Drive Unit, Keypad, Mounting Hardware.
