Product details

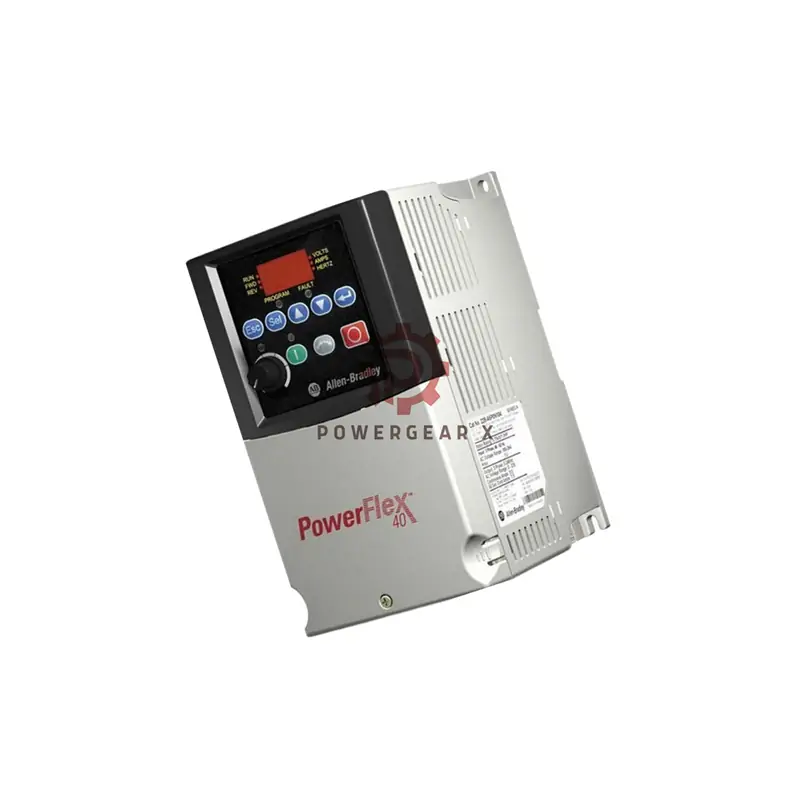

Allen-Bradley 22B-D012H204: 7.5HP PowerFlex Drive with Sensorless Vector
Industrial 480VAC drive offering precise motor control in compact form. Ideal for space-constrained installations.
Key Advantages
- Space-Saving Design: Compact plate drive (284×155×108mm)
- Dual Control Modes: Sensorless Vector + V/Hz for flexible operation
- High Power Density: 7.5HP (5.5kW) in lightweight 2.59kg package
- Network Ready: Built-in RS485 communication
Technical Specifications
- Power: 7.5HP (5.5kW) @ 12A
- Voltage: 380-480VAC, 50/60Hz
- Control: 24V sink/source I/O
- Enclosure: IP20 (Open chassis)
- Dimensions: 11.18″×6.1″×4.25″
- Weight: 5.7 lbs (2.59 kg)
- Shock Resistance: 30g (operating), 50g (non-operating)
FAQ
- Q: Is heatsink included?
A: No, this is plate drive version without heatsink - Q: Minimum voltage requirement?
A: 380VAC minimum input - Q: Protection against power surges?
A: Built-in IGBT brake protects against overvoltage - Q: Suitable for outdoor use?
A: No, IP20 rating requires protected installation - Q: Programming options?
A: Fully programmable via built-in keypad
Package & Support
- 1 × Drive unit
- Installation guide
- 12-month warranty
- Express shipping: FedEx/UPS/DHL
Download Resources
- Complete manual: Download Product Manual
