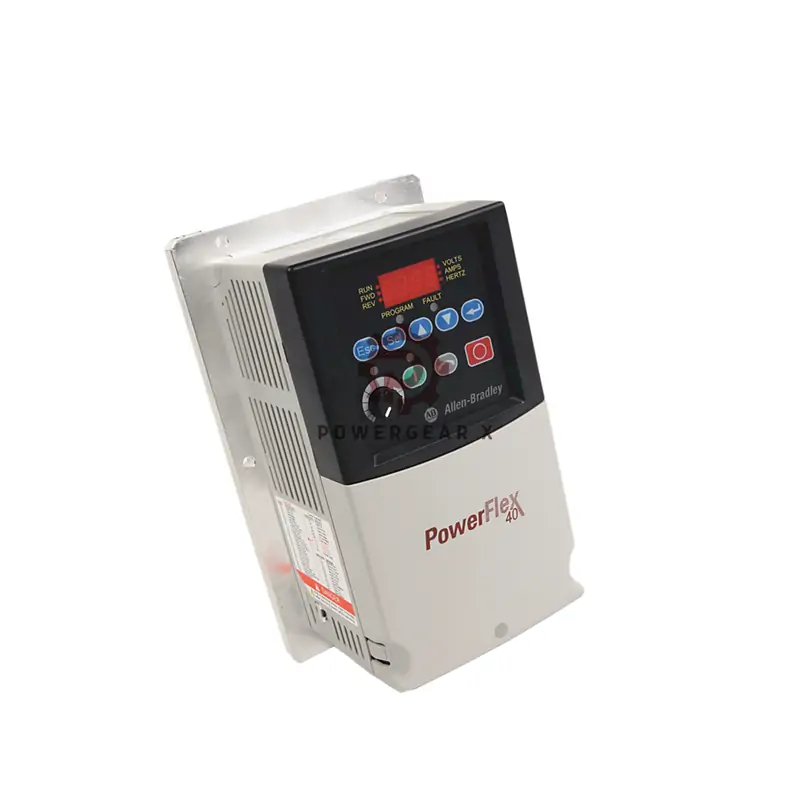

Allen-Bradley PowerFlex 40 Series AC Drive – 22B-D010H204

Control industrial motors precisely with the compact Allen-Bradley 22B-D010H204. This 5HP drive features 480V voltage, RS-485 communication, and robust protection for demanding environments.

Technical Data

• Brand: Rockwell Automation / Allen-Bradley
• Model: 22B-D010H204
• Power: 5 HP (4 kW)
• Voltage: 480V AC (380-480V range)
• Current: 10.0 Amps
• Frequency Response: 50-60 Hz
• Protection: IP20 (Open enclosure)
• Temperature Range:
  • Operating: 32°F to 140°F
  • Storage: -40°F to 185°F
• Environmental:
  • Humidity: 95% non-condensing
  • Shock: 30g (operating), 50g (non-operating)

Installation & Setup

• Mount vertically with proper ventilation
• Ambient air ≤104°F (40°C)
• Self-diagnostic fault codes via display

Package Includes

• 22B-D010H204 Drive Unit
• Installation manual
• 12-month warranty
• Global shipping: FedEx, UPS, DHL

FAQ

• Q: CE filter included?
  A: No, external filter required
• Q: Fan replacement?
  A: Use P/N 2410ML-05W-B30-B00
• Q: Single-phase input?
  A: 3-phase only

Resources

Download full manual:
PowerFlex 40 Series Manual (PDF)

Compare Models

• PowerFlex 40 22B-D015N104 (7.5HP)
• PowerFlex 40P 22C-D025A104 (10HP)
