PowerFlex 40 22B-D6P0N104 Allen-Bradley | AC Drive New

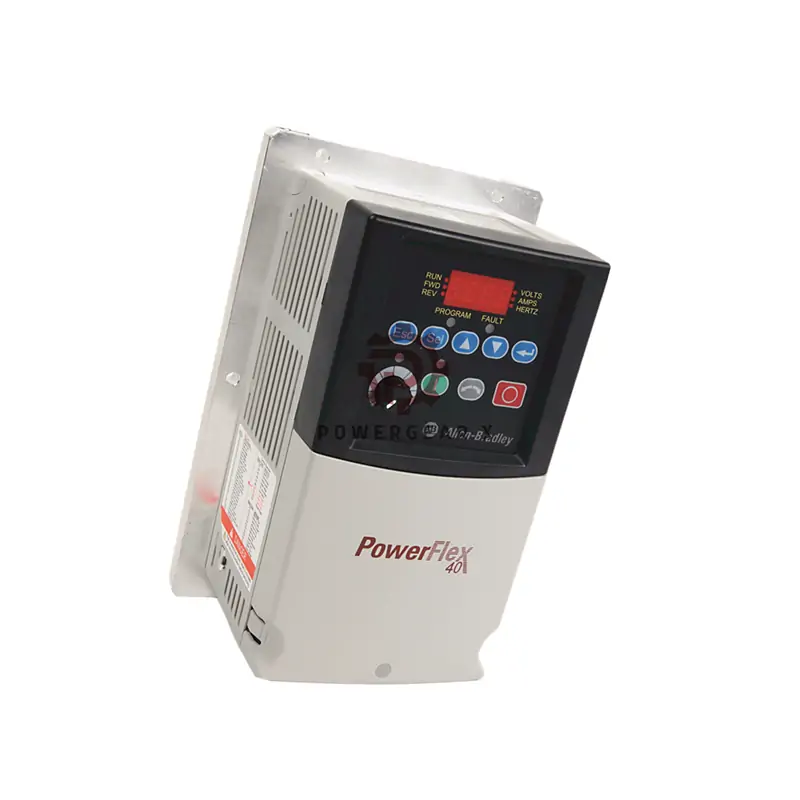

Allen-Bradley 22B-D6P0N104 PowerFlex 40 Drive

22B-D6P0N104 delivers powerful 3HP motor control. Perfect for pumps, conveyors, and machine tools with advanced sensorless vector technology.

Core Specifications

• Model: 22B-D6P0N104
• Power: 3 HP / 2.2 kW
• Voltage: 342-528V AC 3-phase
• Current: 6.0A output
• Frame: Size B (compact)

Industrial-Grade Features

• Smart Control: Sensorless vector & V/Hz modes
• Brake Ready: Built-in IGBT braking
• Network Ready: RS485 communication
• Overload: 150% for 60 seconds

Technical Performance

• Protection: Class 10 motor safety
• Display: LCD with LED keypad
• I/O: 3 fixed + 4 programmable inputs
• Approvals: UL, CUL, EAC, KCC

Installation Guide

• Panel mount design
• IP20/NEMA Open enclosure
• Works with ungrounded systems
• 0.5s ride-through time

Support & Shipping

• Warranty: 12 months
• Delivery: FedEx, UPS, DHL
• UPC: 820919078569

Expert FAQs

• Q: Can it handle heavy startups?
  A: Yes – 200% overload for 3 seconds
• Q: Process control options?
  A: Built-in PID for standalone control
• Q: Communication protocols?
  A: RS485 for network integration
• Q: Braking capability?
  A: Dynamic braking with IGBT
• Q: Speed control methods?
  A: Both V/Hz and vector control

Download Complete Manual

• PowerFlex 40 Series Guide (PDF)
