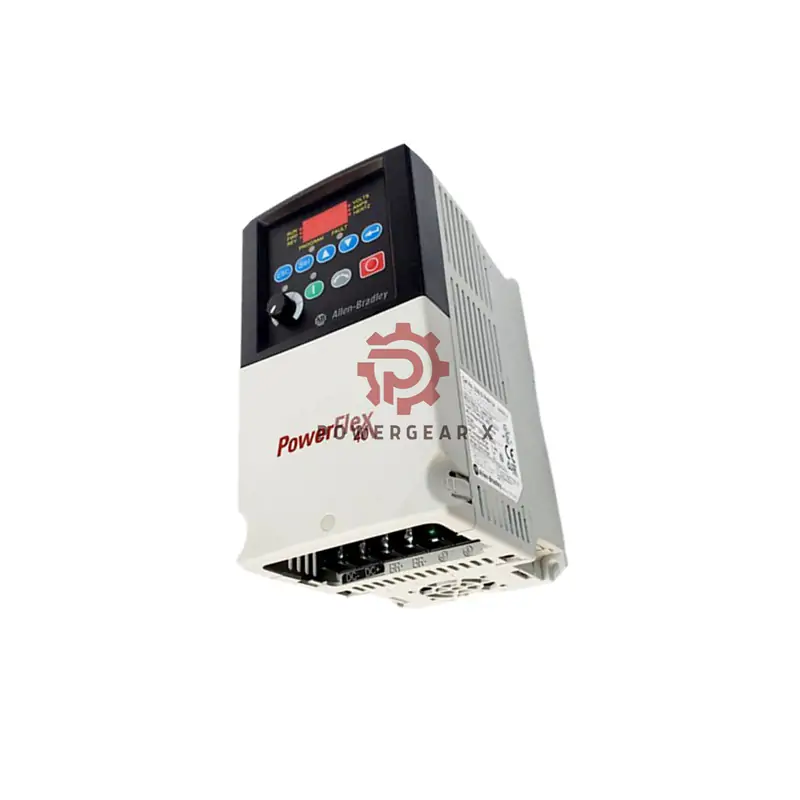

Allen-Bradley 22B-D2P3H204: Compact 1HP Drive
Space-saving motor control solution. 480V 3-phase input. Easy setup under 1 hour. Ideal for OEM applications. Sensorless vector technology.
Technical Specifications
- Drive Identification
- Model: 22B-D2P3H204
- Series: PowerFlex 40
- Brand: Allen-Bradley
- Power Details
- Input: 342-528V AC (480V nominal)
- Output: 1 HP (0.75 kW)
- Current: 2.3 Amps
- Fuse Rating: 6 Amps required
- Compact Design
- Enclosure: IP20 (NEMA Open)
- Heatsink: Not included
- Power Dissipation: 40 Watts
- Mounting: Replacement plate drive
- Control Features
- Keypad: Fixed programming interface
- Analog Input: 0-10V isolated
- Logic: 24V DC sink/source
- Protection: MOV transient line protection
Order & Support
- Warranty: 12-month coverage
- Global Shipping: FedEx, UPS, DHL
- Certifications: UL, CE compliant
- Comms: RS-485 included
Technical FAQs
- Q: What’s the voltage range?
A: Works from 342V to 528V AC - Q: Does it need external cooling?
A: No, designed for 40W dissipation - Q: Can it handle low-speed applications?
A: Yes, with sensorless vector control - Q: What control inputs are available?
A: Isolated 0-10V analog input - Q: Is it suitable for PID control?
A: Yes, analog input works with PID
Installation Resources
Download complete setup guide:
Package Contents: 22B-D2P3H204 Drive Unit, Keypad, Mounting Plate.
There are no reviews yet.
