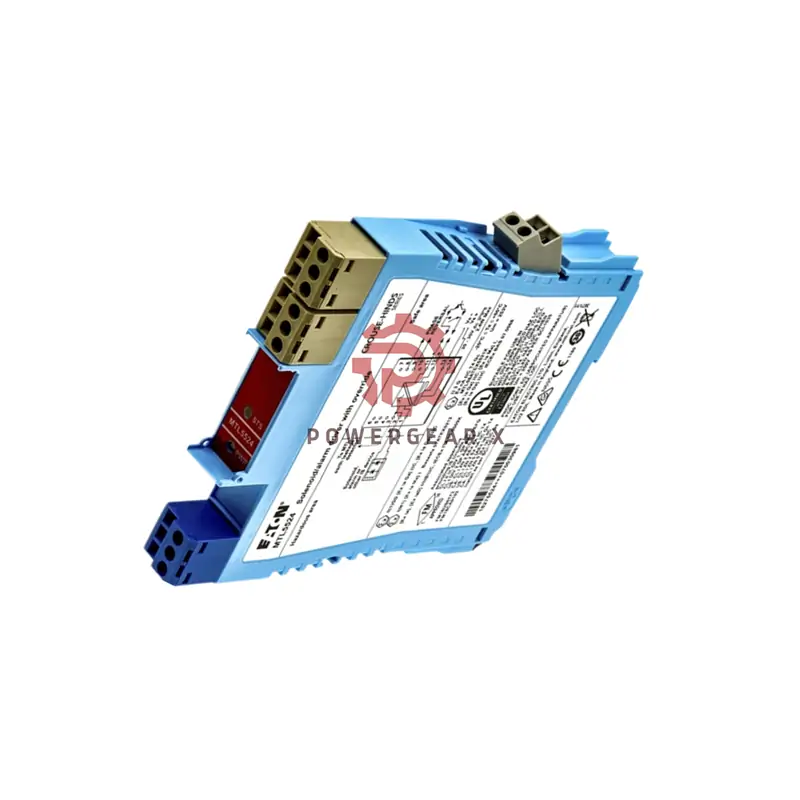

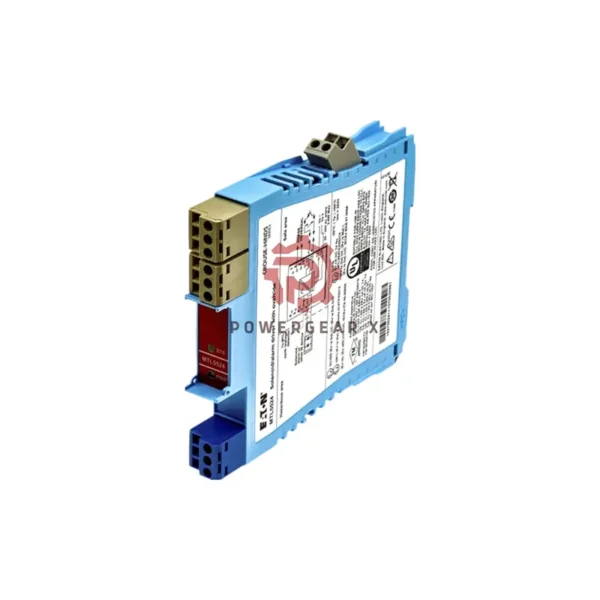

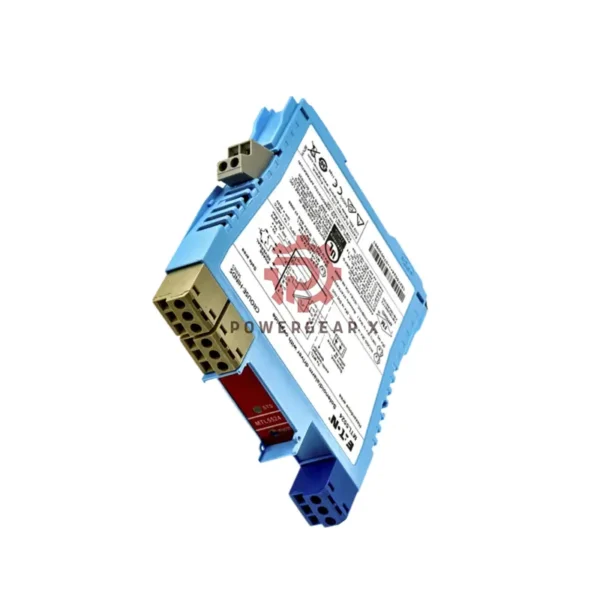

MTL5524 Hazardous Area Controller – Safe On/Off Device Control

MTL5524 Safety Controller – Reliable Hazardous Area Switching

Safe Control Made Simple

• One-channel control for explosive areas
• Works with solenoids, alarms, and LEDs
• Fast 100ms response time
• Easy phase reversal with simple jumper
• 12-month worry-free warranty

Technical Specifications

• Output Power: 24V max (180Ω)
• Current Limit: 48mA minimum
• Input Signal: 0V-1.4V (on), >4.5V (off)
• Ripple: <0.5% peak-to-peak
• Power Use: 100mA at 24V
• Safety Rating: 25V, 147mA, 0.92W

What You Receive

• 1x MTL5524 controller
• Installation guide
• 12-month warranty document

Fast Global Shipping

• FedEx Express: 2-3 days
• UPS Worldwide: 3-5 days
• DHL Express: 1-4 days

Technical Questions Answered

• Q: What’s the maximum cable length?
  A: Up to 100m with proper cabling
• Q: Can I parallel two units for more current?
  A: No, use MTL5526 for higher current
• Q: Does it work with AC inputs?
  A: No, DC signals only (0-24V)
• Q: Is external protection needed?
  A: Only for inductive loads
• Q: How to reverse the output phase?
  A: Connect pins 8 and 9 with jumper
