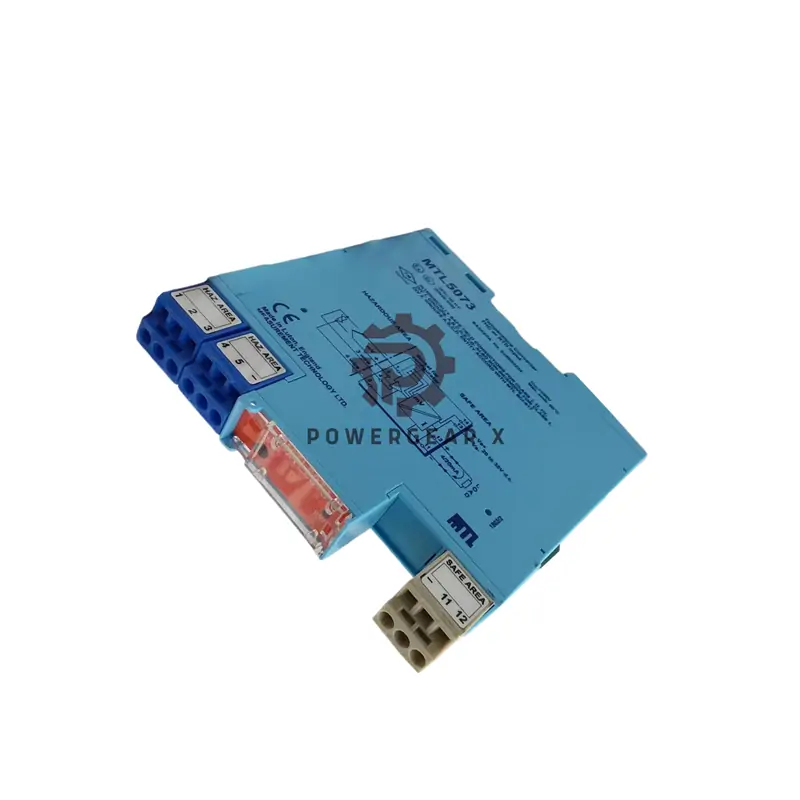

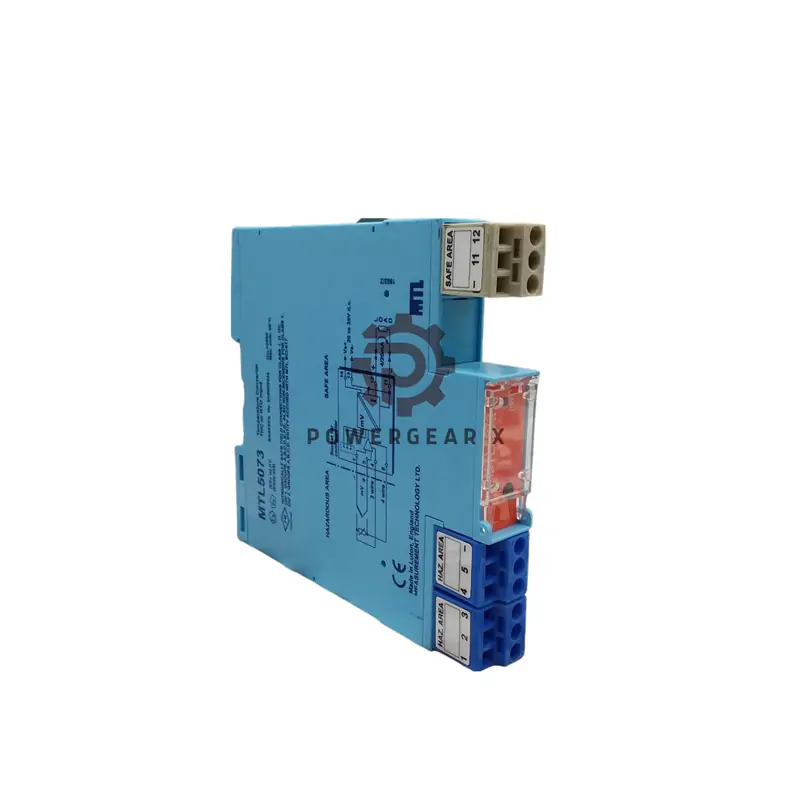

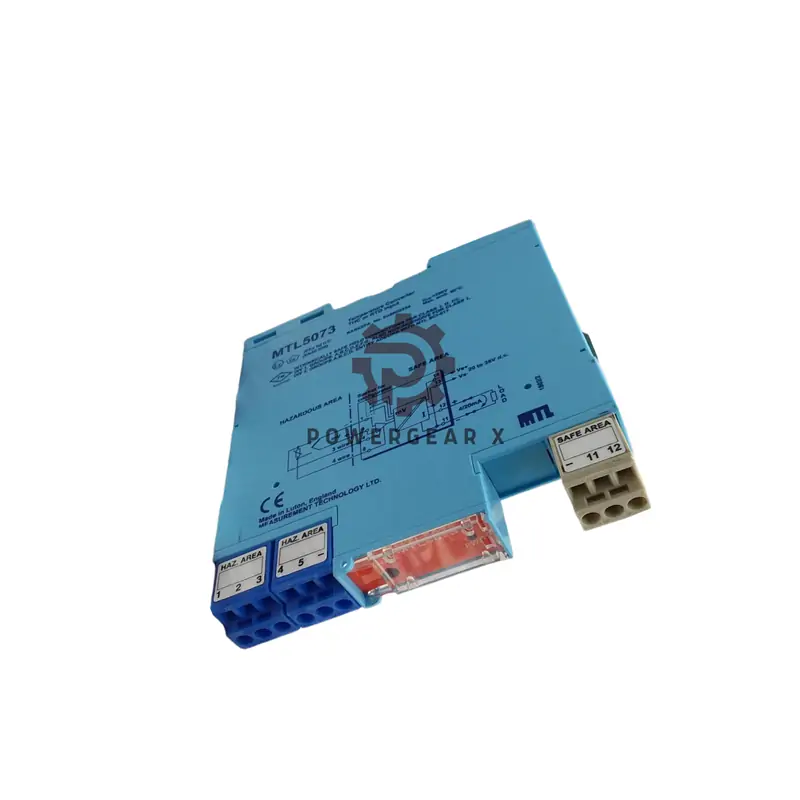

MTL5073 Temperature Converter: Universal Sensor Interface

Technical Specifications

• Brand: MTL
• Model: MTL5073
• Input Compatibility:
  • Thermocouples: J/K/T/E/R/S/B/N
  • RTDs: 2/3/4-wire platinum
  • Voltage range: ±50mV
• Output Signal:
  • 4-20mA isolated
  • Load capacity: 600Ω
  • Accuracy: ±0.1% FSR
• Isolation:
  • 1500V AC between ports
  • 3-way separation
• Environmental:
  • Operating temp: -20°C to +60°C
  • Humidity: 5-95% non-condensing
  • EMC immunity: 10V/m

Terminal Functions

• 1: Sensor -ve (THC/RTD)
• 3: Sensor +ve (THC)
• 4: RTD sense -ve
• 5: RTD sense +ve
• 11: Output -ve
• 12: Output +ve
• 13: Power -ve
• 14: Power +ve

Package & Support

• 12-month warranty
• Global shipping: FedEx, UPS, DHL
• Includes DIN rail clip
• Quick-start card

Technical FAQs

• Q: Minimum RTD cable length?
  A: No minimum, 300m maximum
• Q: Power supply requirements?
  A: 18-35V DC, 25mA typical
• Q: Response time for changes?
  A: 250ms step response
• Q: Overvoltage protection?
  A: 45V surge protection
• Q: Configurable output range?
  A: Fixed 4-20mA linear output
