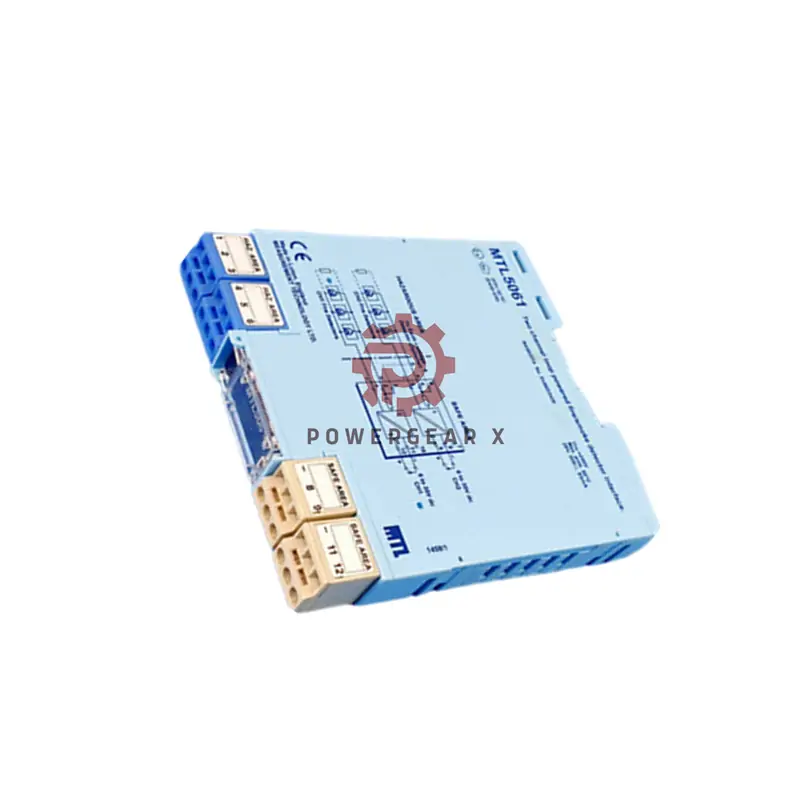

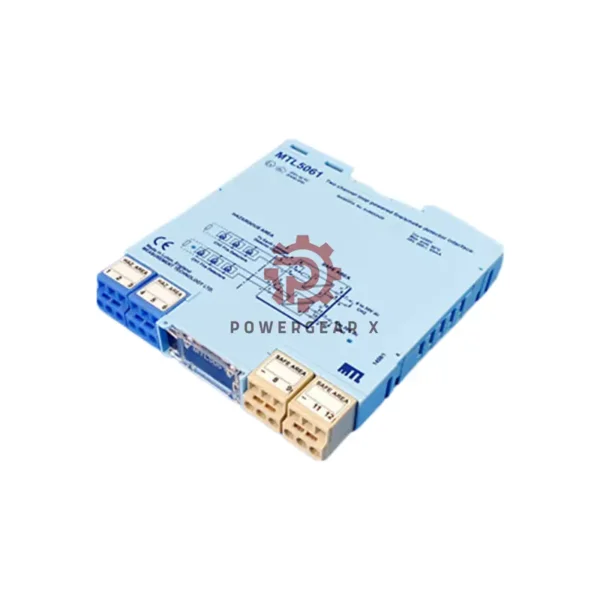

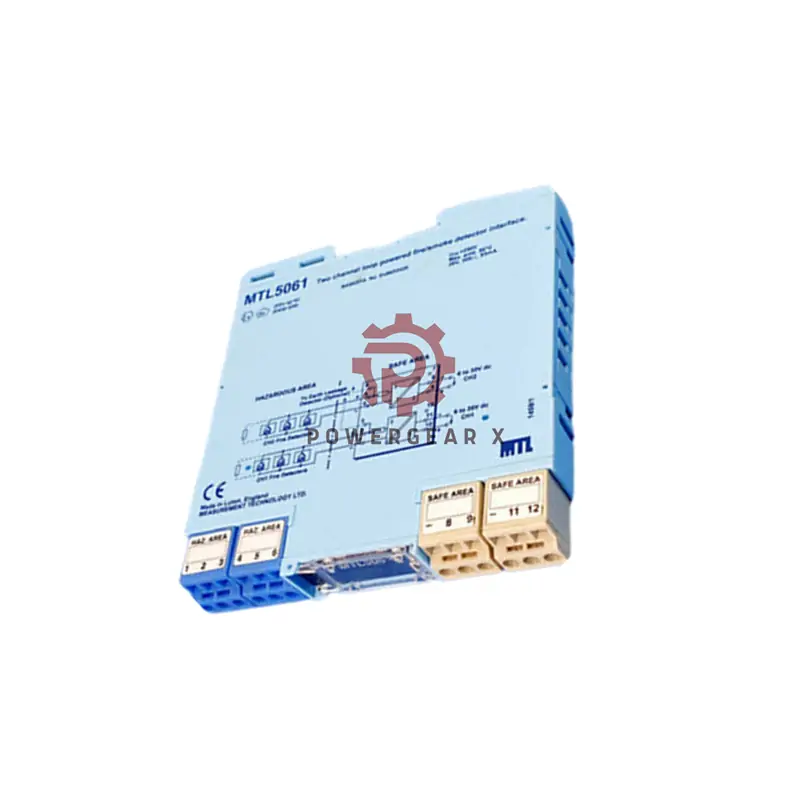

MTL5061 Loop-Powered Dual-Channel Interface – Reliable Hazardous Area Protection

Technical Specifications

• Brand: MTL
• Model: 5061
  • Series: 5000
  • Type: Loop-Powered Interface
  • Variant: Dual-Channel
• Current Range: 1-40mA nominal
• Response Time: 30ms to settle
• Accuracy: Better than 400μA at 20°C
• Temperature Stability: ±10μA/°C (-20 to 60°C)
• Output Voltage: Max 28V from 300Ω
• Power Supply: 6-35V DC
• Power Consumption: 0.7W@24V per channel

Certifications

• ATEX/IECEx Zone 0 certified
• Division 1, Group A compliant
• CE marked

Package Contents

• MTL5061 interface unit
• Installation guide
• 12-month warranty

Shipping Information

• Available via FedEx, UPS, DHL
• Express shipping options
• Worldwide delivery

FAQ

• Q: Is external power required?
  A: No, loop-powered from 6-35V DC
• Q: How to detect earth faults?
  A: Connect MTL4220 to terminals 3/6
• Q: Can it operate in high temperatures?
  A: Yes, rated for -20°C to +60°C
