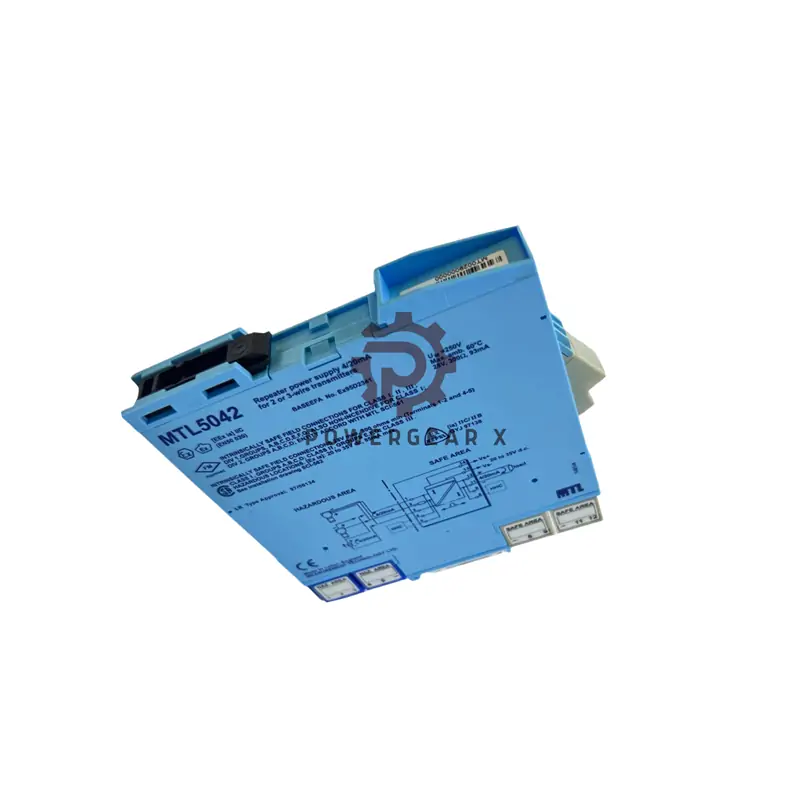

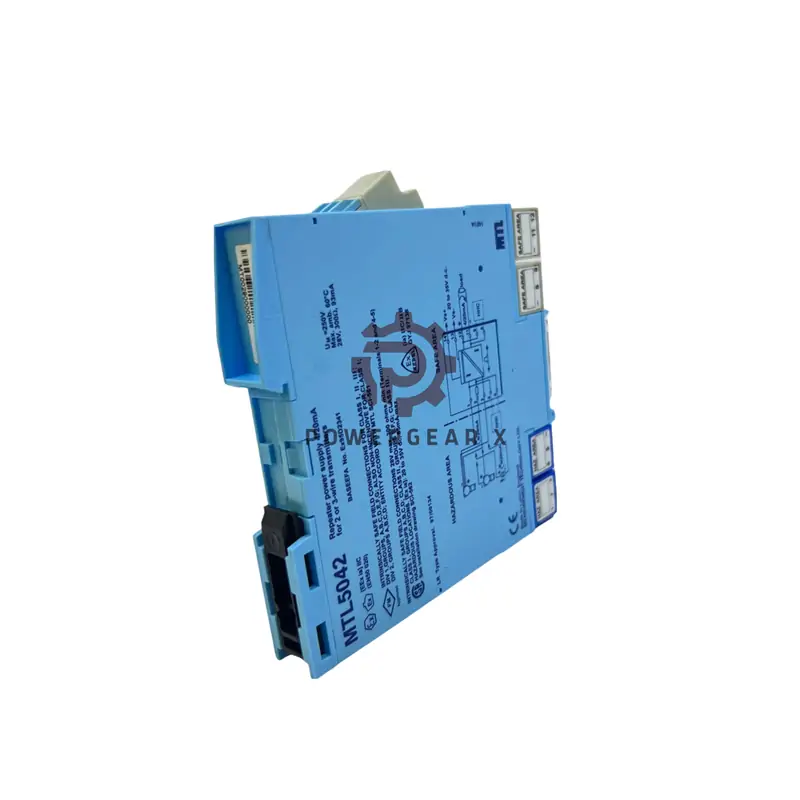

MTL5042 Hazardous Area Signal Conditioner: Intrinsically Safe 4-20mA Repeater with Smart Comms Support

Product Description

The MTL5042 powers 2/3-wire 4-20mA transmitters in Zone 0 explosive areas (IIC/Div.1 certified). It duplicates currents to safe areas while enabling bidigital HART®, Honeywell DE, Foxboro, and Yokogawa Brain communications. Perfect for oil/gas and chemical plants requiring hazardous area safety.

Core Features

• Explosion-proof: Zone 0, IIC, T4-T6 certified
• Smart compatible: HART® & major protocol support
• Ultra-fast: 40μs response time
• Self-diagnostic: Loop continuity monitoring

Technical Specifications

• Brand/Model: MTL5042
  • Hazardous Connector: HAZ4-6
  • Safe Connector: SAF7-9
• Measurement Range: 0-24mA input → 4-20mA output
• Frequency Response: 10Hz-12kHz (digital signals)
• Accuracy: ±10μA at 20°C (±0.05% FS)
• Resolution: <40μA peak-peak ripple
• Temp Range: -20°C to +70°C (0.5μA/°C drift)
• Environment: IP20, 0-95% humidity
• Noise Immunity: >2MΩ output isolation

Installation & Compatibility

• Wiring: DIN-rail mount with screw terminals
• Transmitters: All 2-wire 4-20mA/HART® devices
• Load Capacity: 0-600Ω safe-area loads

Certifications

• ATEX/IECEx (Zone 0)
• UL/cUL Class I Div 1
• Um = 250V AC/DC

Package Includes

• MTL5042 unit
• 12-month warranty

Shipping & Support

• Delivery: FedEx/UPS/DHL (2-5 days globally)
• Diagnostics: Green power LED indicator
• Maintenance: Tool-free calibration

FAQ

• Q: Maximum safe-area load?
  A: 600Ω
• Q: Supports Foundation Fieldbus?
  A: HART®/DE/Brain only
• Q: Power requirements?
  A: 20-35V DC (75mA@24V)
