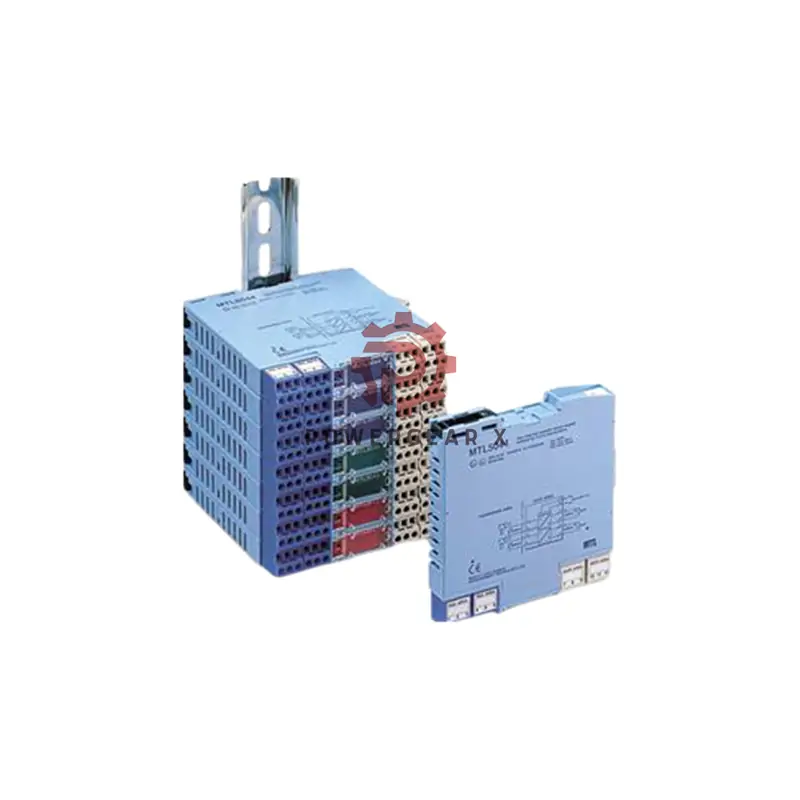

MTL5040 Hazardous Area Signal Conditioner: Precision 4-20mA Isolation

This dual-channel safety barrier transfers 4-20mA signals between explosive areas (Zone 0/Div 1) and safe zones. It powers transmitters in hazardous locations while repeating signals with ±20μA accuracy. Essential for oil/gas, chemical plants, and industrial automation.

Complete Technical Specifications

Brand: MTL | Model: 5040 | Type: IS Barrier Repeater

• Measurement Range:
  • Input: 0-24mA (Ch1)
  • Output: 0-24mA (Ch2)
• Accuracy: <20μA @20°C
• Temperature Stability: <1μA/°C
• Max Load: 550Ω (11V@20mA)
• Response Time: 250μs to 90% value
• Power: 20-35V DC
• Isolation: 250V AC between circuits

Installation & Maintenance

• 14-pin terminal wiring
• DIN rail mounting
• No routine maintenance required

Global Certifications

• ATEX: IIC T4-T6 (Zone 0)
• UL: Group A (Div 1)
• Safety: 28V/93mA/300Ω

Package Contents

• MTL5040 unit
• 12-month warranty
• Global shipping: FedEx/UPS/DHL

Industry Applications

• Flammable gas monitoring
• Chemical tank level control
• Explosive environment automation

Diagnostic Solutions

• LED Status: Green = power active
• No Signal? Verify terminal connections
• 3-wire compatible? Yes when 2-wire configured

Why professionals choose MTL5040: Ensures intrinsic safety in explosive environments with <0.1% signal error. Ships same-day with tracking.
