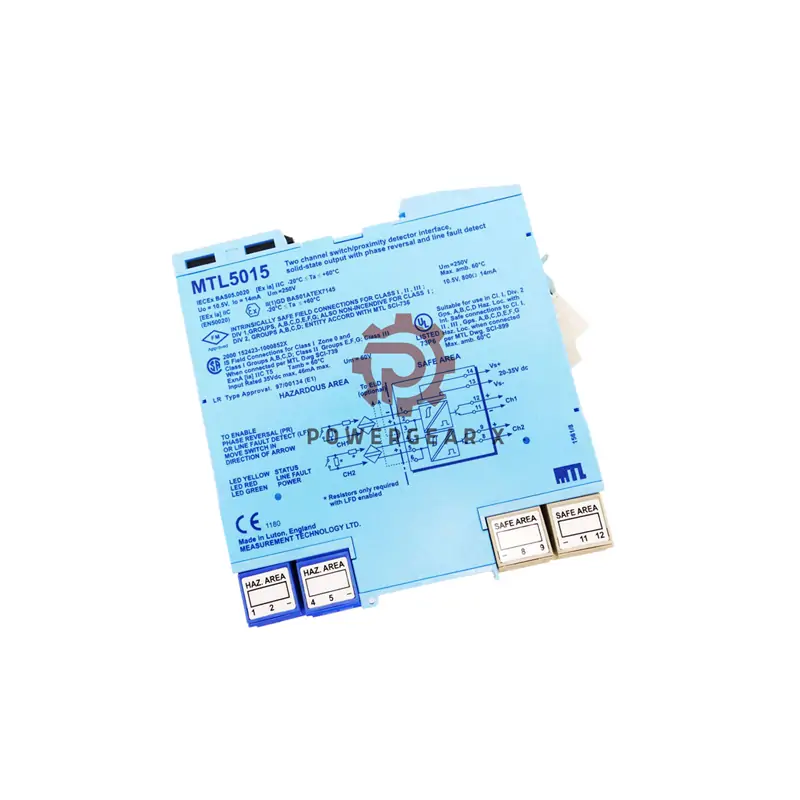

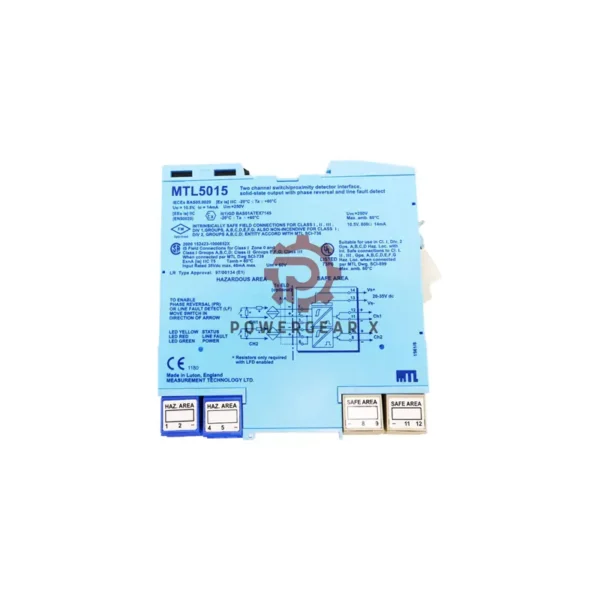

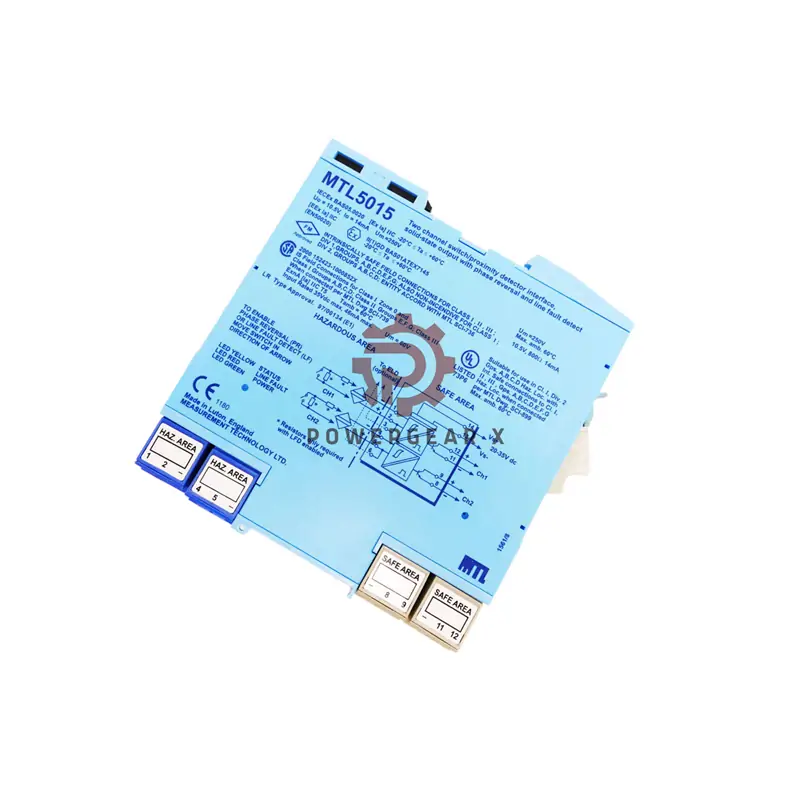

MTL5015 Hazardous Area Interface: Dual-Channel Isolator

MTL5015 Advanced Dual-Channel Interface Isolator: Safe Control in Explosive Zones

Description

Control solid-state outputs safely from hazardous areas with the MTL5015. This isolator lets you operate two switches/proximity detectors in Zone 0/IIC/T6 or Div 1/Group A locations while managing outputs in safe areas. Independent line fault detection and phase reversal ensure reliable performance.

Technical Data

• Brand/Model: MTL5015 Series
• Input Current Thresholds:
  ON >2.1mA |
  OFF <1.2mA
• LFD Triggers:
  Open-circuit <50µA |
  Short-circuit <100Ω
• Output Capacity:
  50mA max |
  5kHz frequency
• Isolation: 250V AC/DC between circuits
• Power: 24V DC (20-35V range)
• Certifications: ATEX/IECEx Zone 0, UL Div 1

Diagnostics & Maintenance

• Tri-color LEDs:
  Green (power),
  Yellow (output status),
  Red (LFD alarms)
• Auto-shutdown on line faults
• Tool-free calibration via phase reversal selection

Packaging & Support

• Includes isolator unit, datasheet
• 12-month warranty against defects
• Global shipping: FedEx, UPS, DHL

FAQ

• Q: Can I use mechanical switches?
  A: Yes, with specified resistors for LFD compatibility.
• Q: Operating temperature range?
  A: Standard industrial -20°C to +60°C (consult for extremes).
• Q: Certifications included?
  A: Yes, ATEX, IECEx, UL Class I Div 1.
