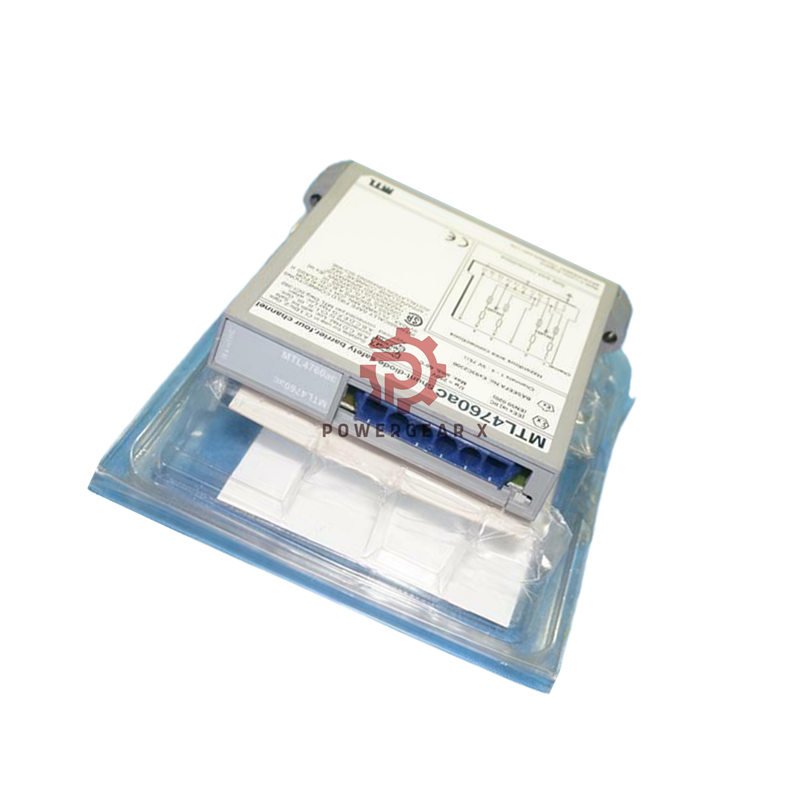

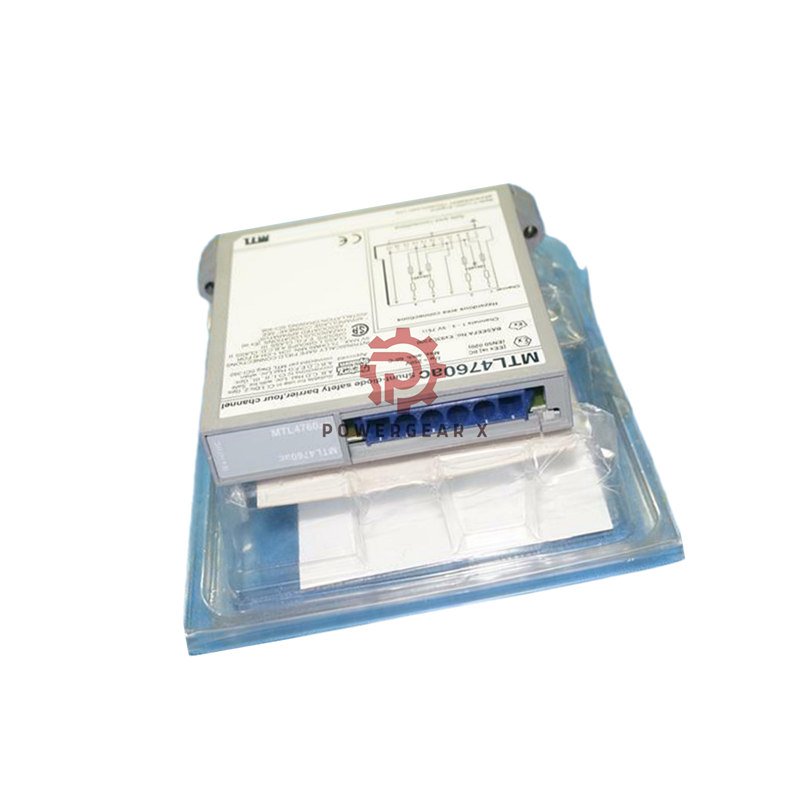

MTL4760ac Twin AC Barrier: Dual-Channel Safety for Sensors & RTDs
Technical Specifications
- Brand/Series: MTL 4000 Series Barriers
- Model: MTL4760ac
- Channels: 4 fully isolated channels
- Safety Rating: 9V, 75Ω, 120mA
- Max Resistance: 95Ω end-to-end
- Voltage Range: Vwkg 7.0V (at 10µA) – Vmax 7.6V
- Fuse Protection: 50mA rated fuse
- Power Handling: 0.27W matched power
- Signal Compatibility: THCs, AC sensors, 4-wire RTDs
- Hazardous Area Cert: Group IIC (BASEFFA), Groups A&B (FM)
Cable Safety Limits
- Group IIC (BASEFFA):
– Channel 1: 4.5µF / 0.65mH
– Channel 2: 4.5µF / 9.8mH
– Channel 4: 0.42µF / 0.45mH - FM Groups A&B:
– Channel 1: 5.28µF / 0.7mH
– Channel 3: 0.46µF / 0.11mH
Installation Guide
- Wiring: Dedicated channels per sensor type
- Power Rules: Independent power only (no bus sharing)
- Sensor Limits:
– Max 2 THCs/AC sensors
– Max 1 four-wire RTD
Package & Support
- Contents: MTL4760ac barrier, installation guide
- Warranty: 12-month quality guarantee
- Shipping: FedEx, UPS, DHL options available
Compare Similar Products
Expert FAQs
- Q: Can I power multiple RTDs with one MTL4760ac?
A: No – each 4-wire RTD requires its own barrier module - Q: What happens if I exceed 95Ω resistance?
A: Signal accuracy degrades and safety certification becomes invalid - Q: Is this compatible with 3-wire RTDs?
A: No – designed specifically for 4-wire RTD configurations - Q: Can I use DC sensors with this barrier?
A: No – optimized for AC signals only - Q: What replacement fuse should I use?
A: Only 50mA rated fuses to maintain safety certification
Secure your sensor networks: The MTL4760ac delivers precision isolation for AC signals in high-risk environments!
