MTL4524 Hazardous Area Control Interface | Dual-Input Safety

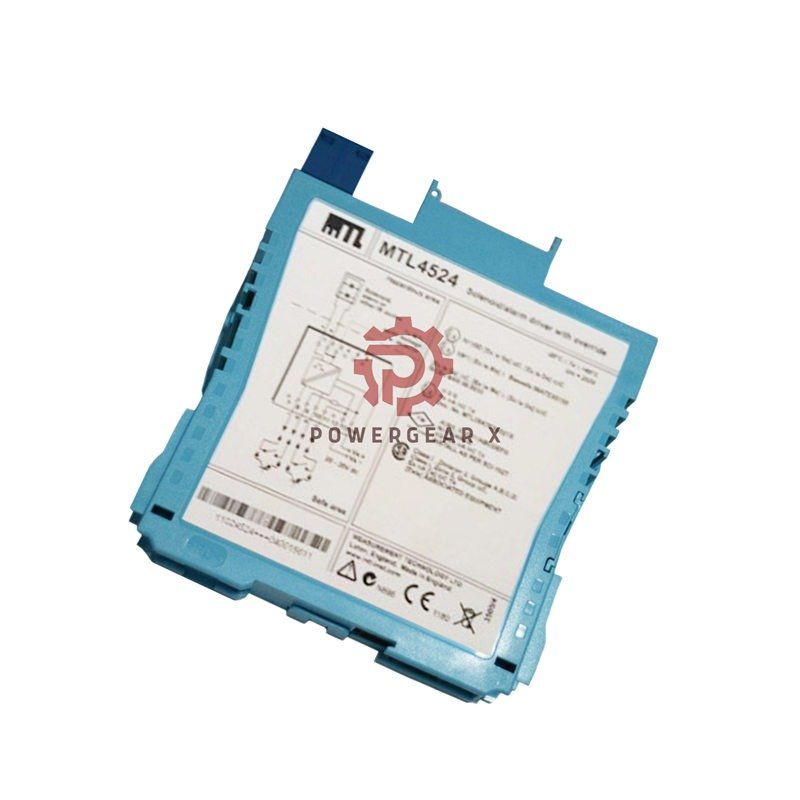

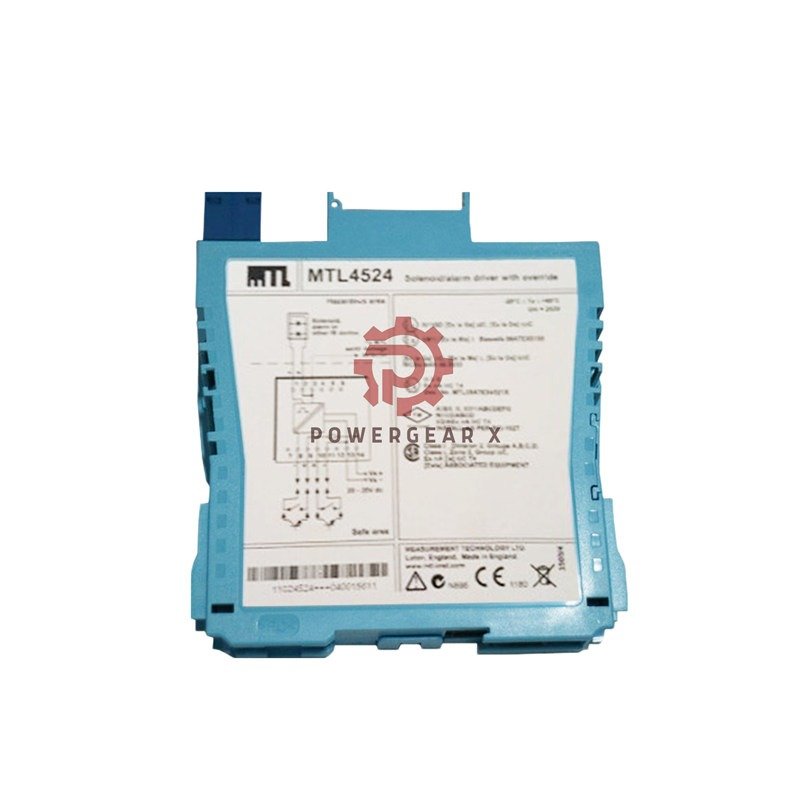

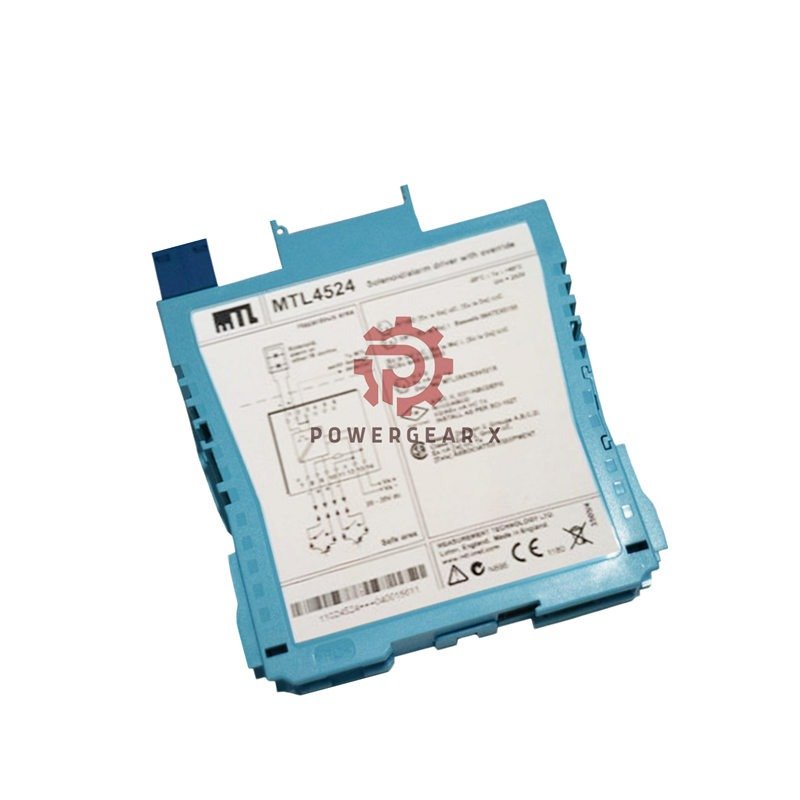

Eaton MTL Series MTL4524: Ultimate Hazardous Area Control Interface

Product Description

Control hazardous area devices (Zone 0/Div1) safely from non-hazardous locations. This isolator drives solenoids, alarms, and LEDs using intrinsically safe or simple apparatus. Features dual-input control with safety override capability.

Technical Specifications

• Brand/Series: Eaton MTL Series
• Model: MTL4524 (Full suffix: MTL4524-1)
• Output Range: 13.6-24V DC @ 48mA min
• Input Compatibility:
  • Switch contacts
  • Open-collector transistors
  • Logic signals (1.4V=ON, 4.5V=OFF)
• Temperature Range: -20°C to +60°C
• Protection: IP20 enclosure rating

Installation Guide

• Mount in safe area (Zone 2/Div 2 or non-hazardous)
• Use 18-24AWG wiring for connections
• Verify intrinsic safety barriers when used with Zone 0

Diagnostics & Maintenance

• LED Indicators:
  • Green: Power ON
  • Yellow: Output active
• No routine maintenance required

Package Includes

• MTL4524 unit
• Installation manual
• 12-month warranty

Shipping Options

• FedEx International Priority
• UPS Worldwide Express
• DHL Express Worldwide

Frequently Asked Questions

• Can it control multiple devices?
  No, single-channel only (use multiple units for multi-device control)
• Is it suitable for hydrogen environments?
  Yes, IIC certification covers hydrogen
• What’s the maximum cable length?
  100m with 24AWG cable (intrinsic safety parameters apply)
