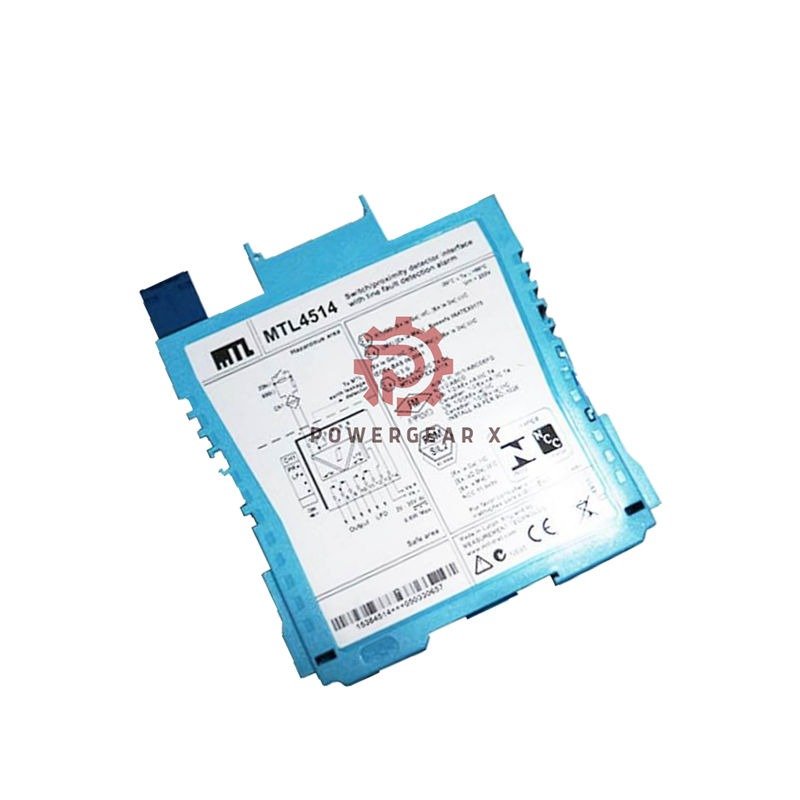

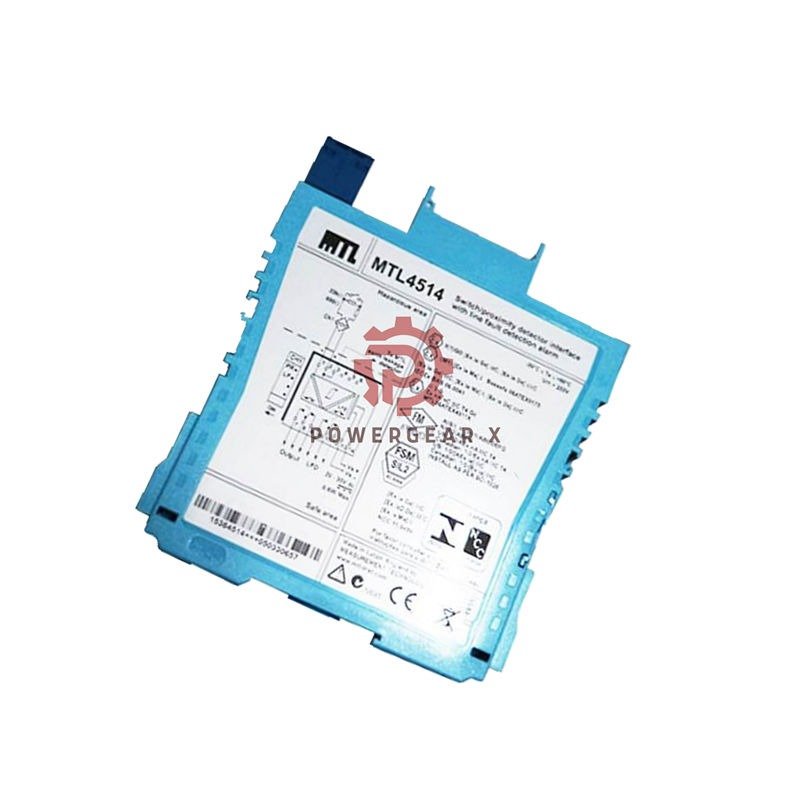

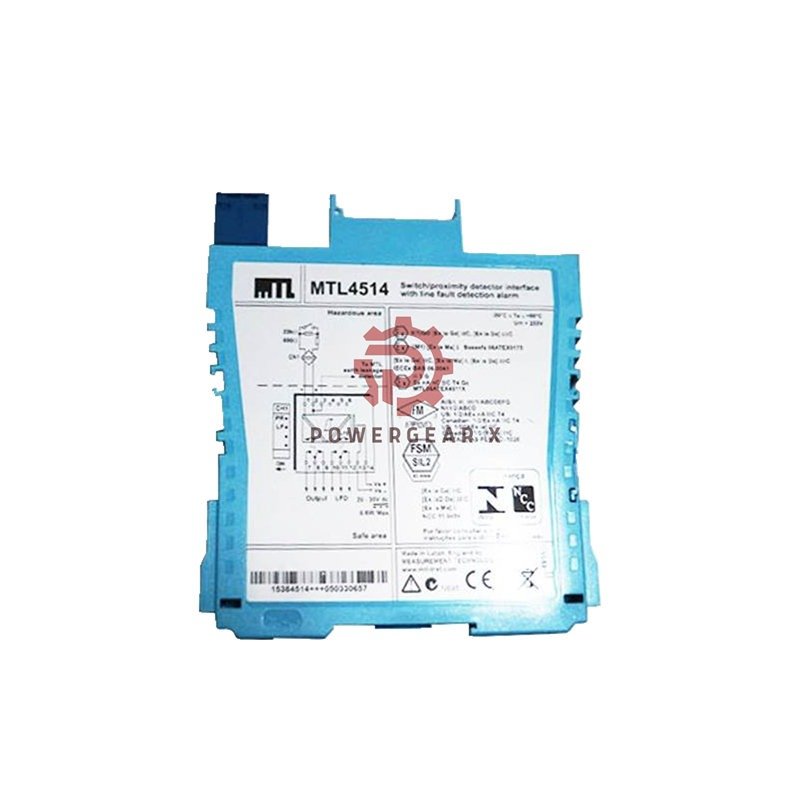

MTL4514: Safe-Zone Relay Controller for Hazardous Areas

Technical Specs

• Input Voltage: 7-9V DC (1kΩ ±10%)
• Relay Output: 10W, 0.5A, 35V DC (Zone 2 safe)
• Line Fault Detection:
  • Open-circuit: <50µA (alarm on), >250µA (off)
  • Short-circuit: <100Ω (alarm on), >360Ω (off)
• Power: 24V DC (0.6W consumption)
• Certifications: ATEX, IECEx, UL/cUL

Relay Performance

• 10ms max switching time
• Changeover contacts for flexible wiring
• Dual relays: 1 for load control, 1 for fault alerts

Safety & Indicators

• Uo=10.5V, Io=14mA, Po=37mW (intrinsic safety)
• LEDs:
  • Green = Power
  • Yellow = Relay active
  • Red = Line fault detected

FAQ

• Q: Can MTL4514 work with mechanical switches?
  A: Yes, but add 500Ω-1kΩ series and 20kΩ-25kΩ parallel resistors for LFD.
• Q: Max cable length for sensors?
  A: Depends on resistance—keep under 600Ω total.
• Q: Is phase reversal protection standard?
  A: Yes, selectable via onboard switch.
• Q: Relay lifespan?
  A: 100,000+ cycles at rated load.
• Q: Operating temperature range?
  A: -20°C to +60°C (T6 rated).

Shipping & Support

• 12-month warranty
• Global delivery via FedEx, UPS, DHL
• Includes: Unit, manual, DIN-rail clips
