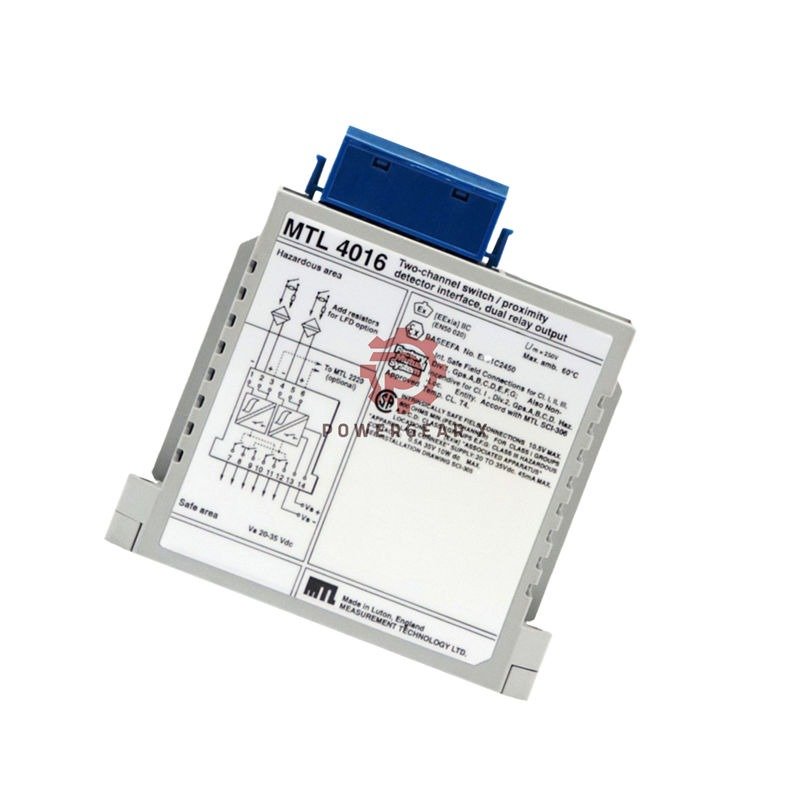

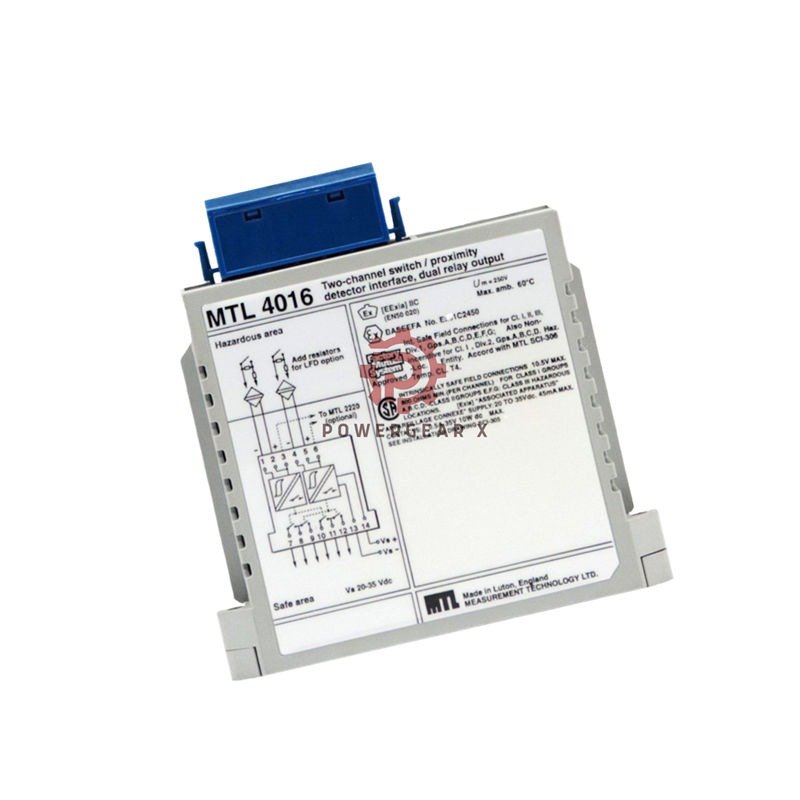

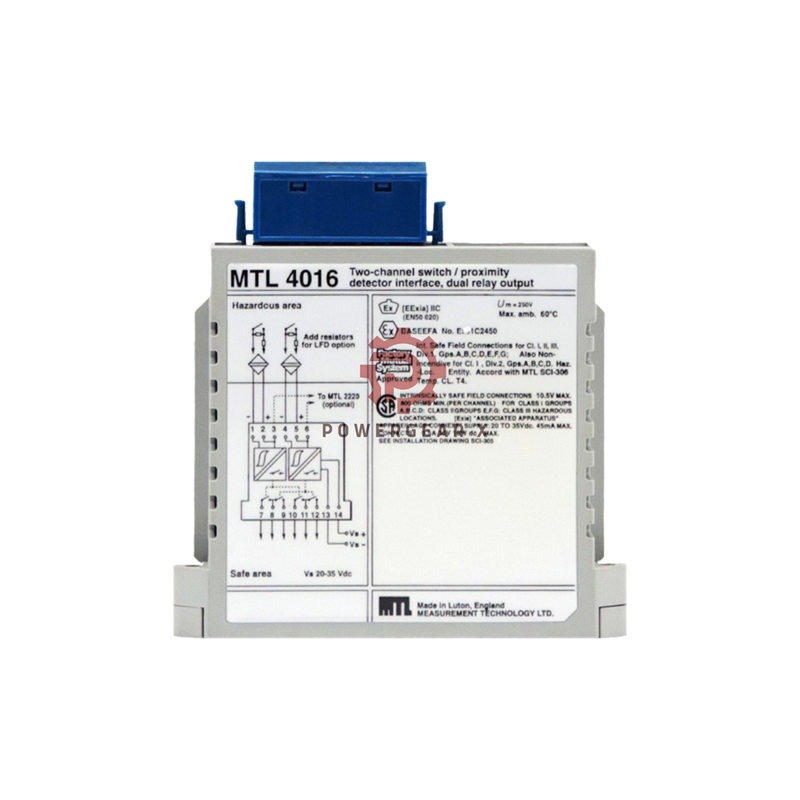

MTL4016 Dual-Channel Relay Isolator – Control 2 Loads

MTL4016 Dual Relay Isolator: Double Control for Hazardous Area Sensors

Key Technical Specs

• Brand/Series: MTL 4000 Safety Barriers
• Model: MTL4016
• Channels: 2 independent sensor inputs
• Outputs: 4 reed relays (2 per channel)
• Sensor Voltage: 7.0-9.0V DC via 1kΩ resistor
• Trigger Thresholds:
  – Active: >2.1mA (<2kΩ)
  – Inactive: <1.2mA (>10kΩ)
• Response Time: 2ms max relay switching
• Relay Rating: 10W / 0.5A / 35V DC
• Environmental: Zone 0, IIC T6 / Div 1 Group A

Safety & Protection

• Phase-Reversal Switches: Change alarm logic per channel
• Earth Fault Protection: Works with MTL4220 detectors
• FM Certification: Voc=10.5V, Isc=14mA, Ca=2.4µF, La=165mH
• Isolation: 250V AC between safe/hazardous areas

Installation Features

• Terminal Functions:
  – 1-2: Sensor 1 ±
  – 4-5: Sensor 2 ±
  – 7-12: Relay outputs
  – 13-14: Power ±
• Visual Indicators: Top-mounted LEDs for instant diagnostics
• Wiring Protection: Resistors prevent false LFD triggers

Package & Support

• Contents: MTL4016 unit, installation guide
• Warranty: 12-month guarantee
• Shipping: FedEx, UPS, DHL express options

Compare Alternatives

• MTL4511: Basic relay with LFD
• MTL4514: Fast 10ms response relay

Expert FAQs

• Q: Can I connect AC sensors?
  A: No – designed for DC switches/proximity detectors only
• Q: What’s the relay lifespan?
  A: 1 million operations at maximum load
• Q: How many MTL4220 detectors needed?
  A: Two – one per channel to maintain isolation
• Q: Can I disable LFD completely?
  A: Yes – via top-mounted configuration switches
• Q: Maximum cable length?
  A: Depends on resistance – keep below 800Ω per channel

Need redundant control? The MTL4016 delivers dual failsafe outputs per hazardous sensor!
