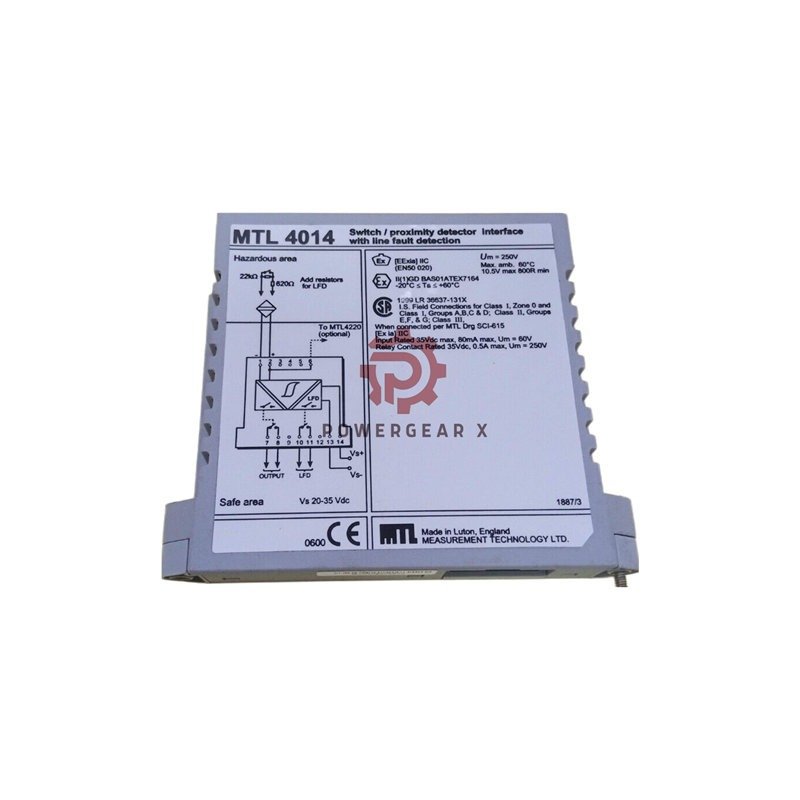

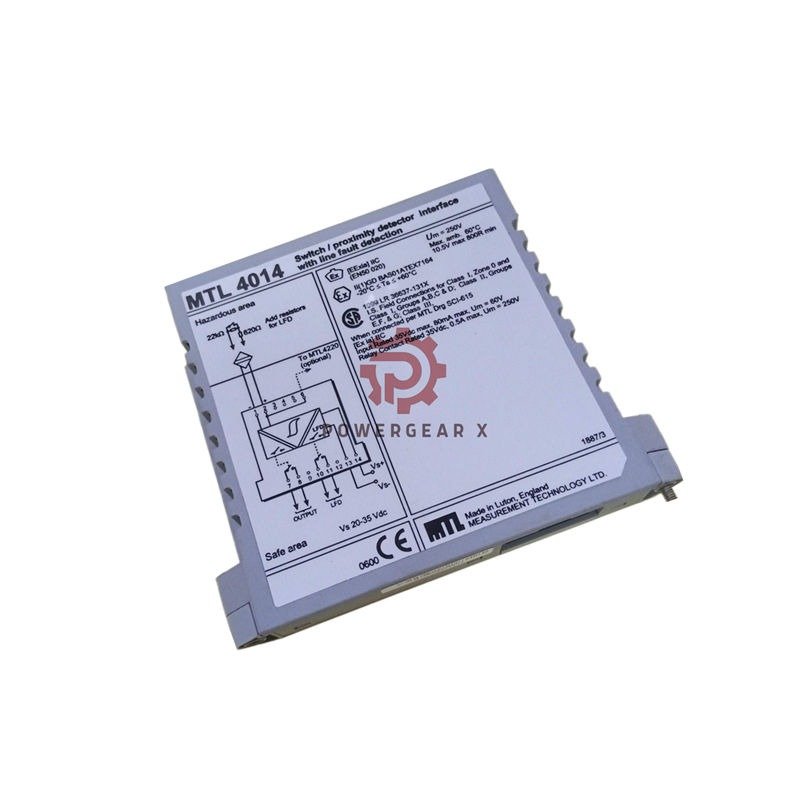

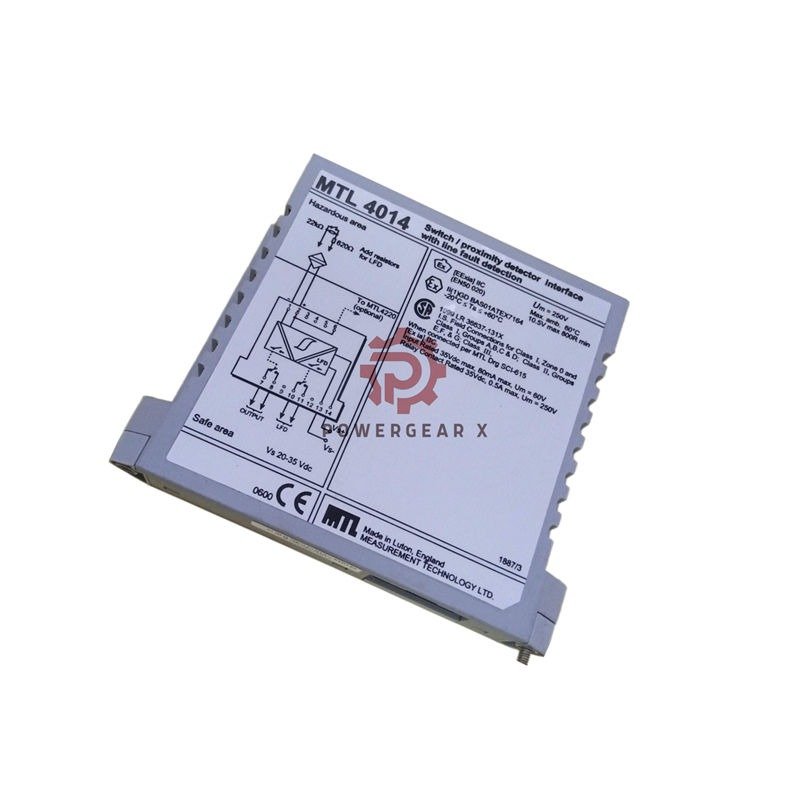

MTL4014 Hazardous Area Safety Relay – Explosion-Proof Control Solution

Technical Specifications

• Brand: MTL | Model: MTL4014
• Input Voltage: 20-35V DC (7-9V to sensor)
• Response Time: <2ms | Contact Rating: 0.5A/35V DC
• Detection Threshold:
  • Activates at >2.1mA (<2kΩ)
  • Deactivates at <1.2mA (>10kΩ)
• Safety Certifications:
  • ATEX/IECEx Zone 0, IIC, T6
  • FM Div.1, Groups A/B
• Operating Temp: -40°C to +85°C

Maintenance & Diagnostics

• Three-color LED status monitoring:
  • Green = Power ON
  • Amber = Sensor active
  • Red = Line fault detected
• No calibration needed
• Annual contact resistance check

Compatible Equipment

• NAMUR proximity sensors
• Explosion-proof limit switches
• Siemens S7/TIA Portal systems
• Rockwell Allen-Bradley PLCs

Safety Approvals

• ATEX Directive 2014/34/EU
• IECEx IEC 60079-0/11
• FM 3600/3610/3611

Package Contents

• 1x MTL4014 relay module
• Installation manual
• DIN rail clip
• 12-month performance warranty

Global Shipping

• FedEx International Priority (2-3 days)
• UPS Worldwide Express
• DHL Jetline

Comparison

• vs MTL4546Y: 4-20mA HART support but no relay output
• vs MTL4524: Dual-channel but lacks earth fault detection

FAQ

• Q: Can I use regular switches without resistors?
  A: No – switches require external resistors for LFD
• Q: What’s the hysteresis value?
  A: 200μA (650Ω) prevents relay chattering
• Q: Maximum switching frequency?
  A: 250Hz at full contact rating
• Q: Is spark suppression included?
  A: Yes – internal for inductive loads
• Q: Humidity tolerance?
  A: 0-95% non-condensing operation
