Product details

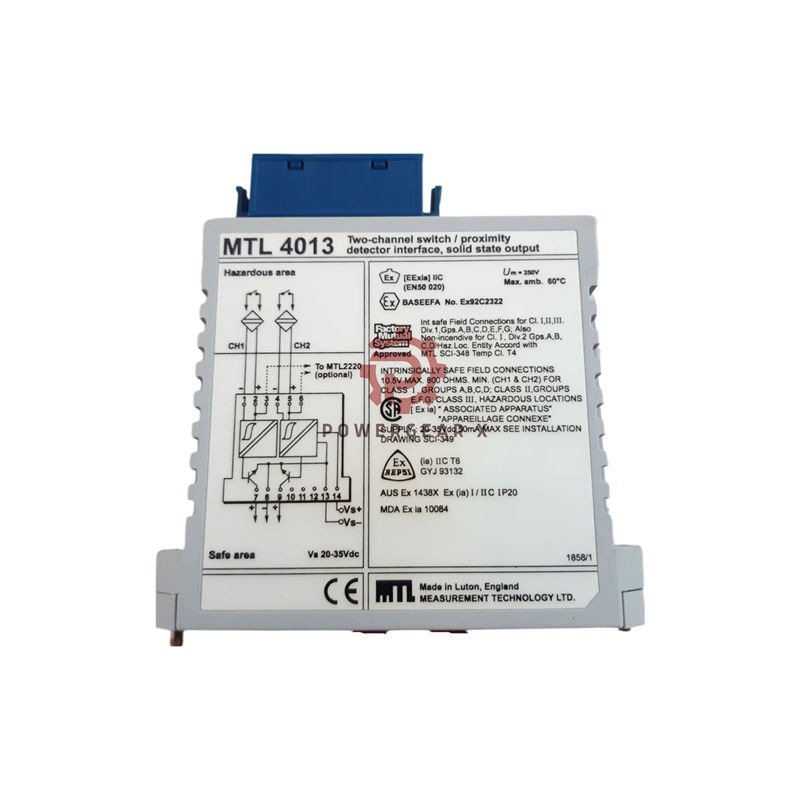

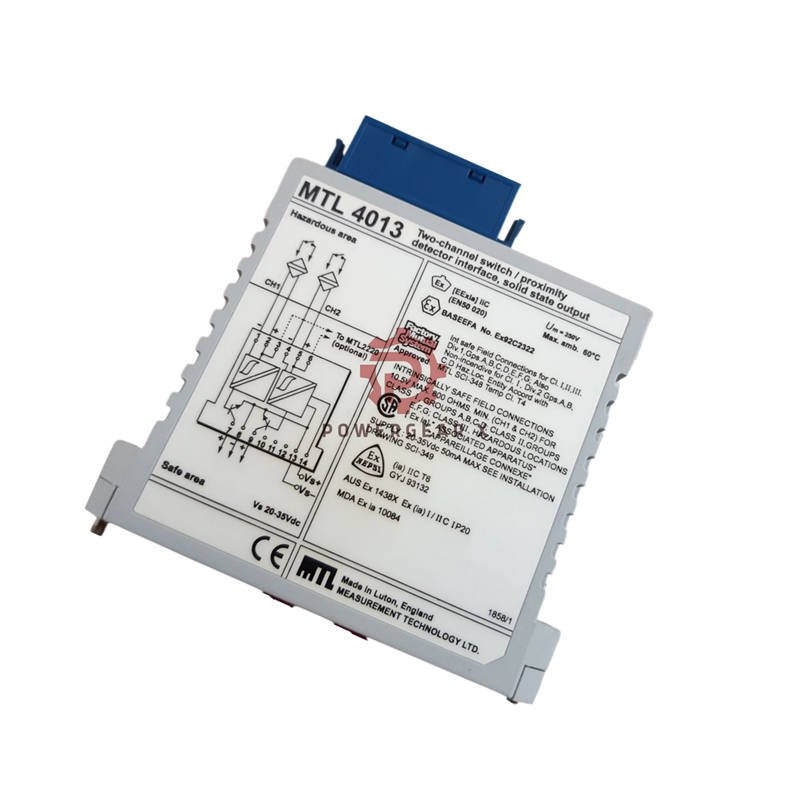

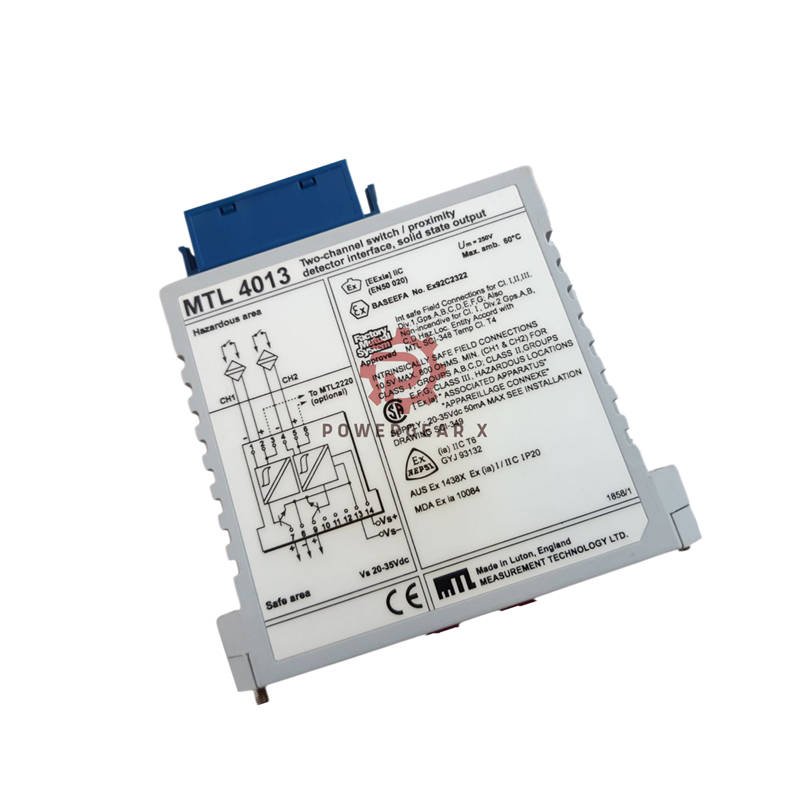

MTL4013 Dual Safety Barrier: Intelligent Hazardous Area Control Solution
Technical Specifications
- Brand/Model: MTL4013
- Sensor Voltage: 7.0-9.0V DC
- Response Speed: DC to 5kHz operation
- Power Efficiency: Only 1.15W at 24V
- Isolation: 250V AC protection barrier
- Output Capacity: 50mA max per channel
- Voltage Tolerance: 35V off-state protection
- Hysteresis: 200µA nominal (650Ω)
- Temp Range: -20°C to +70°C operation
Safety & Certifications
- ATEX/IECEx Zone 0/IIC T6 Certified
- FM Division 1/Group A approval
- 10.5V, 800Ω, 14mA safety parameters
- Zener-diode protection against inductive loads
Expert Questions Answered
- Q: Can it detect multiple earth faults simultaneously?
A: Yes – faults on both channels detected independently - Q: What’s the maximum sensor cable length?
A: Up to 1km with proper shielding (consult manual) - Q: Does it work with 3-wire sensors?
A: Compatible with 2-wire NAMUR sensors only - Q: Can I use it without MTL4220?
A: Yes, but earth fault detection requires MTL4220 - Q: What’s the response time for state changes?
A: Instantaneous – no measurable delay
Package & Support
- 12-month warranty included
- Global shipping: FedEx, UPS, DHL
- Includes: Barrier unit, terminal labels
Performance Comparison
- MTL4013 vs MTL4514: Our barrier offers earth fault detection vs basic relay control
Compare MTL4514 → - MTL4013 vs MTL4641: Specialized switch control vs HART signal conditioning
View MTL4641 specs →
