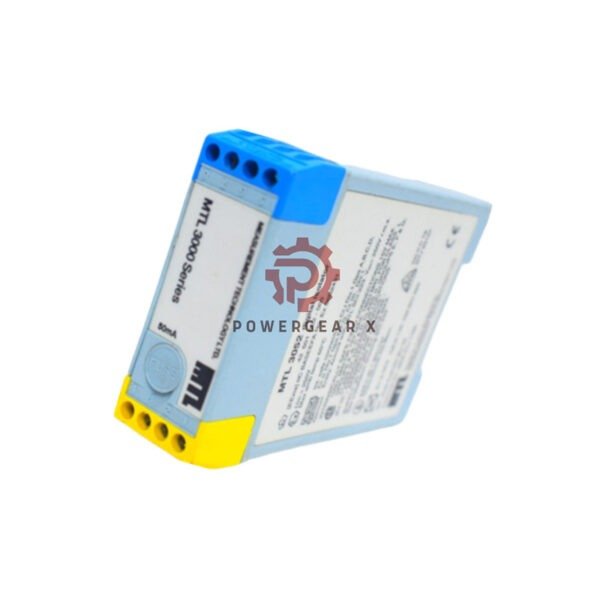

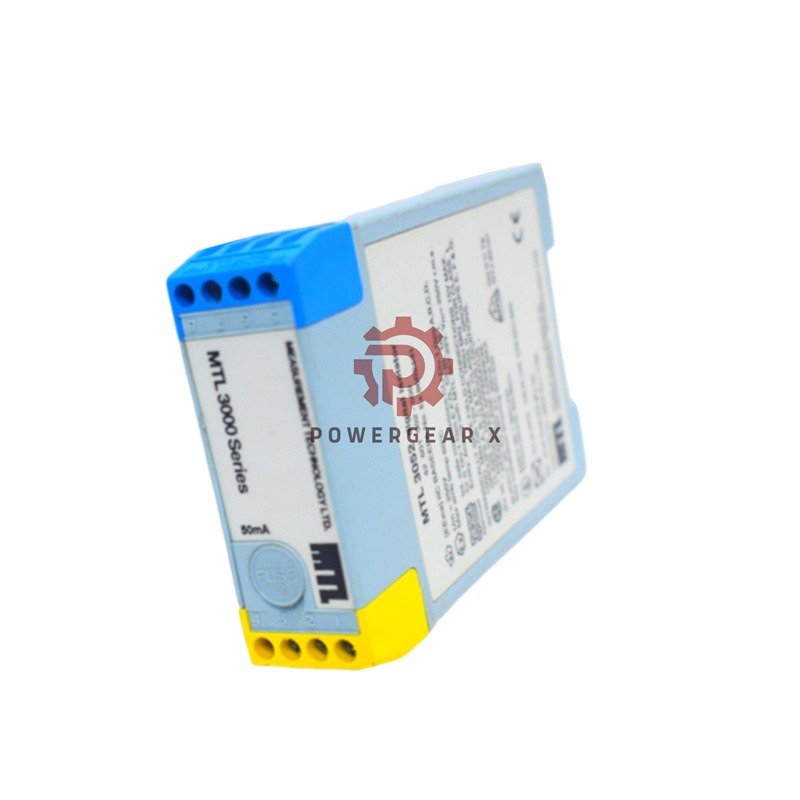

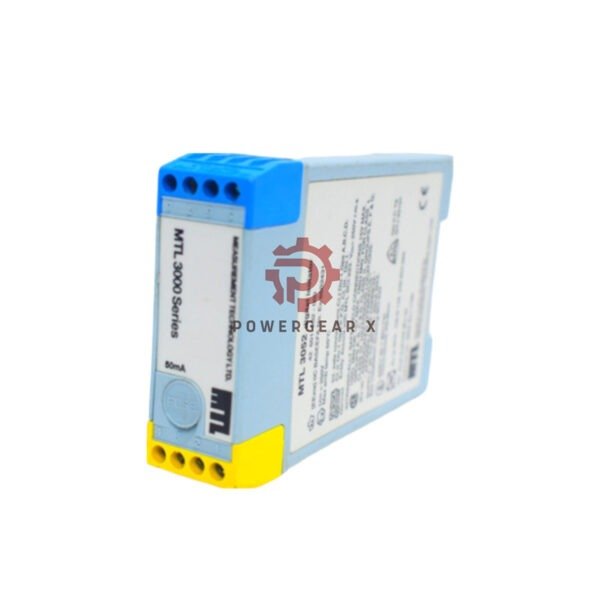

MTL3052 Digital Signal Isolator – High-Speed IS Protection

MTL3052 Digital Isolator – Safe Signal Protection for Hazardous Areas

Key Features

• Dual output options (100Ω or 180Ω circuits)
• Works with digital signals up to 10kHz
• Compact design for MTL800 Series systems
• Easy-to-replace 50mA fuse
• 12-month manufacturer warranty

Technical Specifications

• Input Voltage: 4-12V DC
• Output Options: 15V/100Ω (150mA) or 15V/180Ω (83.3mA)
• Bandwidth: DC to 10kHz
• Ripple: <1mA peak-to-peak
• Power Use: 160mW max at 12V
• Weight: Only 130g

Safety & Certifications

• Zone 0, IIC, T4-T6 certified
• Div 1, Group A compliant
• FM approved (Voc=15V, Isc=83.3mA)
• 250V isolation protection

Package Contents

• 1x MTL3052 isolator unit
• Installation manual
• 12-month warranty card

Shipping Options

• FedEx Priority: 1-3 business days
• UPS Express: 2-4 business days
• DHL Same-Day: Available for urgent orders

Frequently Asked Questions

• Q: When should I use the 100Ω output?
  A: For systems with surge protectors or higher resistance
• Q: Can it work with analog signals?
  A: Best for digital, but works with slow-changing analog
• Q: How does it compare to MTL3042?
  A: Higher frequency (10kHz vs lower) for digital signals
• Q: What’s the maximum cable length?
  A: Depends on resistance – consult manual for details
• Q: Can I use it with shaft encoders?
  A: Yes, with proper current-limiting resistors
