MTL3013 Dual-Channel Safety Relay | ATEX Certified

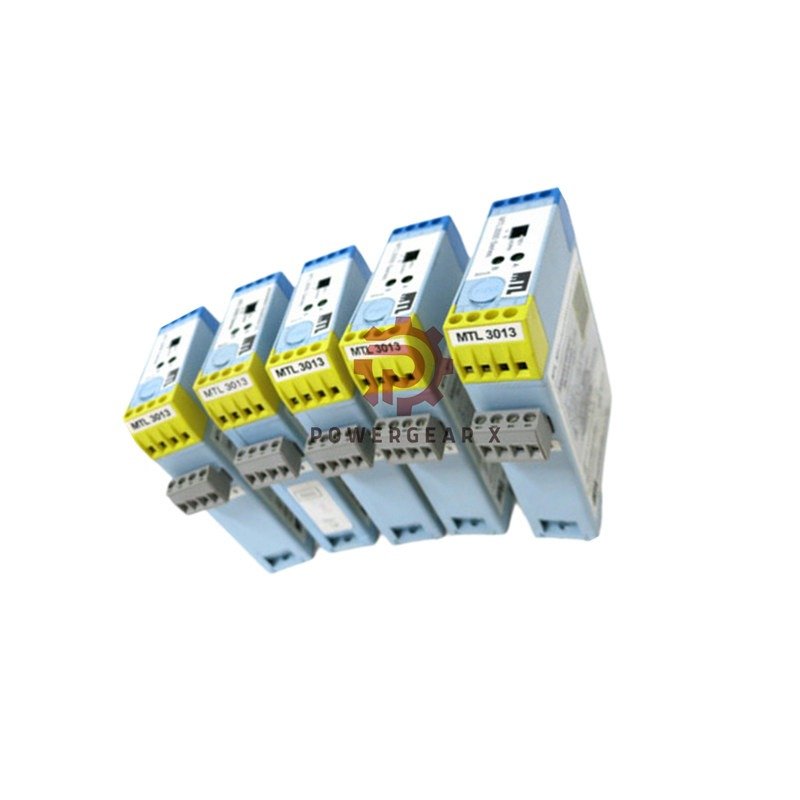

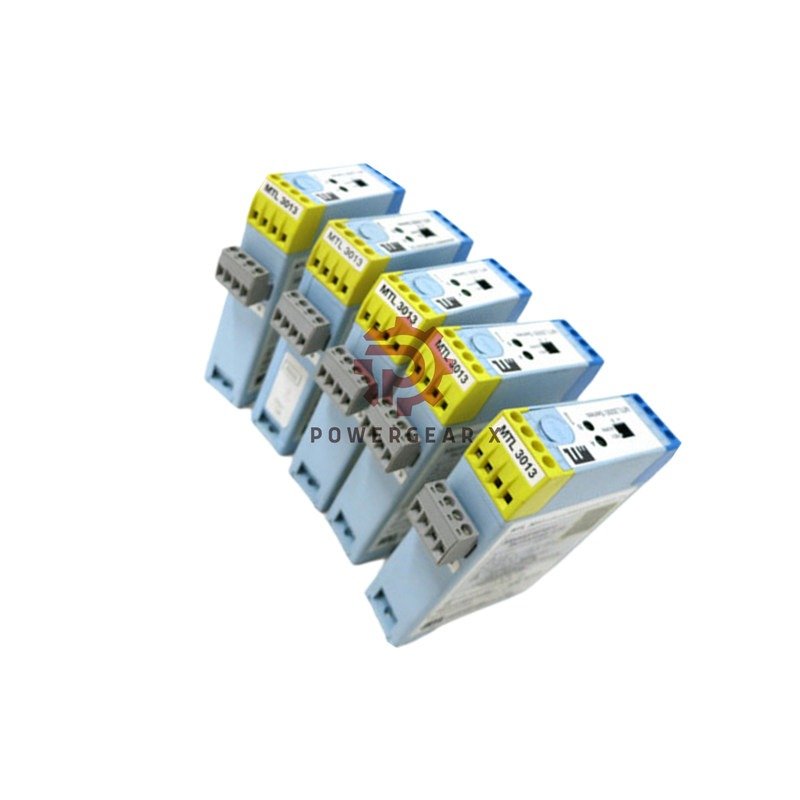

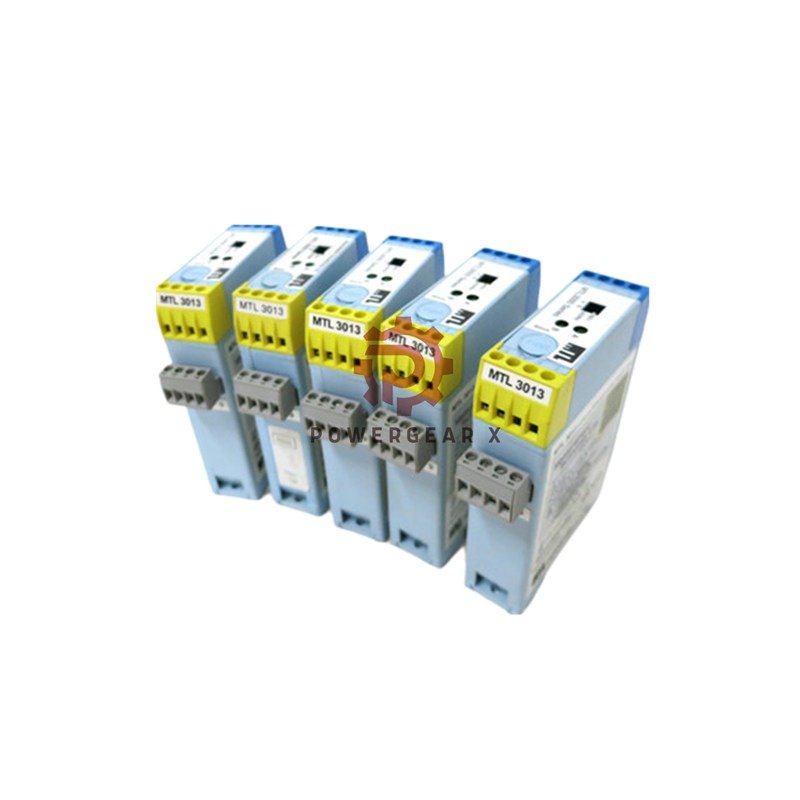

MTL3013 Dual-Channel Safety Relay – Hazardous Area Control Solution

Key Technical Numbers

• Relay Rating: 250V 5A (100W DC/100VA AC)
• Sensor Power: 7.0-8.5V DC (970Ω)
• Switch Points: 1.2mA (open) to 2.1mA (closed)
• Contact Life: 150,000+ operations at full load
• Power Use: Only 55mA at 24V
• Weight: Light 170g design

Why Professionals Choose MTL3013

• Bright LED status indicators for each channel
• Works with NAMUR/DIN19234 proximity detectors
• Compact size saves panel space
• Fuse-protected power input
• Zone 0, IIC T6 certified

Package Includes

• 1x MTL3013 dual-channel unit
• Quick start guide
• 12-month warranty documentation

Fast Global Shipping

• FedEx Express: 1-3 business days
• UPS Worldwide: 2-5 business days
• DHL Priority: 1-4 business days

Expert Questions Answered

• Q: Can I control both channels with one switch?
  A: Yes, using the interconnected floating design
• Q: What’s the maximum switching frequency?
  A: Approximately 100 operations per second
• Q: Does it work with mechanical switches?
  A: Yes, when properly configured
• Q: How to replace the fuse?
  A: Standard 5x20mm 80mA semi-time-lag fuse
• Q: Can I use it in Group C locations?
  A: Only with proper certification – check ratings
