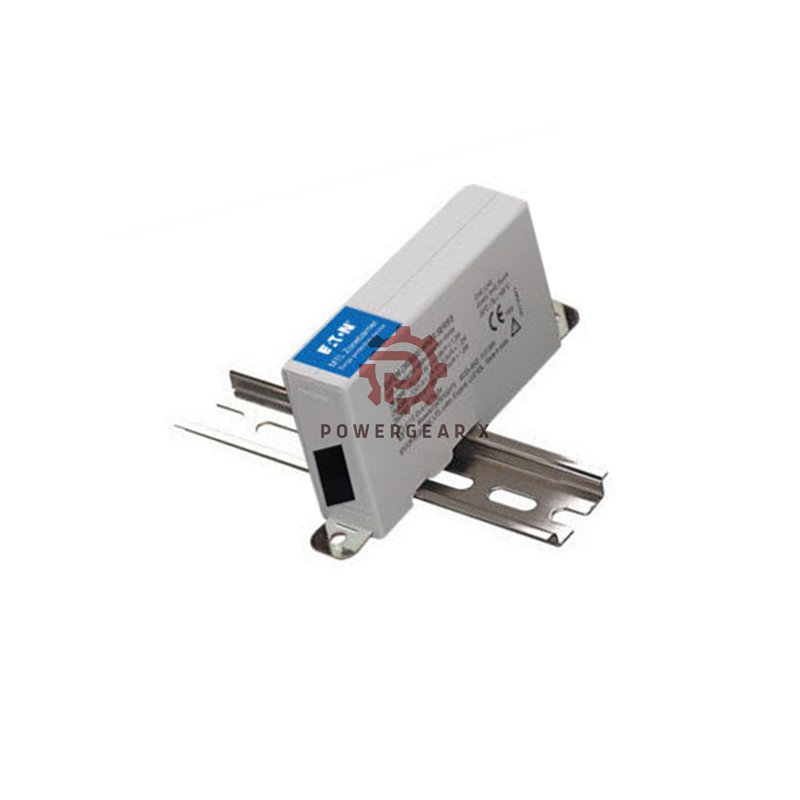

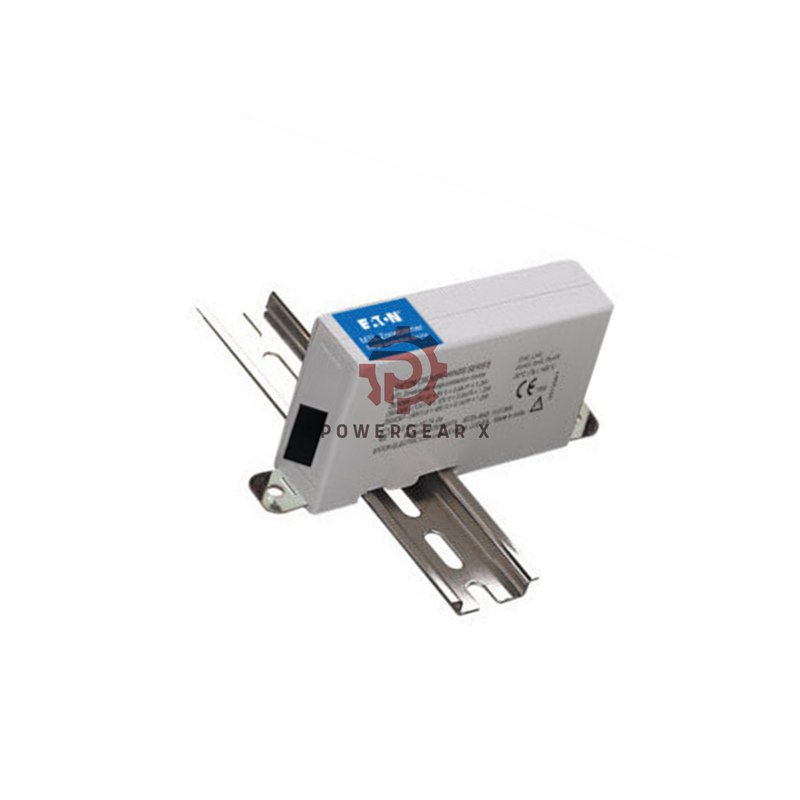

MTL ZB24542 ZoneBarrier – Robust 4-20mA Network Protection Solution

The MTL ZB24542 ZoneBarrier provides 6-line protection for 4-20mA signals in hazardous areas. This intrinsically safe barrier features pluggable terminals, surge protection, and wide temperature tolerance.

Technical Specifications

• Brand: MTL (Measurement Technology Ltd)
• Full Model: ZBS-24VCL-6W-TS | ZB24542
• Measurement Range: 4-20mA analog signals
• Frequency Response: 0.5MHz bandwidth
• Voltage: 24V working / 30V max
• Current: 0.5A max load | 10kA surge protection
• Temperature Range: -40°F to +185°F (-40°C to +85°C)
• Environmental: 95% RH non-condensing
• EMC: BS EN 60950:1992, BS EN 61000-6-2:1999
• Connections: 6 lines via pluggable terminal strip

Installation & Compatibility

• Simple in-line installation between devices
• Works with most 4-20mA field instruments and PLCs
• No configuration required – plug-and-play operation

Package & Support

• Includes: 1x Barrier unit, installation manual
• Warranty: 12 months guarantee
• Shipping: FedEx/UPS/DHL express options available

FAQ

• Q: Is this ATEX certified?
  A: Yes, meets Zone 0/1 requirements
• Q: Can it protect Ethernet lines?
  A: No, use 100Base-T models for Ethernet
• Q: What’s the lifespan?
  A: 10+ years with proper installation
