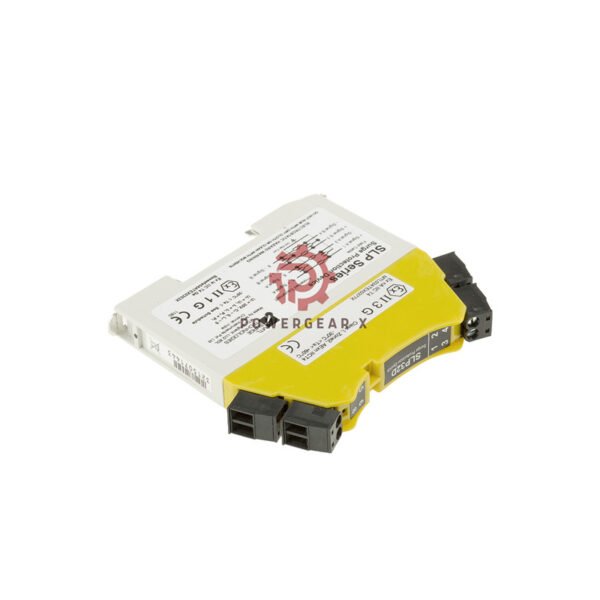

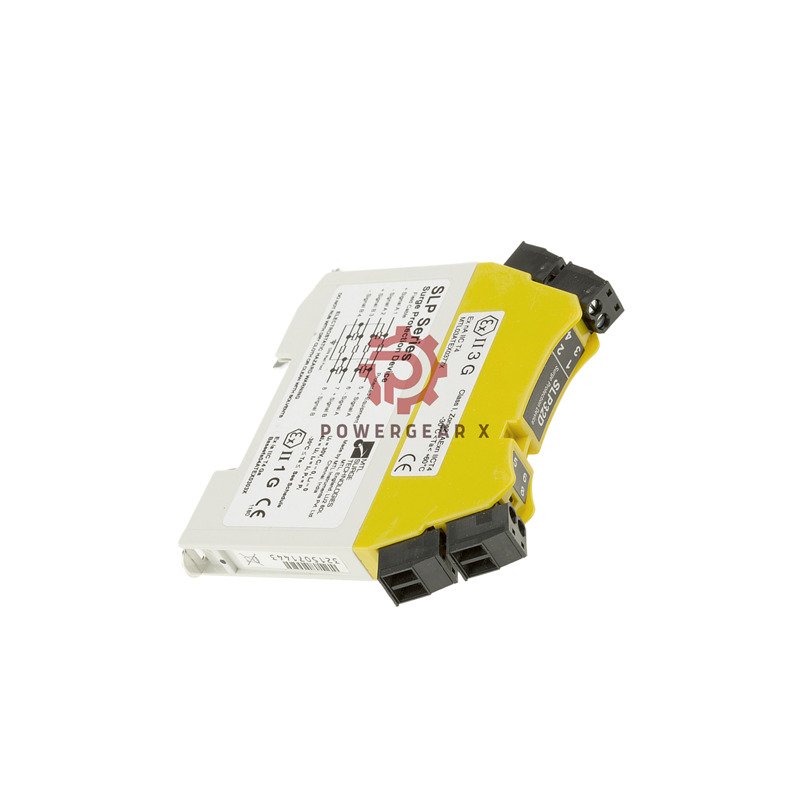

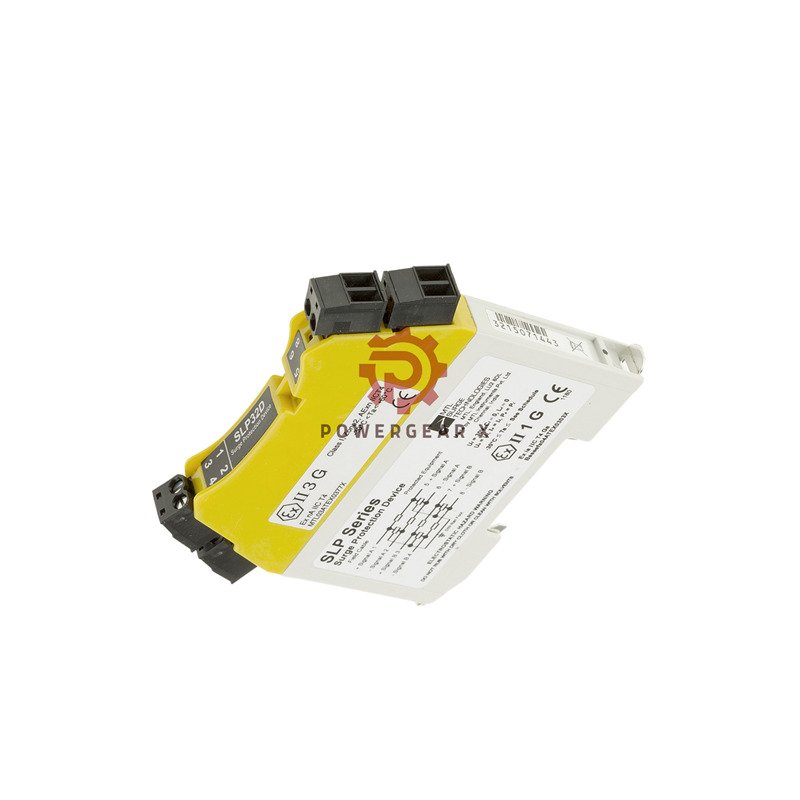

MTL SLP Series DIN Rail Surge Protector SLP32D

SLP Range Surge Protector SLP32D: Reliable Protection for Critical I/O Signals

Guard your sensitive digital and analog equipment from damaging voltage surges. The SLP range offers cost-effective, high-performance protection. Its hybrid design ensures signal integrity. It is perfect for process control and communication systems.

Technical Specifications

• Brand: MTL
• Product Range: SLP
• Model Example: SLP32D
  • Suffix: D (24V nominal voltage)
• Measurement Range: Up to 32V working voltage.
• Frequency Response: Bandwidth up to 50MHz.
• Sensitivity: Reacts to surges in under 1ns.
• Linearity: Minimal signal distortion for accurate data.
• Resolution: Not applicable for passive protection devices.
• Temperature Range: Operates from -40°C to +80°C.
• Environmental Tolerance: 5% to 95% RH, non-condensing.
• Interference Immunity: Excellent EMI/RFI rejection.
• Max Surge Current: 20kA (8/20µs waveform).
• Loop Resistance: Only 2 ohms for minimal voltage drop.
• Capacitance: 60pF line-to-line for high-bandwidth signals.

Certifications & Safety

• ATEX Certified for intrinsic safety (Ex) applications.
• EMC Compliance: BS EN 61326-1, BS EN 61010-1.
• Case flammability rating: UL94-V0.

Packaging & Warranty

• Package includes one SLP surge protection module.
• Shipped via FedEx, UPS, or DHL for fast delivery.
