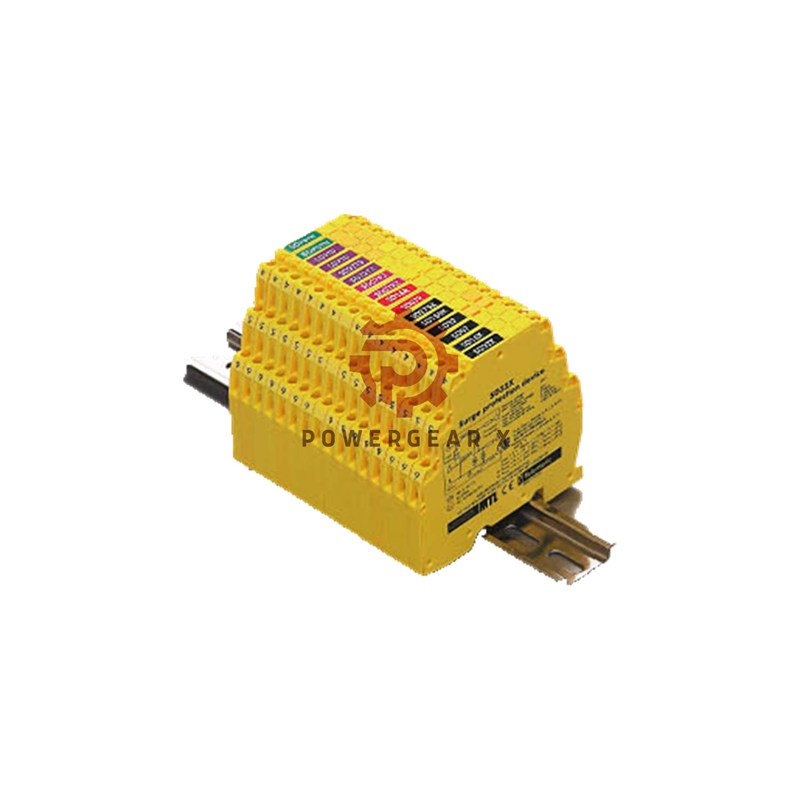

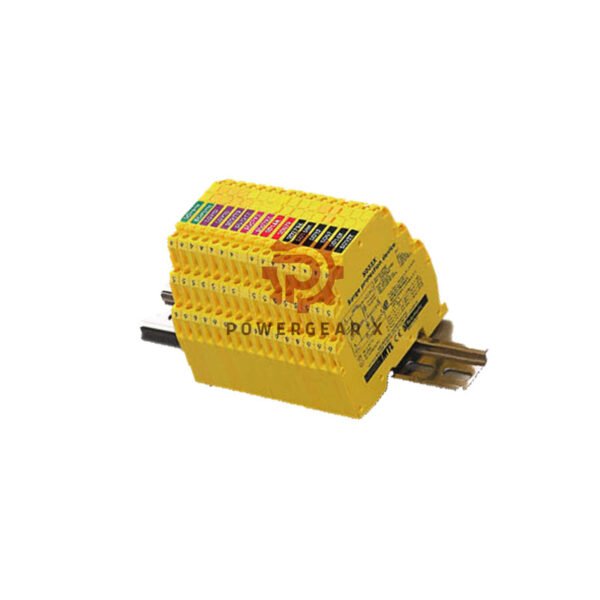

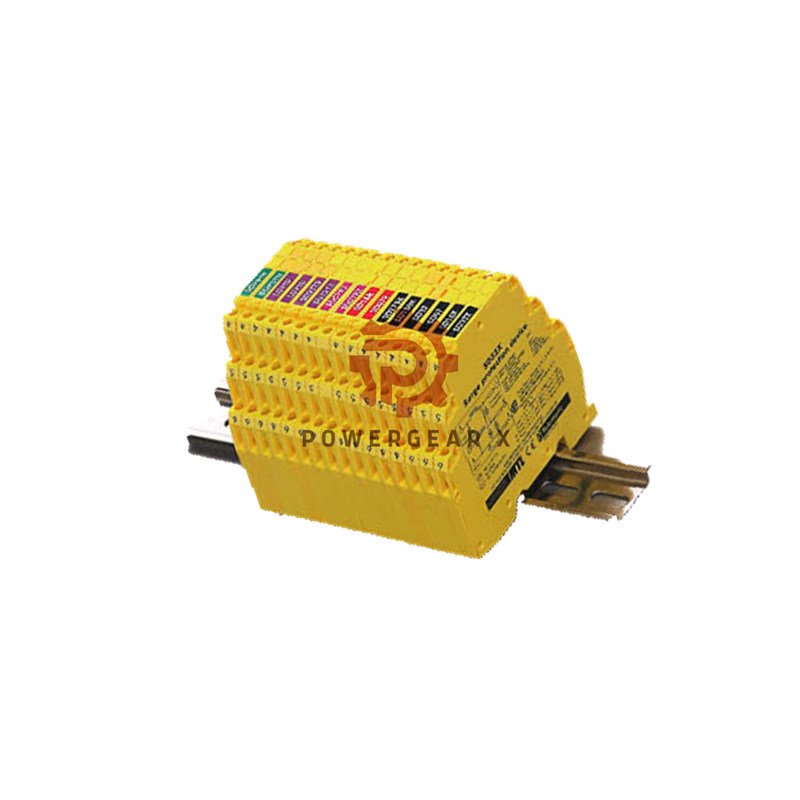

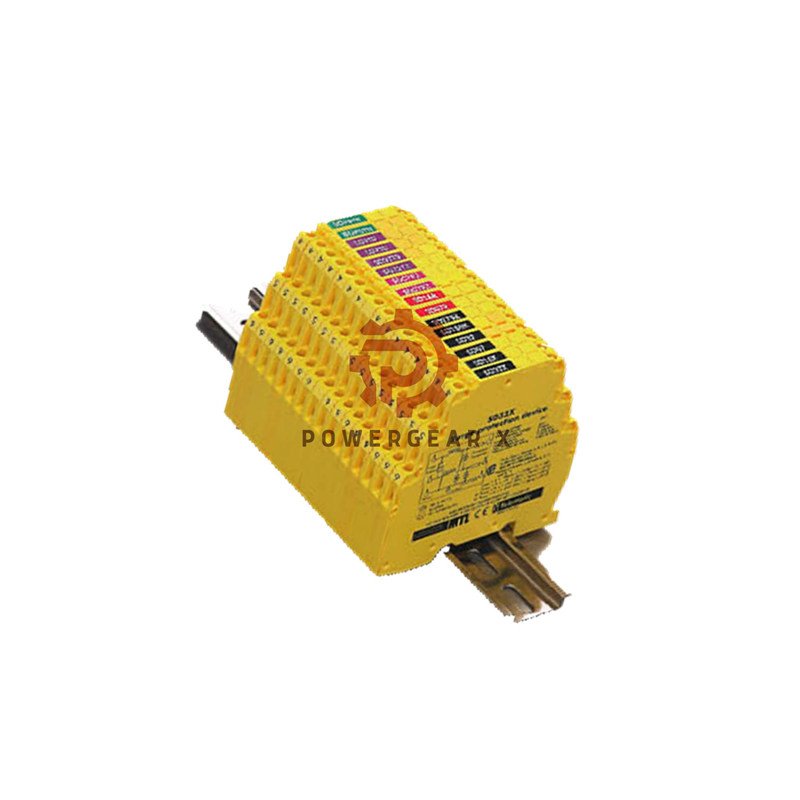

Eaton MTL SD16R3 Surge Protector
The Model SD16R3 protects your equipment from power surges. It works with both DC and AC systems. This device is easy to install and needs no maintenance. It reacts very fast to voltage spikes. Keep your machines safe with this reliable protector.
Technical Specifications
- Product Brand: Eaton MTL
- Model Number: SD16R3
- DC Voltage: 16V
- AC Voltage: 11V
- Current Rating: 400mA
- Series Resistance: 4.7Ω per line
- Leakage Current: <5μA
- Voltage Protection: <25V @ 1kV/μs
- Bandwidth: 50MHz
- Terminals: 3-terminal design
- Operating Temperature: -40°C to +85°C
- Connection Type: Screw terminals
- Housing Material: UL94-V0 rated
Installation
Mount on DIN rail. Connect wires to terminals. Ensure proper grounding. Test after installation.
Warranty & Shipping
12-month warranty. Ships via FedEx, UPS, DHL. Replacement service available.
FAQ
How do I install the SD16R3?
Mount it on DIN rail. Connect wires to the three terminals.
What systems does this work with?
It works with both 16V DC and 11V AC systems.
How fast does it respond to surges?
It reacts in less than 1 nanosecond.
What is the warranty period?
We offer a 12-month warranty.
Can I use this outdoors?
Yes, it works from -40°C to +85°C.
