Product Overview

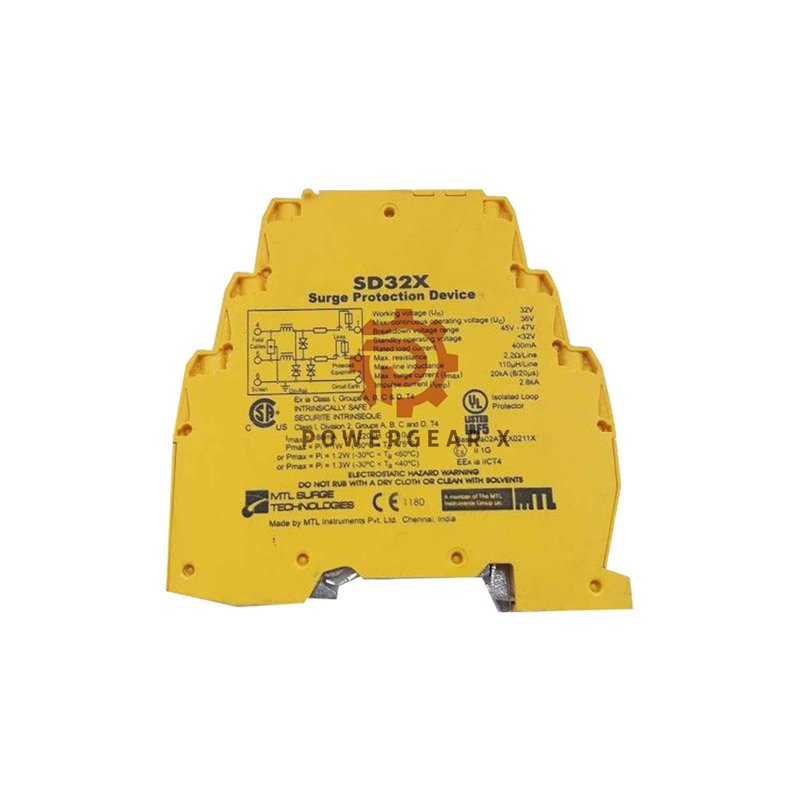

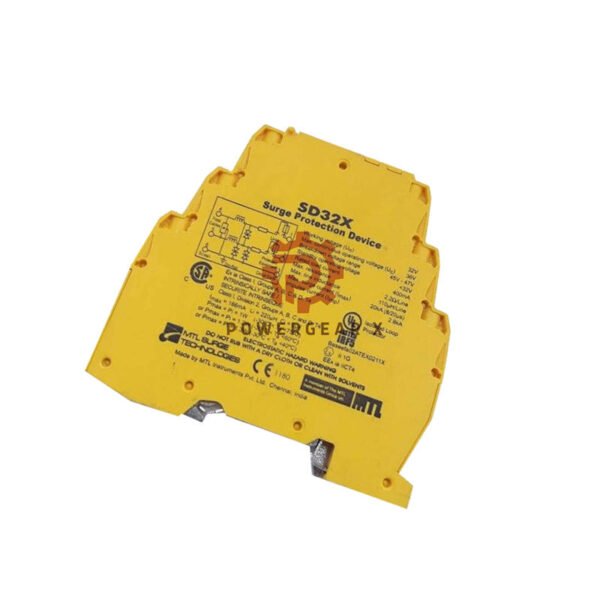

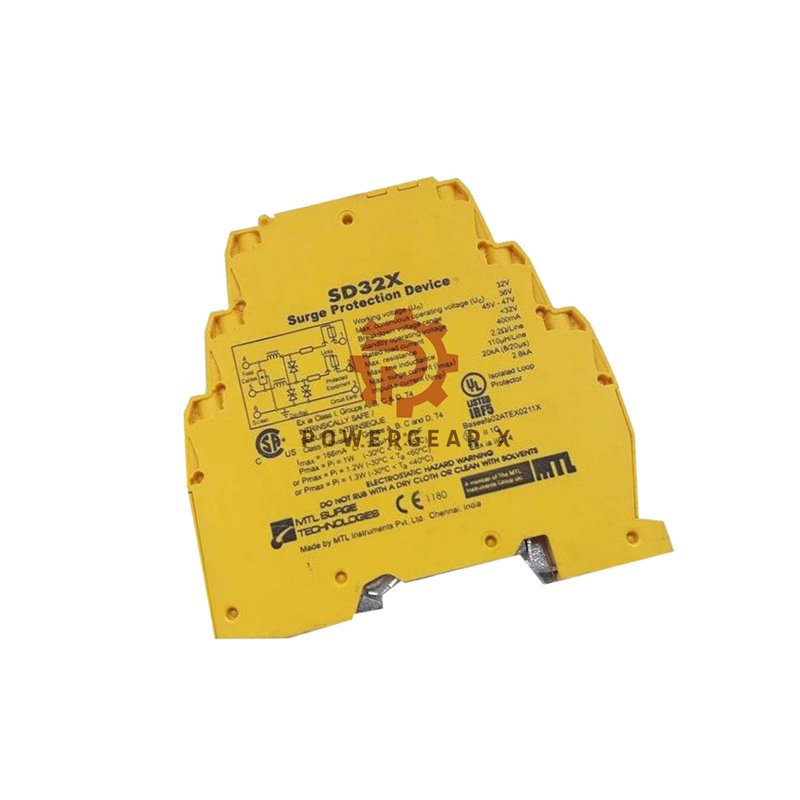

Discover the SD32X surge protector from MTL Instruments. This device shields your equipment from power surges. It is perfect for industrial signal lines. The low resistance design ensures minimal signal loss. Its compact size saves valuable panel space. Rely on it for consistent performance in harsh environments. The SD32X delivers exceptional protection and value.
Technical Specifications
- Brand: MTL Instruments
- Model: SD32X
- Product Type: Surge Protection Device (SPD)
- Nominal Voltage: 32 Vdc / 22 Vac
- Rated Voltage (Uc): 36 V
- Nominal Current: 400 mA
- Series Resistance: 2.2 Ω per line
- Max Leakage Current: 5 µA
- Voltage Protection Level: Under 45 V
- Residual Voltage: 60 V
- Bandwidth: 25 kHz
- Special Feature: Low Resistance Design
- Surge Current Rating: High capacity protection
- Response Time: Nanosecond-level reaction
- Connection Type: 3-terminal screw clamp
- Operating Temp Range: -40°C to +80°C
- Storage Temperature: -40°C to +85°C
- Humidity Range: 5% to 95% non-condensing
- Housing Material: Self-extinguishing plastic
- Installation: DIN rail mounting
- Dimensions: 9.9cm x 10.21cm x 0.7cm (WxHxD)
- Weight: 0.07 kg
Frequently Asked Questions
- How does low resistance benefit my system?
It ensures minimal voltage drop and signal accuracy. - Can this device protect DC power circuits?
Yes, it’s rated for DC voltages up to 32V. - What type of connections does it use?
It features screw terminal blocks for secure wiring. - Is this unit suitable for hazardous areas?
It’s designed for use in industrial environments. - What signals can it protect?
It’s ideal for 4-20mA loops, sensor lines, and control signals.
