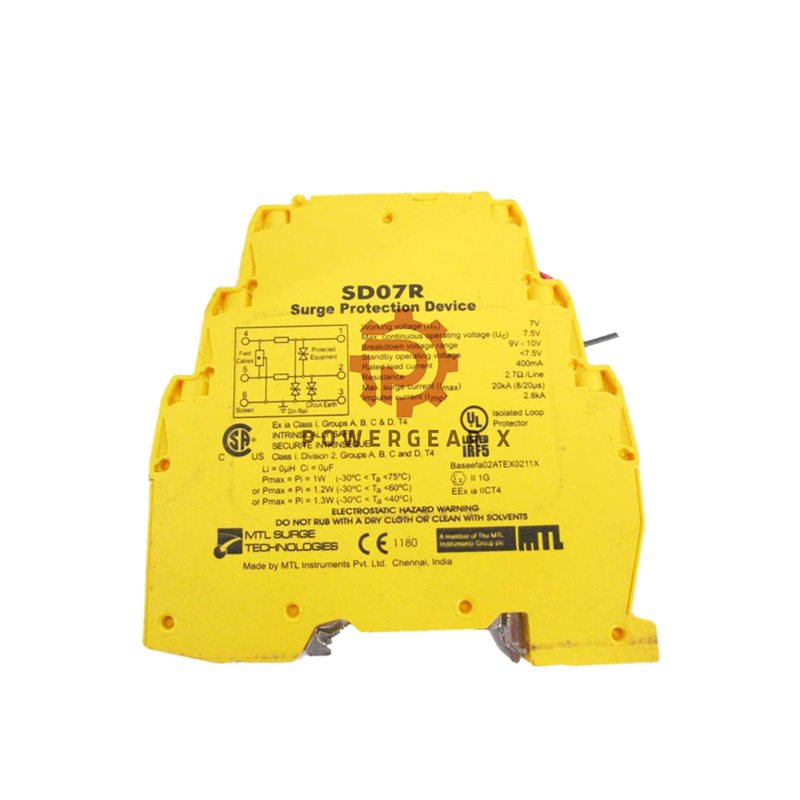

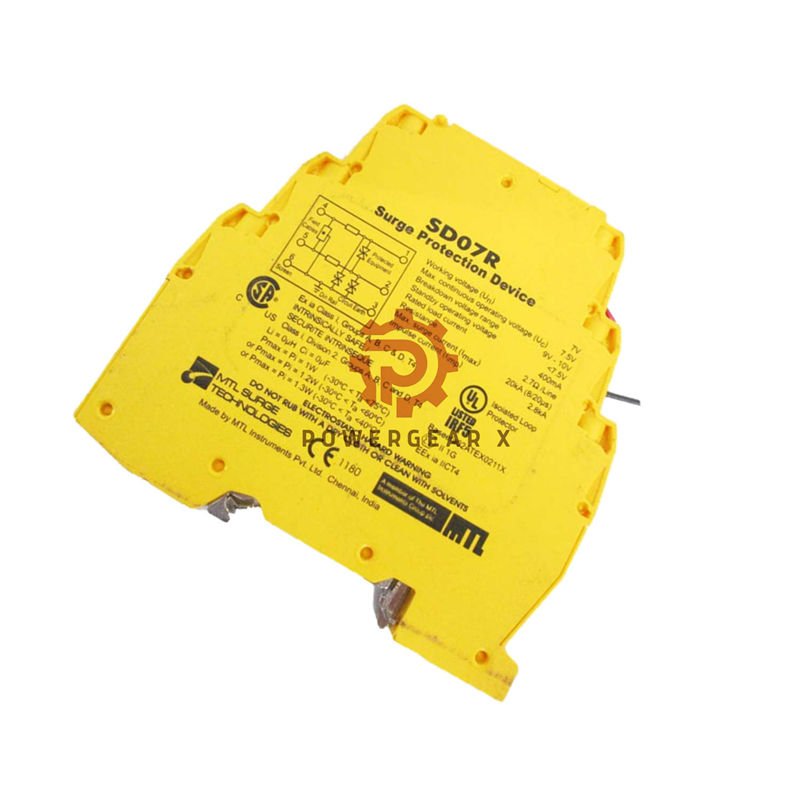

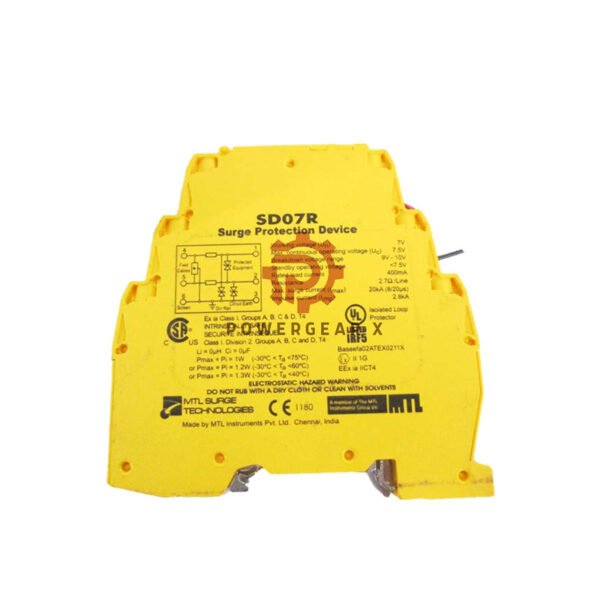

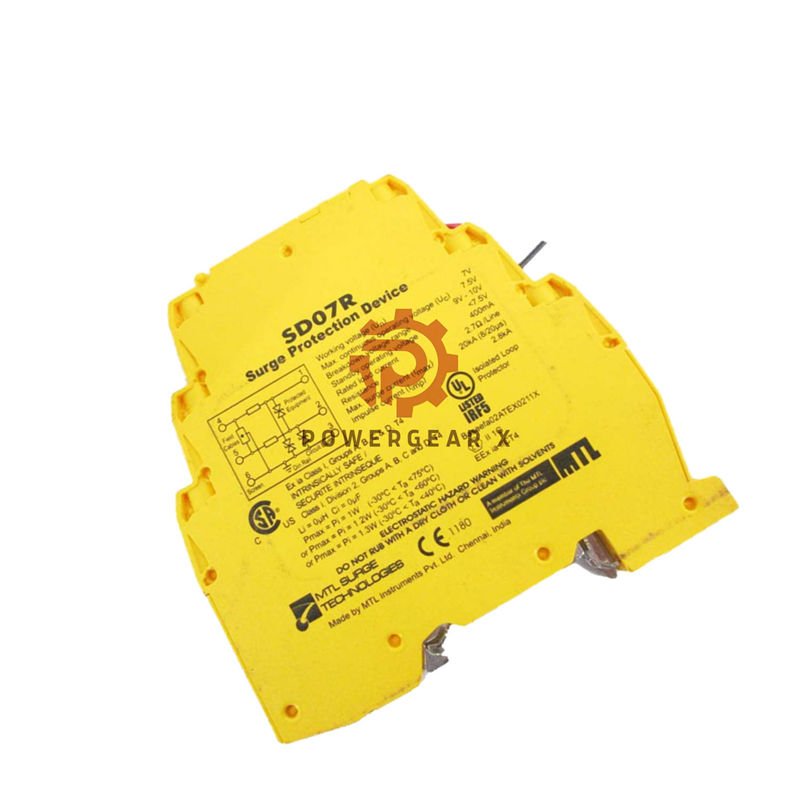

MTL Instruments SD07R – High Frequency Surge Protector

Product Overview

The MTL SD07R surge protector safeguards sensitive equipment. It offers high bandwidth up to 50MHz. This module ensures signal clarity in industrial settings. It is reliable and easy to install.

Technical Specifications

• Brand: MTL Instruments
• Model: SD07R
• Nominal Voltage: 7 Vdc / 7 Vac
• Nominal Current: 400 mA
• Series Resistance: 2.7 Ω/line
• Max. Leakage Current: 500 µA
• Rated Voltage: 7.7 V
• Voltage Protection Level: < 12 V
• Residual Voltage: 30 V
• Bandwidth: 50 MHz
• Frequency Response: Up to 50 MHz
• Operating Temperature: Standard industrial range
• Environmental Durability: High
• Noise Immunity: Excellent

FAQ

• What is the bandwidth?
  50MHz.
• Is it suitable for AC circuits?
  Yes, 7V AC and DC.
• How to install?
  Use standard DIN rail mounting.
