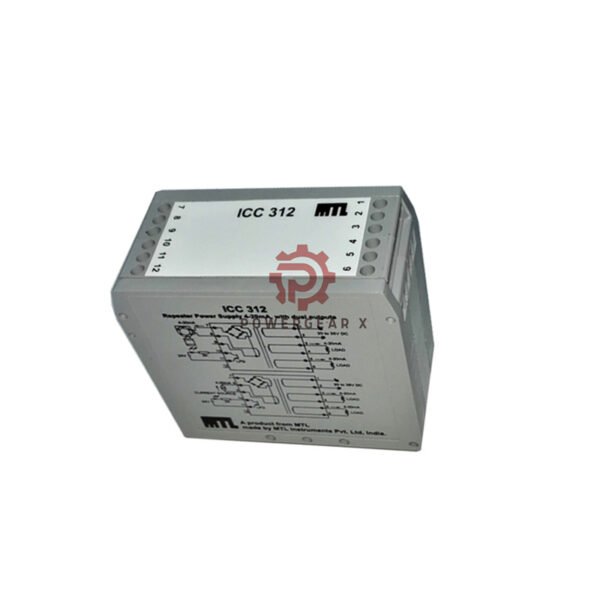

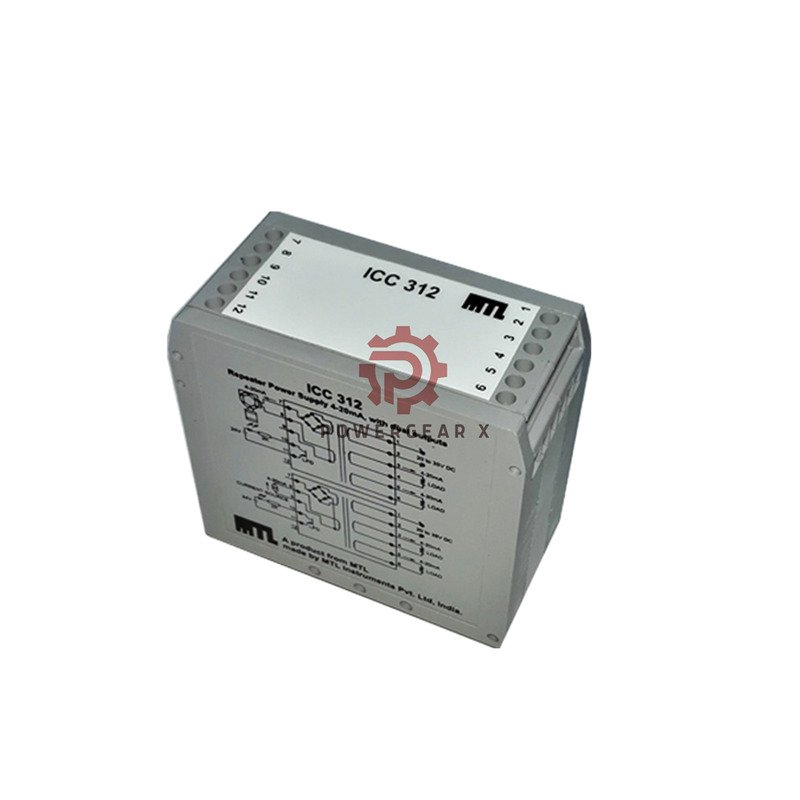

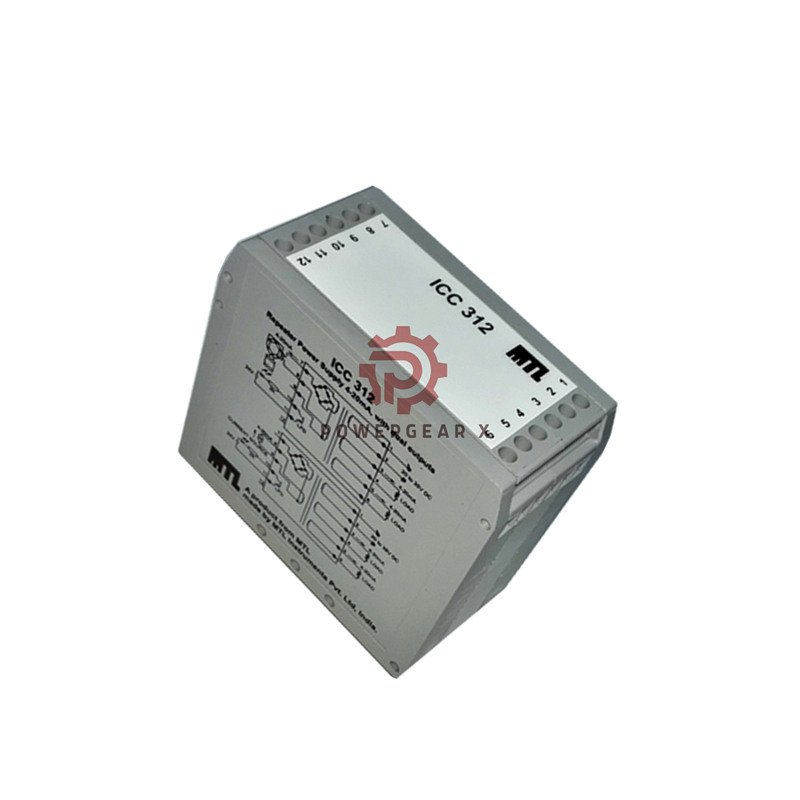

MTL ICC312 Repeater Power Supply – Dual Output 4-20mA Isolator

MTL ICC312 Repeater Power Supply: Reliable Signal Isolation and Distribution

Detailed Technical Specifications

Model Information

• Brand: MTL
• Base Model: ICC312
• Input Type: 4-20mA (2-wire transmitter or current source)
• Output Type: Dual, isolated 4-20mA signals

Performance Data

• Measurement Range: 4 to 20mA
• Transfer Accuracy: Better than 0.1% (20μA) at 25°C
• Linearity: Not specified (Inherently covered by accuracy specification)
• Response Time: 80ms (to 90% of span), 280ms (to 99.9% of span)
• Load Resistance: 0 to 1kΩ on each output
• Isolation: 1500V DC/AC between input, outputs, and power supply
• Common Mode Rejection (CMRR): 150dB typical

Electrical Characteristics

• Power Supply: 20 to 35V DC
• Transmitter Supply Voltage: 20V minimum at 20mA
• Line-Fault Detection (LFD): Open-collector alarm output

Environmental Ratings

• Operating Temperature: -20°C to +55°C
• Storage Temperature: -40°C to +80°C
• Humidity: 5 to 95% RH (non-condensing)

Packaging Contents

• 1 x MTL ICC312 Repeater Power Supply unit
• 1 x Product information guide

Warranty & Support

This product is backed by a 12-month warranty from the date of purchase.
