High-Performance AC Servo Drive for Precision Motion

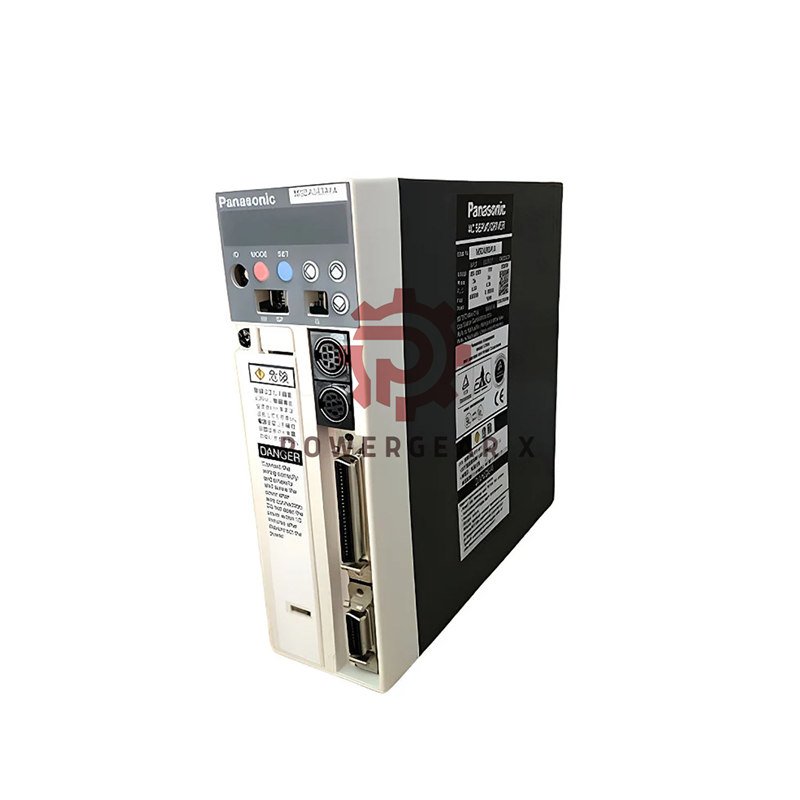

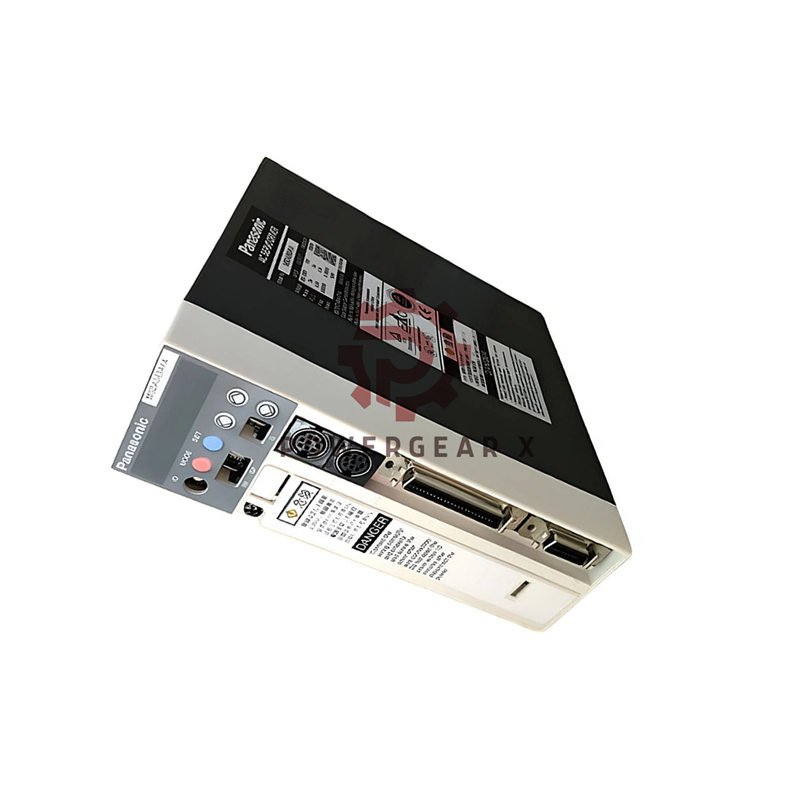

The Panasonic MINAS A-Series MSDA083A1A AC Servo Drive delivers reliable power for industrial automation. This 750W model features low inertia design for rapid response. It ensures accurate control in high-speed applications with smooth operation.
Key Product Features
- Power Rating: 750 Watts for strong performance
- Supply Voltage: Three-Phase 200V AC input
- Encoder Type: Incremental with 2500 P/R resolution
- Shaft Design: Straight shaft without brake system
- Inertia Type: MSM Low Inertia for fast acceleration
- Resolution: 10,000 pulses per revolution for precision
Technical Specifications
- Rated Speed: 3000 rpm maximum rotation
- Torque Rating: 2.4 Nm continuous output
- Encoder Output: A, B, Z phase signals
- Communication: RS-485 interface capability
- Protection: IP65 rating for dust and water resistance
- Cooling Method: Natural convection cooling
- Ambient Temperature: 0°C to 40°C operating range
- Storage Temperature: -20°C to 65°C safe storage
- Vibration Resistance: 5.8 m/s² maximum tolerance
Performance Advantages
- Quick response time for dynamic applications
- High precision positioning accuracy
- Smooth operation at low speeds
- Excellent velocity stability
- Strong overload capacity
- Easy integration with existing systems
Installation Guidelines
- Ensure proper grounding for safety
- Maintain adequate clearance for cooling
- Use compatible cables and connectors
- Verify voltage requirements before power-up
- Follow torque specifications for mounting
Package Contents
- Panasonic MSDA083A1A MINAS A-Series Servo Drive unit
- Installation manual and documentation
- Basic mounting hardware included
- Factory test reports provided
Shipping & Delivery
- FedEx Express shipping available
- UPS worldwide delivery options
- DHL international service
- Fast processing from stock
Warranty & Support
- 12-month manufacturer warranty
- Technical support from Powergear X Automation
- Original factory packaging
- Quality assurance guaranteed
Expert Questions & Answers
- What applications suit this low inertia design?
This drive works perfectly in robotics and packaging machines. The fast response enables quick direction changes and high acceleration.
- How does the encoder resolution affect performance?
Higher resolution provides better position accuracy. The 10K resolution ensures precise motion control for delicate operations.
- Can I connect this to existing control systems?
Yes, it supports standard industrial interfaces. You can integrate it with most PLCs and motion controllers easily.
- What maintenance does this servo drive require?
Regular cleaning and periodic inspection are recommended. Check connections and monitor temperature during operation.
- How do I troubleshoot communication issues?
Verify cable connections and parameter settings first. Ensure proper shield grounding and check for electrical noise.
