MR-BAT6V1SET | Mitsubishi 6V Lithium Battery for MR-J4 Servo – Backup Absolute Position Data

MR-BAT6V1SET – Mitsubishi 6V Lithium Battery Module | Backup for MR-J4 Servo Amplifiers

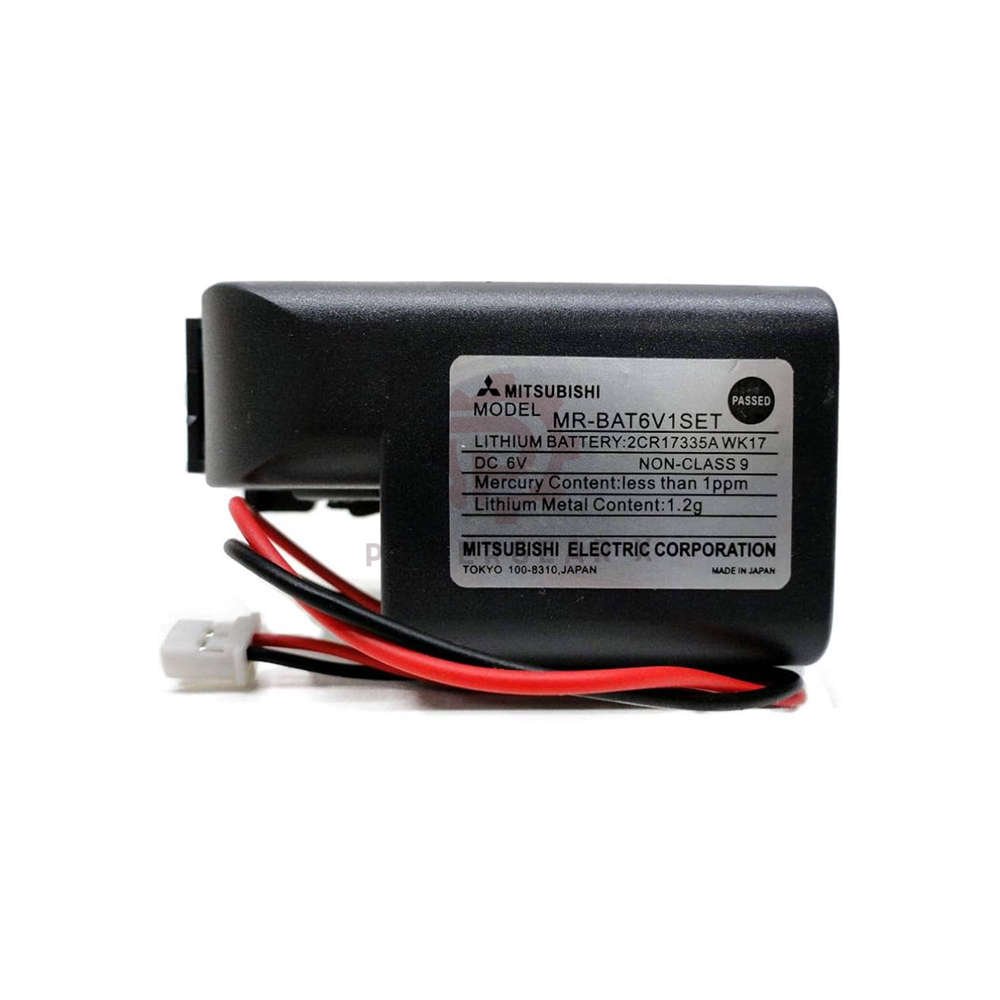

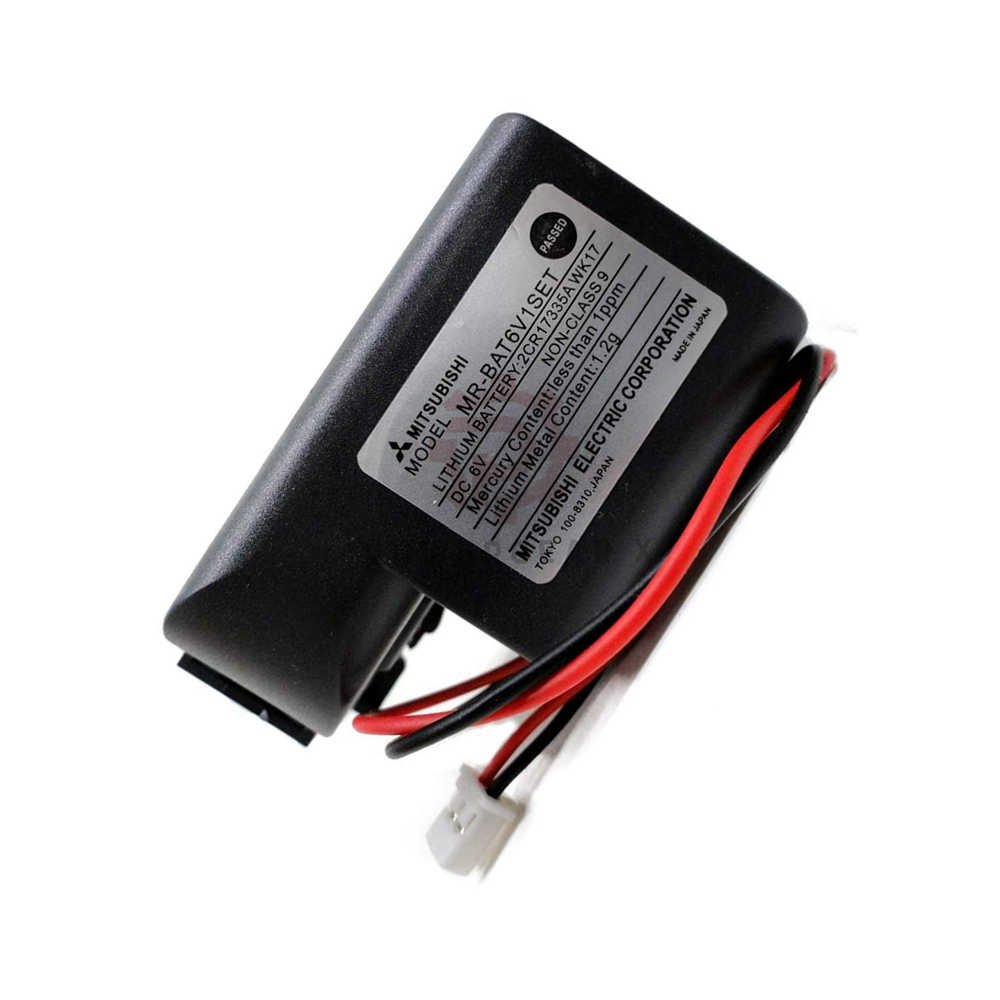

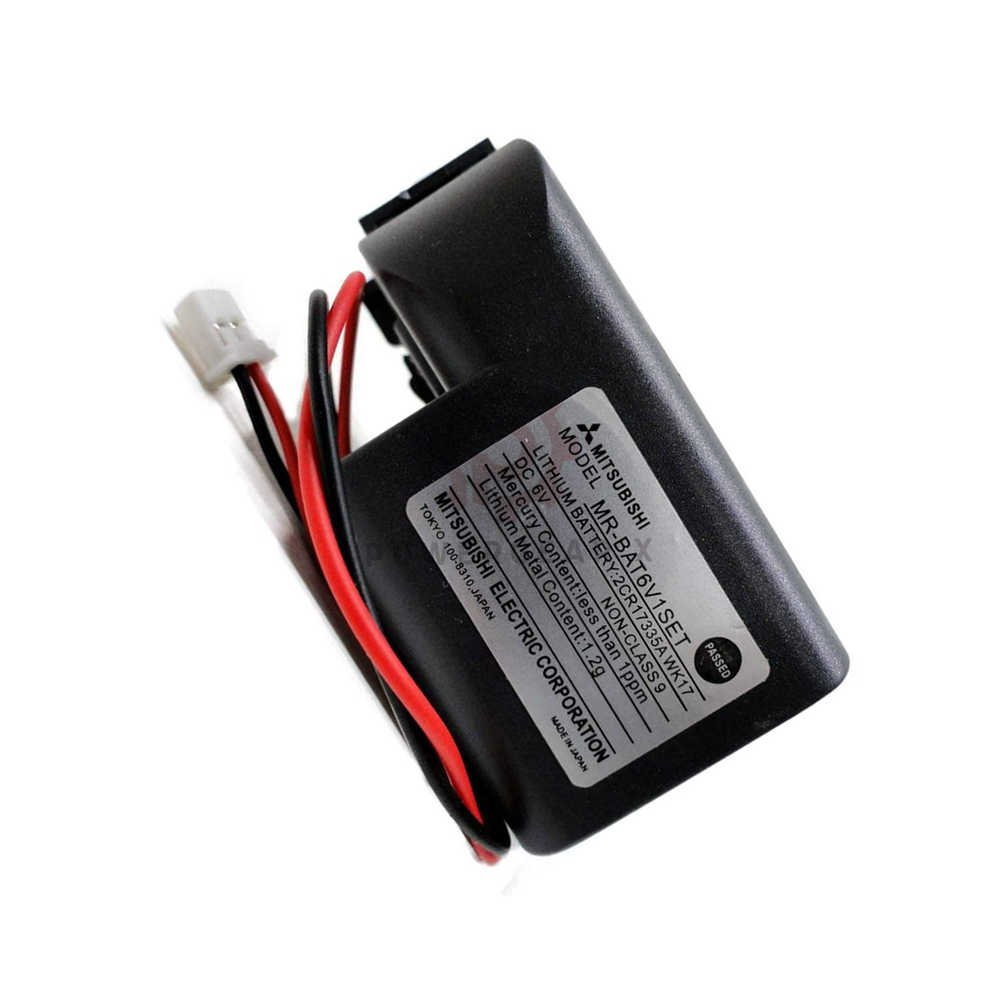

Keep your absolute position safe. The Mitsubishi MR-BAT6V1SET is a lithium battery module. It includes battery + holder. It gives 6V DC backup for MR-J4 servo amplifiers. Small size, light weight, easy to install. Perfect for rotary servo motors and direct drive motors.

📧 Email: sales@powergearx.com | 📞 WhatsApp: +86 18030005825 — Fast support & 12-24h shipping.

📌 Product Overview – What You Get

• ▶ Lithium battery module
  • ▪ Includes battery + sturdy holder
  • ▪ Designed for Mitsubishi MR-J4 servo amps
• ▶ 6V DC backup power
  • ▪ Keeps absolute encoder position when power is off
  • ▪ No need to re-home machine after shutdown
• ▶ Compact & light
  • ▪ Weight: 0.075 kg (0.14 lbs)
  • ▪ Size: 38.5mm x 69.3mm x 21mm
• ▶ Easy to install
  • ▪ Slides and locks securely onto servo amp
  • ▪ Connector fits designated port

⚙️ Technical Specifications

• ▸ General Info
  • ▪ Brand: Mitsubishi Electric
  • ▪ Model: MR-BAT6V1SET
  • ▪ Product Line: MELSERVO MR-J2 series
  • ▪ Product Type: Lithium battery module
• ▸ Electrical Ratings
  • ▪ Voltage: 6V DC
  • ▪ Lithium metal content: 1.2 g
  • ▪ Mercury content: less than 1 ppm
• ▸ Physical Dimensions
  • ▪ Width: 38.5 mm
  • ▪ Height: 69.3 mm
  • ▪ Depth: 21 mm
  • ▪ Weight: 0.075 kg (0.14 lbs)
• ▸ Compatibility & Purpose
  • ▪ Compatible devices: MR-J4 Servo Amplifiers
  • ▪ Purpose: Build absolute position detection system
  • ▪ Backup for absolute position data
  • ▪ Required for: Rotary servo motors & direct drive motors
  • ▪ Not required for: Linear servo motors

🔧 How to Install – Simple Steps

• ▪ Mounting
  • ▪ Slide battery into dedicated slot on MR-J4 amplifier.
  • ▪ Push until it clicks and locks securely.
• ▪ Connection
  • ▪ Connector automatically mates with amp port.
  • ▪ No tools needed – plug and play.
• ▪ Safety note
  • ▪ Do not short circuit or open the battery.
  • ▪ Dispose according to local lithium battery rules.

🛠️ Battery Life & Replacement

• ▪ Typical life
  • ▪ About 5 years in normal use.
  • ▪ Low battery warning from servo amplifier.
• ▪ Replacement tip
  • ▪ Replace with amplifier power ON to keep position data.
  • ▪ Always use genuine MR-BAT6V1SET for reliability.

🎯 Manager’s Insight – Why This Battery Matters

• ▪ Real-world reliability
  • “We see many production stops because of lost absolute position. The MR-BAT6V1SET solves that. It locks tight, lasts years, and is cheap insurance. For any MR-J4 rotary axis, this is mandatory. Don’t risk data loss – buy original.” – Senior Service Manager, PowergearX.

🏭 Compatible Devices & Best Use Cases

• ▪ Works with these amplifiers
  • ▪ Mitsubishi MR-J4-10B to MR-J4-700B series
  • ▪ MR-J4W series multi-axis amps
  • ▪ Any MR-J4 amplifier controlling rotary servo or direct drive motor
• ▪ Typical applications
  • ▪ CNC machines (mills, lathes) with absolute encoders
  • ▪ Robotics – keep robot position after power loss
  • ▪ Pick-and-place machines
  • ▪ Packaging lines with multiple axes
  • ▪ Semiconductor manufacturing equipment

📦 Warranty & Fast Delivery

• ▪ 12-month warranty
  • ▪ Covers any manufacturing defects.
• ▪ Shipping terms
  • ▪ 12-24 hours dispatch after payment.
  • ▪ Carriers: FedEx, UPS, DHL (tracked express).
• ▪ Box includes
  • ▪ 1 x MR-BAT6V1SET lithium battery module
  • ▪ Battery holder attached
  • ▪ Instruction sheet

❓ Frequently Asked Questions (FAQ)

• Q1: Which servo amplifiers work with MR-BAT6V1SET?
  • A1: It works with all MR-J4 series amplifiers that control rotary servo motors or direct drive motors. Does NOT work with linear servo motors. Also compatible with some MR-J3 series (check manual).
• Q2: How do I know when to replace the battery?
  • A2: Your MR-J4 drive will show alarm AL.25 (low battery voltage). Replace within 2 weeks to avoid losing absolute position data. We recommend yearly check.
• Q3: Can I replace the battery while the machine is running?
  • A3: Yes – keep servo amplifier power ON. Remove old battery and insert new one quickly. Position data stays safe. Never replace with power off – you will lose zero point.
• Q4: Is this battery the same as MR-BAT6V1 or MR-BAT6V1SET2?
  • A4: MR-BAT6V1SET includes battery + holder. MR-BAT6V1 is battery only (no holder). MR-BAT6V1SET2 is a newer version with same specs. All fit MR-J4, but SET version is easiest to install.
• Q5: Do you offer warranty and fast shipping?
  • A5: Yes – 12 months warranty. We ship within 12-24 hours via FedEx, UPS, or DHL. Global tracking provided. Contact sales@powergearx.com for urgent orders.

📘 Buying Guide – Do You Need MR-BAT6V1SET?

• ▪ Buy this if
  • ▪ You have an MR-J4 servo amp with rotary motor.
  • ▪ You want to keep absolute encoder position after power off.
  • ▪ Your current battery is old or shows low voltage alarm.
  • ▪ You are building a new MR-J4 system with absolute positioning.
• ▪ Do NOT buy if
  • ▪ You use linear servo motors (they don’t need backup battery).
  • ▪ Your MR-J4 amplifier already has working battery.
• ▪ Pro tip from our tech team
  • ▪ Keep one spare battery in your spare parts cabinet. Machine downtime costs more than a battery. Replace every 4-5 years even without alarm.
