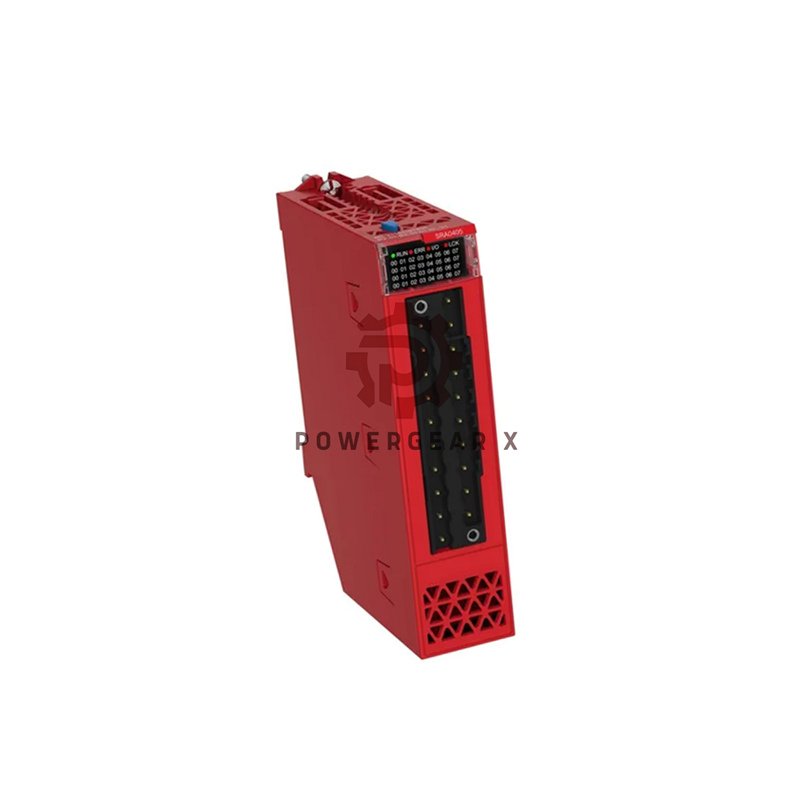

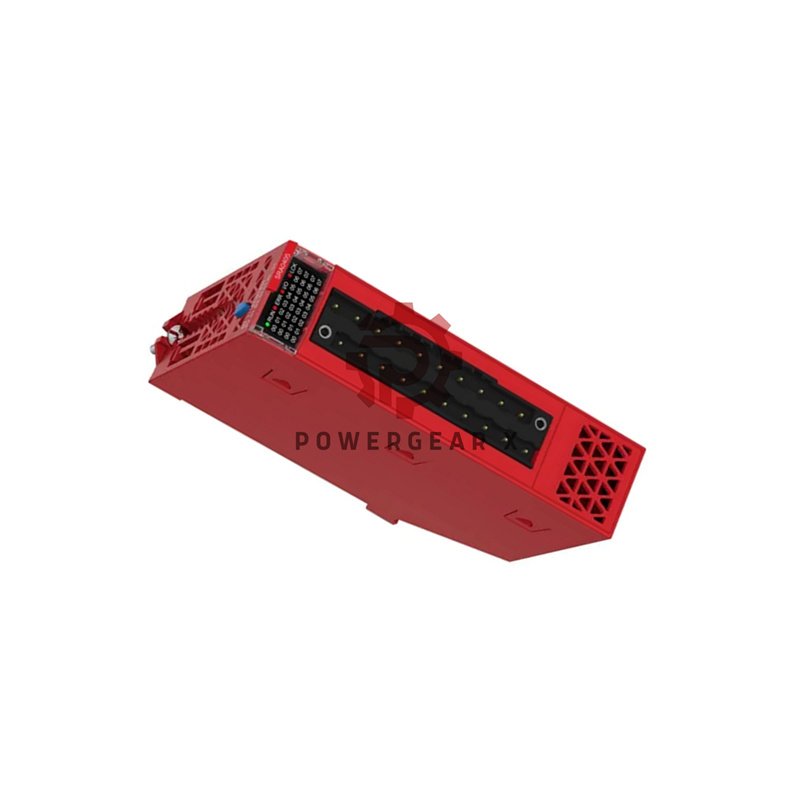

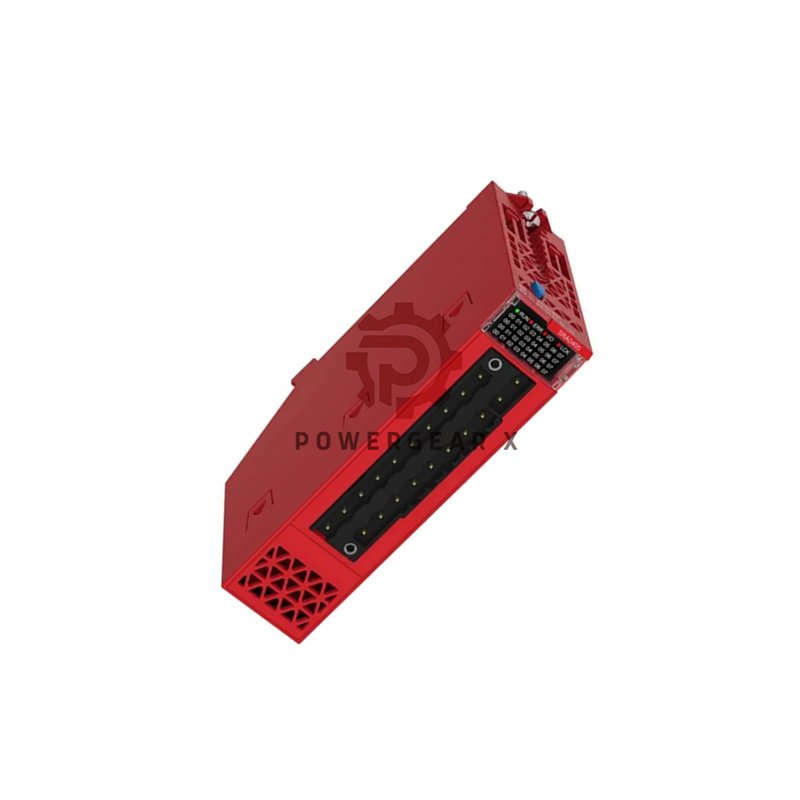

Modicon X80 BMXSRA0405 Safety Relay Output Module
The BMXSRA0405 safety relay module delivers reliable 4-channel output control for industrial applications. This BMXSRA0405 unit handles voltages from 24V DC to 230V AC with complete isolation. It ensures safe operation in demanding environments with robust protection features.
Key Product Specifications
- Brand: Modicon X80 | Model: BMXSRA0405
- Output Channels: 4 fully isolated relay outputs
- Voltage Range: 24-230V AC / 24V DC compatible
- Switching Capacity: 5A per channel with overload protection
- Response Time: 12ms ON / 6ms OFF for fast operation
- Lifespan: 10 million mechanical cycles, 80,000 electrical cycles
- Protection Rating: IP20 with conformal coating
- Temperature Range: -25°C to 60°C operating temperature
Advanced Protection Features
- Short-circuit and overvoltage protection on all outputs
- External fuse protection for each channel or channel group
- Dielectric strength: 2000V AC for 1 minute
- Vibration resistance: 3gn, Shock resistance: 15gn
- MTBF: 624,000 hours for reliable long-term performance
Environmental Durability
- Resistant to gas, dust, sand, and mold per IEC standards
- Suitable for altitudes up to 2000m without derating
- Operates in 5-95% humidity without condensation
- Conformal coating protects against harsh industrial conditions
Shipping & Warranty Information
- 12-month warranty included with all purchases
- Worldwide shipping via FedEx, UPS, and DHL
- Package dimensions: 26×18×5.5cm, Weight: 389g
- Bulk packaging available: 8 units per carton
- Origin: France, GTIN: 3606481204936
Technical Support FAQ
- What is the maximum switching current per channel?
- Each channel supports up to 5A continuous current at 250V AC.
- Can this module handle DC inductive loads?
- Yes, it includes overvoltage protection for DC inductive loads.
- What type of fuse protection is required?
- Use one fast-blow fuse per channel or channel group as specified.
- Is the module suitable for high-vibration environments?
- Yes, it withstands 3gn vibration and 15gn shock resistance.
- What is the minimum switching current?
- The minimum switching current is 10mA at 5V DC for reliable operation.
