Product details
Product Introduction by Powergear X Automation

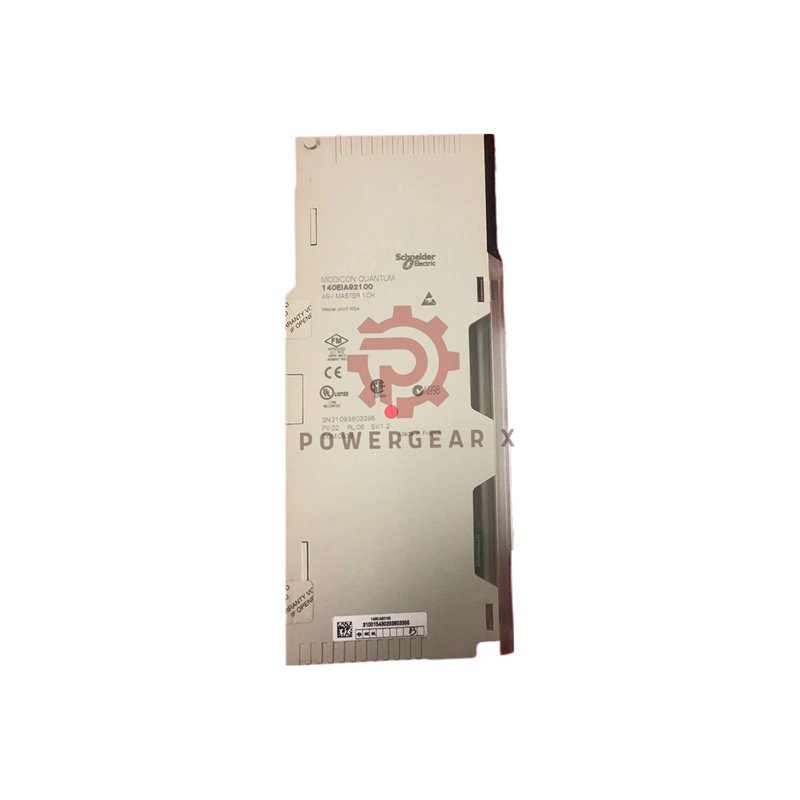

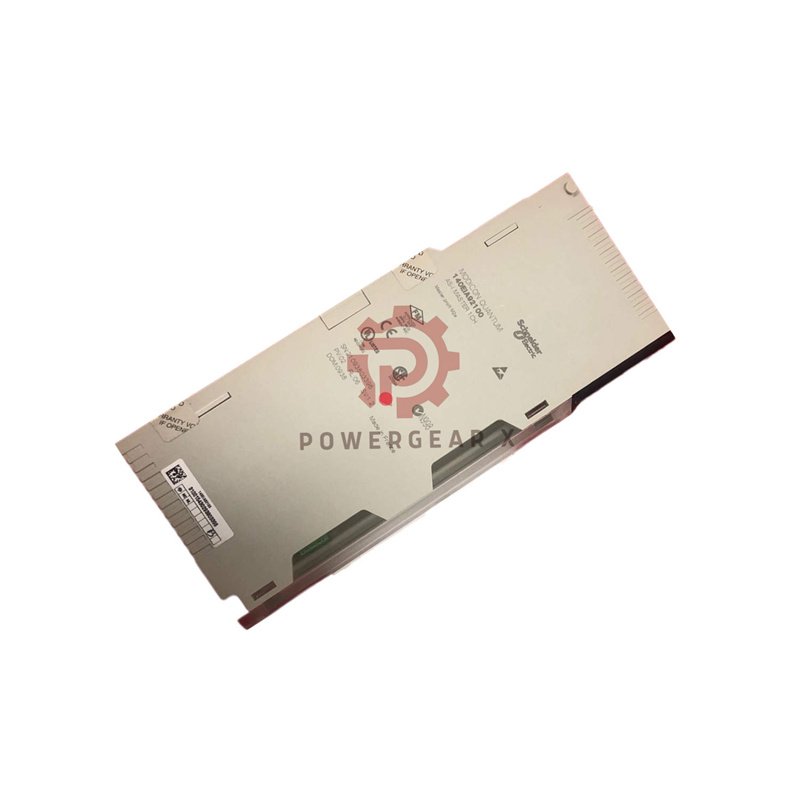

Powergear X Automation offers the Schneider Electric 140EIA92100C. This is an AS-i master module for Modicon Quantum systems. It connects sensors and actuators quickly. It supports the reliable AS-Interface V1 standard.
Key Technical Specifications
- Brand & Model: Schneider Electric 140EIA92100C
- Product Line: Modicon Quantum AS-i Master Module
- AS-i Version: Compliant with V1 standard
- Cycle Time: Very fast 5 milliseconds maximum
- I/O Capacity: 124 Discrete Inputs and 124 Discrete Outputs
- Device Support: Connects up to 31 server devices
- Data Rate: High-speed 167 kbit/s transmission
- Protection: Built-in reverse polarity protection
- Power Use: Low current consumption, ≤ 100 mA
- Net Weight: Lightweight at 0.45 kg
Performance & Design Features
- Network Length: Supports cable runs up to 100 meters
- Supply Voltage: 30 V DC via the AS-i line
- LED Indicators: 32 LEDs for slave status and I/O
- Connection: 1 male SUB-D 3-pin connector
- Protection Class: IP20 rating for indoor use
- Temperature Range: Operates from 0 to 60 °C
- Certifications: CE, UL, FM, CSA, GOST, C-Tick
- Warranty: Full 12-month product warranty
- Shipping: Available via FedEx, UPS, and DHL
Installation & Integration Guide
- Install in a Quantum PLC local, remote, or distributed drop.
- Maximum of 4 modules per local or remote drop.
- Use standard AS-Interface flat cable for easy wiring.
- Cycle time formula: 156 µs x (number of slaves + 1).
- For support, email sales@powergearx.com or call +86 18030005825.
Frequently Asked Questions (FAQ)
- What is the main benefit of a 5ms cycle time?
It allows for very fast updates of all sensor and actuator data. This is critical for quick machine control. - Can I use this module with newer AS-i V2 devices?
No. The 140EIA92100C is for V1 networks only. Check device compatibility before purchase. - How many of these modules can I add to one PLC?
You can use up to 4 modules in a local drop. You can use 2 modules in a distributed drop setup. - What does the IP20 protection rating mean?
It protects against solid objects larger than 12mm. It is not protected against water. Use indoors only. - What should I check first if a slave device is not responding?
Check the cable connection and slave address. Verify the 30V DC power on the AS-i line is stable.
