Modicon Quantum 140EHC20200 Dual Channel Counter | 500kHz

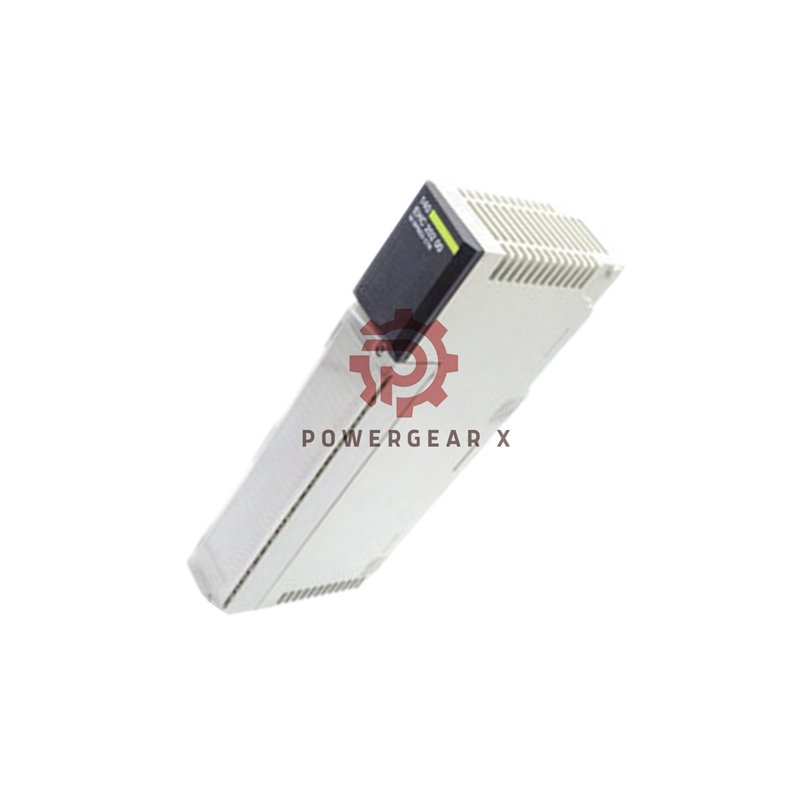

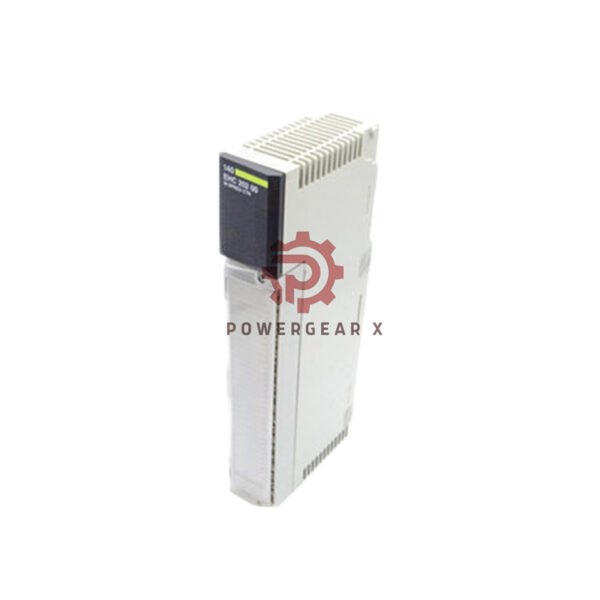

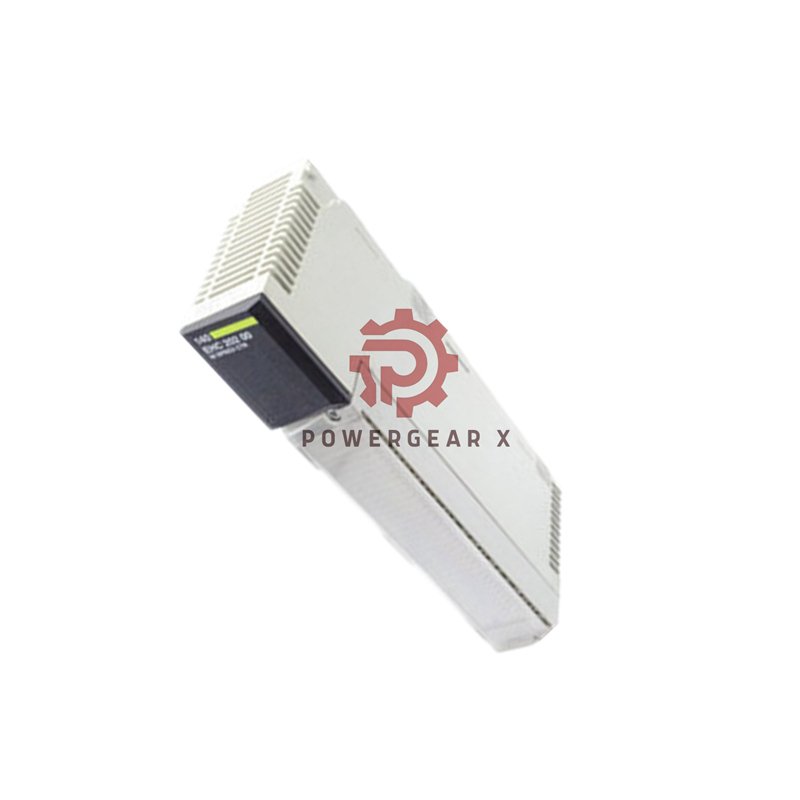

Modicon Quantum 140EHC20200 High-Speed Counter Module

The 140EHC20200 delivers ultra-fast counting for industrial automation. This powerful module handles precise counting at 500 kHz speeds with dual channel operation.

Technical Specifications

• Maximum Speed: 500,000 counts per second
• Counting Channels: 2 independent channels
• Input Types: Incremental or quadrature encoding
• Count Range: Up to 2,147,483,647 (32-bit)
• Input Voltage: 5-30V DC operating range
• Outputs: 4 FET outputs, 0.5A each
• Power Supply: 19.2-30V DC external power
• Isolation Protection: 1780V protection from surges
• Temperature Range: 0°C to 60°C operation
• Communication: 6 input and 6 output words

What’s Included

• 1 × 140EHC20200 high-speed counter module
• Complete installation documentation
• All necessary mounting hardware
• 12-month warranty

Shipping Information

• Package Size: 32.0 × 17.0 × 5.0 cm
• Package Weight: 444 grams
• Global Shipping: FedEx, UPS, DHL
• Fast delivery options available

Common Questions

• Q: What sensors work with this module?
  A: It works with most incremental encoders and pulse generators.
• Q: Can I monitor rotation speed with this module?
  A: Yes, it’s perfect for speed measurement applications.
• Q: What safety certifications does it have?
  A: It has UL, CSA, FM, and other international certifications.
• Q: How is the module powered?
  A: It uses both backplane power and external 24V DC power.
• Q: What applications is it best for?
  A: Ideal for packaging, material handling, and assembly systems.
