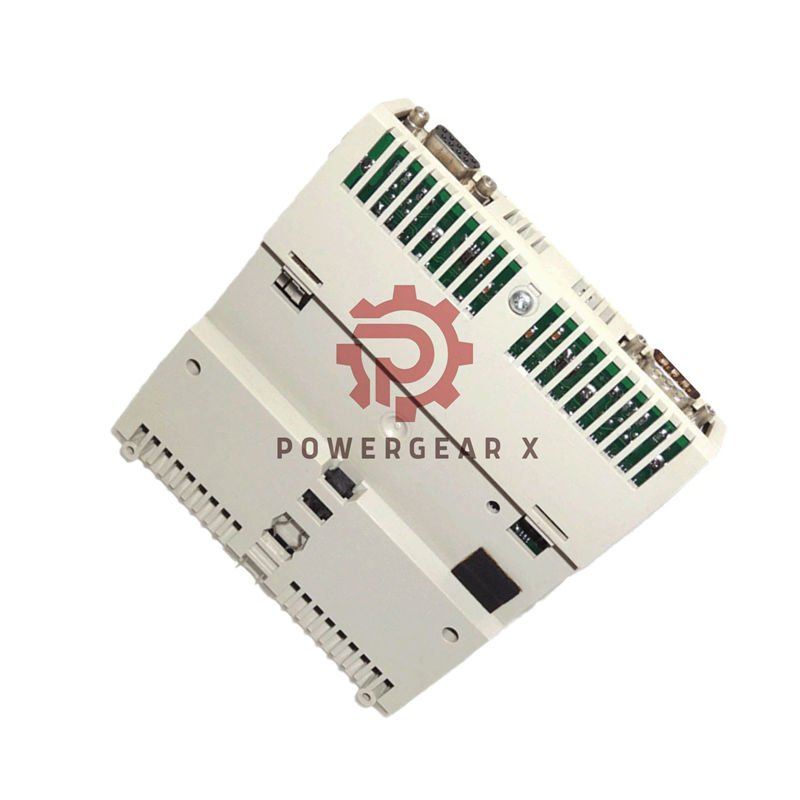

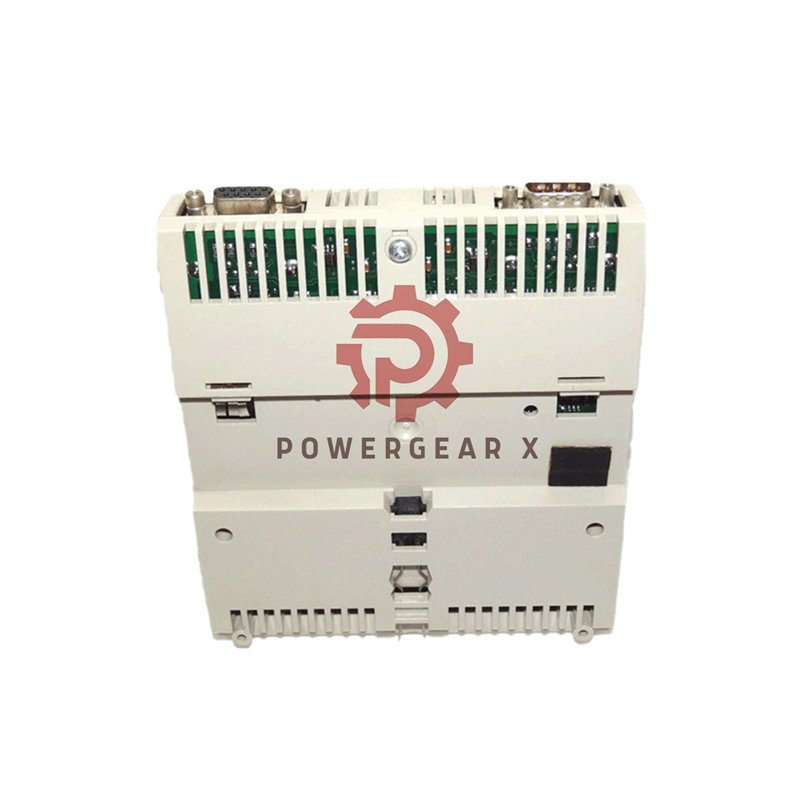

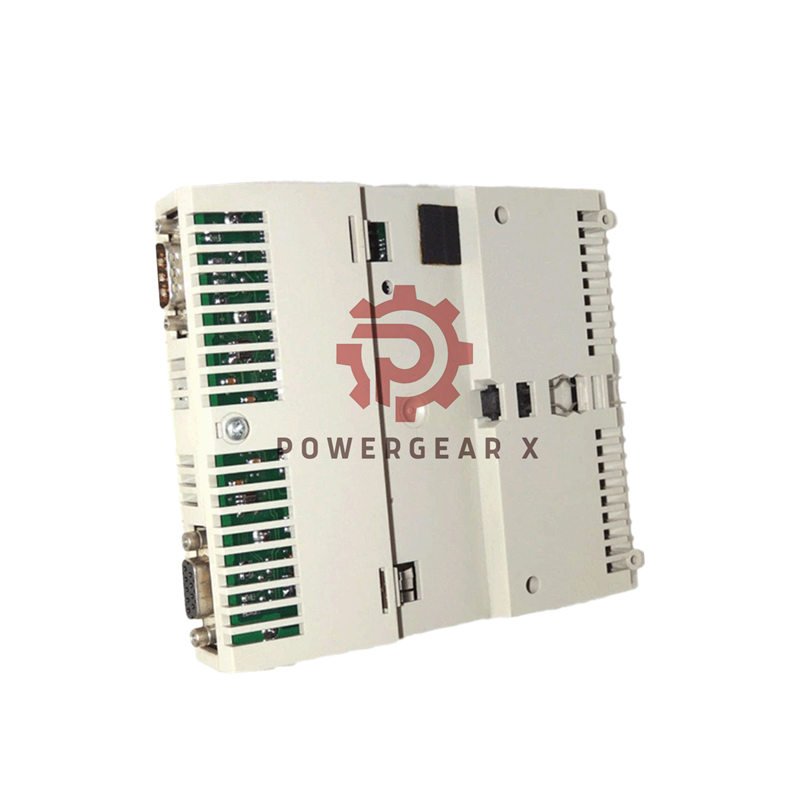

Modicon Momentum 170BAI03600 Analog Input Module by Schneider Electric

Schneider Electric 170BAI03600 Analog Input Module Overview

The Schneider Electric 170BAI03600 offers stable and simple analog input functions for Modicon Momentum systems.

Main Highlights

• Eight analog channels read signals with high accuracy.
• Works on 24 V DC supply with 1 A load.
• Runs in many control panels and compact PLC racks.
• Handles heat from 0°C to 60°C.
• Manages humidity up to 80% with no condensation.
• Rated for 1000 m maximum altitude use.
• Simple wiring lowers setup time.
• Content by Powergear X Automation.

Extended Technical Data

• Brand: Schneider Electric
• Model: 170BAI03600
• Series: Modicon Momentum
• Channels: 8 analog inputs
• Typical input range: ±10 V or 0–10 V (system dependent)
• Input impedance: approx. 200 kΩ
• Sample time: under 10 ms per channel
• Resolution: 12–15 bit depending on system
• Noise rejection: strong filtering for stable readings
• Weight: 0.75 lbs (0.34 kg)
• Power draw: low to support long-term operation
• Storage humidity: 80% non-condensing
• Environmental class: industrial control cabinet
• Warranty: 12 months

Why This Module Helps Your System

• Reads many signals with one card.
• Fits tight spaces in small cabinets.
• Provides stable values for PLC logic.
• Runs well in warm or humid plants.
• Uses simple 24 V DC wiring for fast setup.

Installation Guide

• Mount the module on the Momentum base.
• Connect the field wires to the input block.
• Use clean grounding to reduce noise.
• Check input polarity before powering up.
• Test each channel with a known signal.

Packing List

• One 170BAI03600 module.
• One wiring note card.
• One product label.
• Ships with FedEx / UPS / DHL.

FAQ

• Q: How do I reduce noise on analog lines?
• A: Use shielded cable and ground one side only.
• Q: Can I mix voltage and current signals?
• A: Keep each type on separate channels and match PLC settings.
• Q: What should I check when readings drift?
• A: Inspect wiring, temperature changes, and grounding loops.
• Q: How do I test if a channel works?
• A: Inject a fixed signal and compare the PLC value.
• Q: Should I use filters for slow signals?
• A: Yes, light filtering helps stabilize low-speed data.
