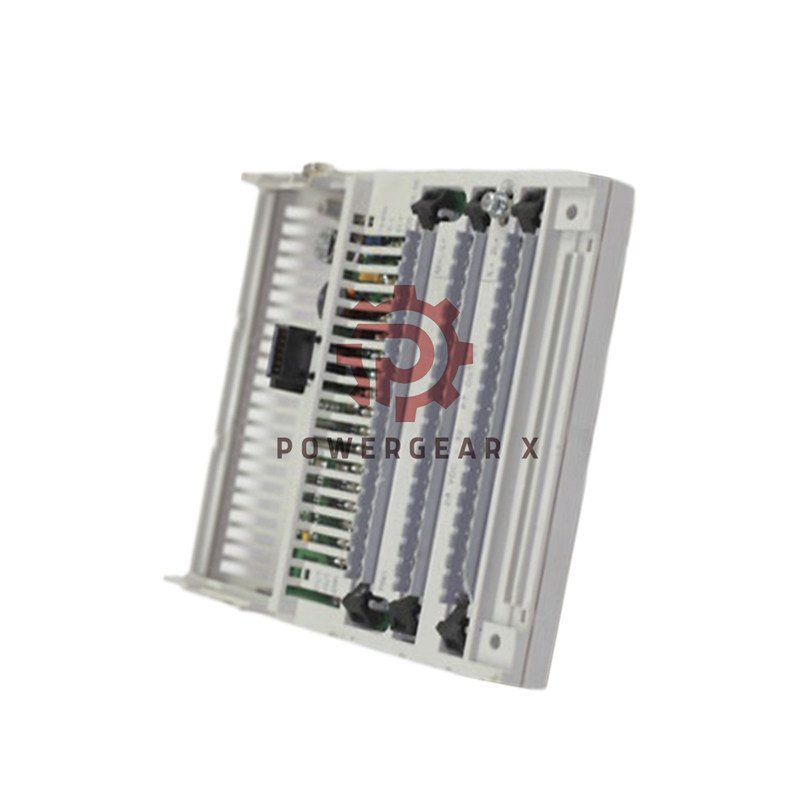

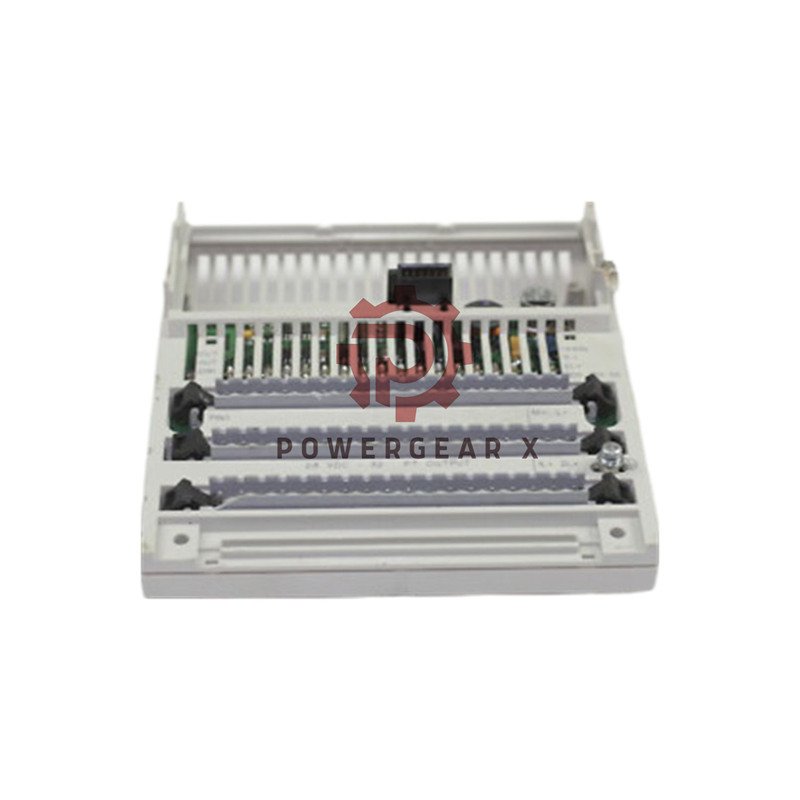

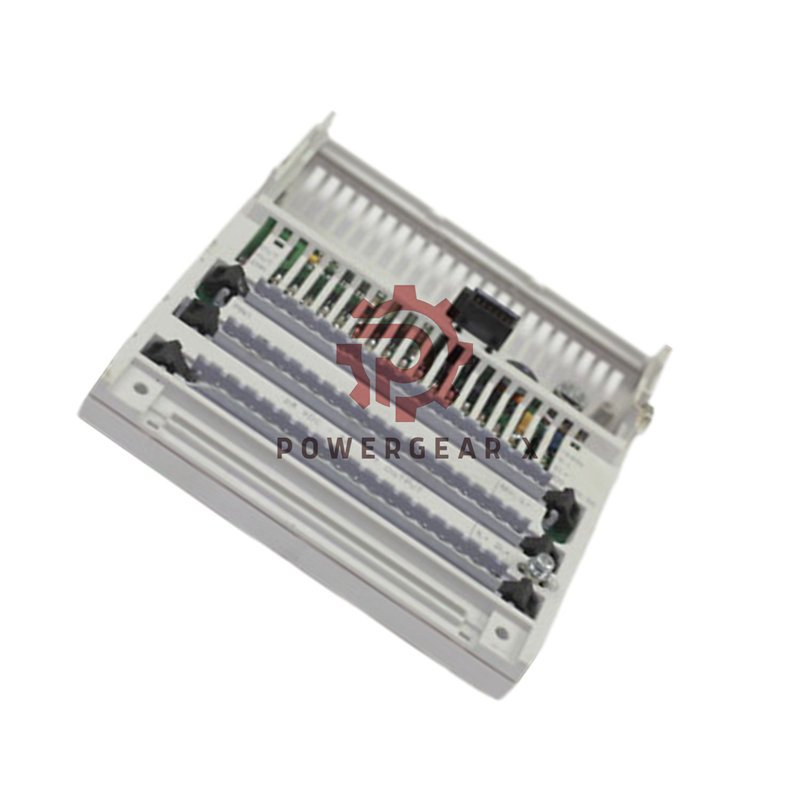

Modicon Momentum 170ADO35000 32-Channel Output Module by Schneider

Schneider Electric 170ADO35000 Output Module Overview

Powergear X Automation

The 170ADO35000 gives fast and clean output control for small and large systems.
It offers 32 solid-state outputs with a 0 to 24 V DC range.
It fits well in cabinets that need simple wiring and stable work.

Core Module Features

• The module supports a surge level of 5 A for 1 ms to handle short peaks.
• Voltage drop stays under 0.5 V at 0.5 A for strong line stability.
• Overload protection uses electronic limits for long service life.
• EMC strength includes 4 kV insulation and 8 kV air discharge rating.
• Immunity stays stable at 10 V/m from 80–1000 MHz.

Extra Technical Details

• Operating range is 0 to 60 °C; storage range is -40 to 85 °C.
• Output speed reaches 1 kHz for fast switching work.
• Weight equals 0.26 kg with UPC 785901308003.
• Rated for Pollution Degree 2 cabinet spaces.
• Unit carries CE, UL, CSA and RoHS marks for global use.

Why Choose the 170ADO35000

• The module gives clean output edges for precise control loops.
• High noise immunity helps in plants with strong RF sources.
• Fast output rate fits modern motion and batch systems.
• Solid-state design reduces wear for long service time.
• Stable 24 V DC rating works with most field loads.

Installation Guide

• Mount the device in a clean cabinet with good airflow.
• Use tight wiring to avoid heat build-up and line loss.
• Keep high-load wires apart from signal links when possible.
• Follow standard grounding rules for EMC stability.
• Inspect contacts every few months for safe operation.

Package Contents

• One 170ADO35000 DC output module.
• One short setup sheet with quick steps.
• Shock-safe packing for global shipping.
• Ships via FedEx, UPS or DHL based on region.
• Includes a 12-month warranty for the module.

Professional FAQ

• How can I keep output heat low?
  Spread high-current loads across channels to balance heat.
• What helps reduce false switching?
  Use clean grounding and short return paths for each load.
• How do I check surge events?
  Inspect output logs or use a clamp meter during peak cycles.
• What improves long-term stability?
  Keep cabinet dust-free and check wire torque twice a year.
• How do I avoid RF issues?
  Place radio devices away from the cabinet and use shielded wiring.
