Product Overview

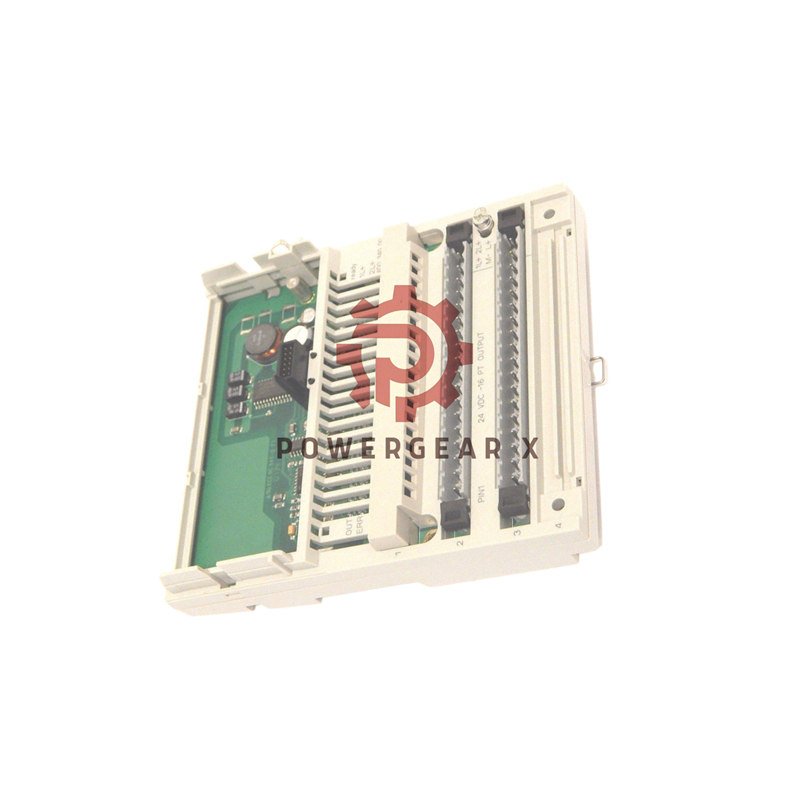

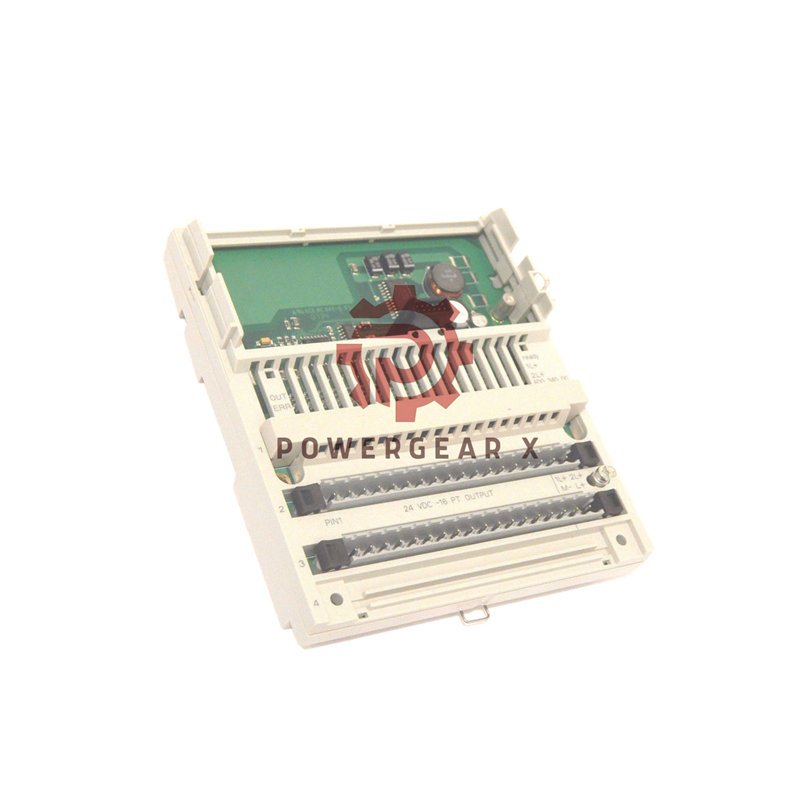

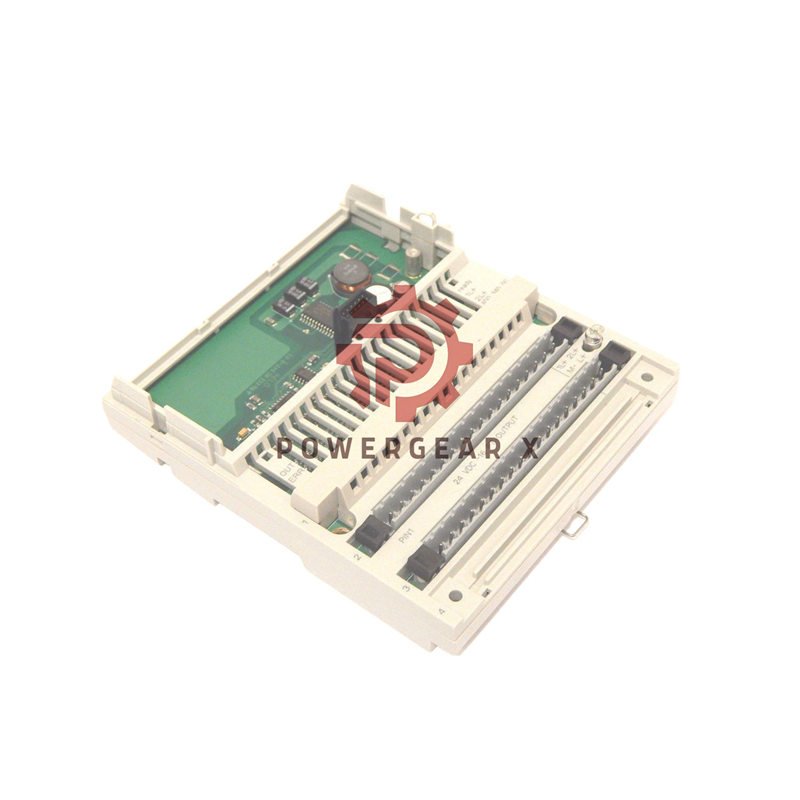

The 170ADO34000 from Schneider Electric Modicon Momentum series delivers stable 24 V DC output control.
Main Features
- 16 solid‑state outputs for fast switching tasks.
- Each output supports 0.5A continuous load.
- Runs at 24 V DC for common automation circuits.
- Fits all Modicon Momentum racks with secure installation.
Technical Specs
- Brand: Schneider Electric, Model: 170ADO34000.
- Type: Discrete output module using solid‑state technology.
- Channels: 16 outputs for light industrial loads.
- Current: 0.5A per channel.
- Operating temp: 0–40°C.
- Storage temp: 0–50°C.
- Humidity: Up to 80% non‑condensing.
- Altitude: Up to 1000m.
- Environment: Clean indoor use only.
- Weight: 0.23 kg (0.50 lbs).
Installation
- Slide the module into the Momentum rack and lock the clip firmly.
- Wire outputs with proper polarity and correct cable size.
- Keep airflow around the device for stable heat control.
- Test each channel before linking field equipment.
Package Includes
- One 170ADO34000 module with protective packing.
- Basic installation guide.
- Shipping via FedEx, UPS, or DHL.
Contact
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQ
- Q: How do I install the module in the rack?
A: Slide it in, align the slot, and lock the clip firmly. - Q: Can it handle inductive loads?
A: Use suppression devices for coils or solenoids. - Q: What conditions keep the module stable?
A: Maintain dry air, clean enclosure, and correct temperature.
