Modicon M580 BMEP583020 Processor Module | Schneider Electric PLC

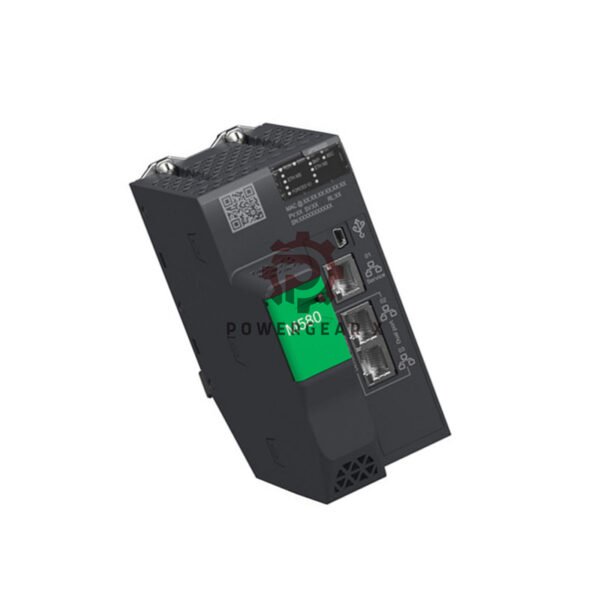

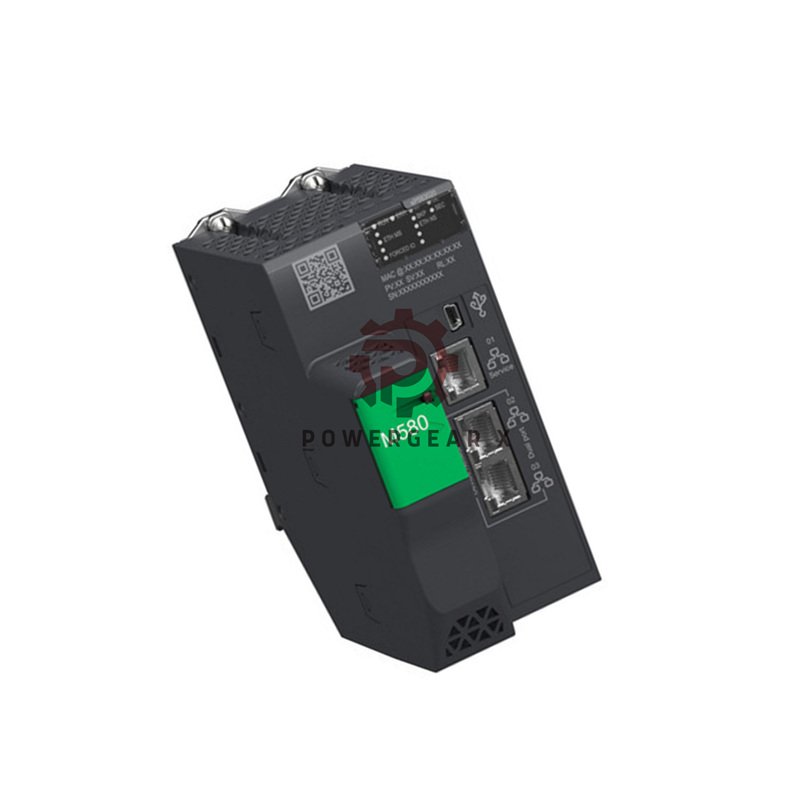

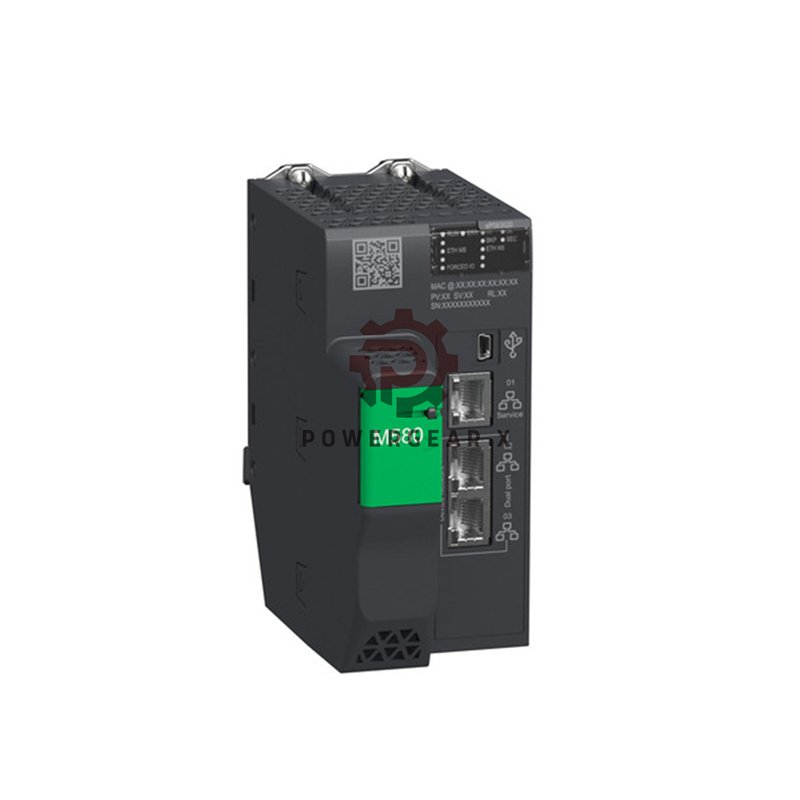

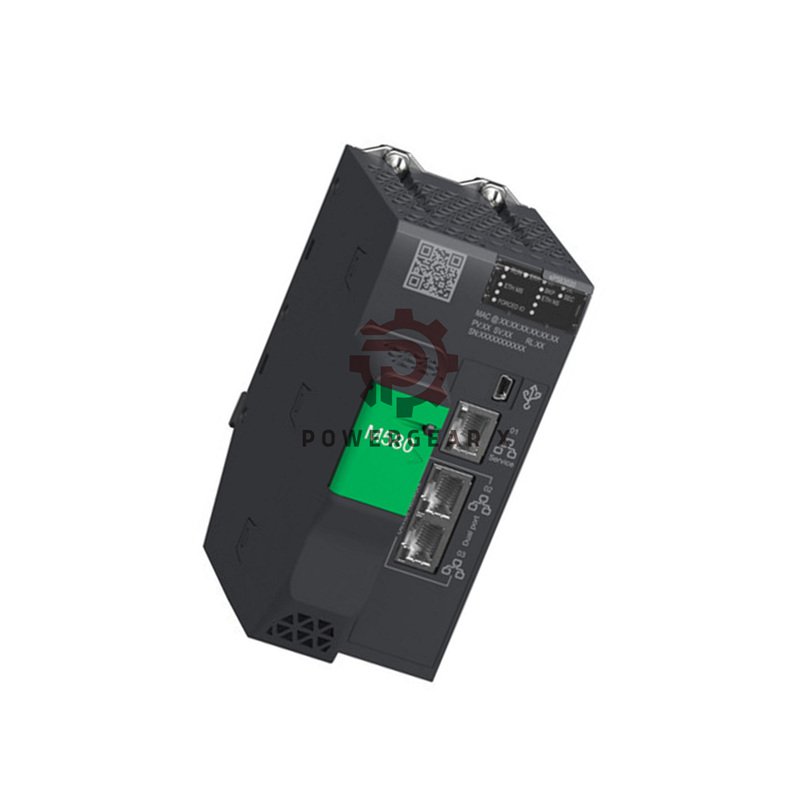

Modicon M580 BMEP583020 High-Capacity Standalone Processor

The BMEP583020 delivers exceptional performance for complex automation systems. This BMEP583020 processor handles 3072 digital and 768 analog I/O points. It supports 125 Ethernet devices with robust cybersecurity protection.

Technical Specifications

• Manufacturer: Modicon
• Model: M580 BMEP583020
• Memory: 12MB program + 1024kB data
• Digital I/O: 3072 points capacity
• Analog I/O: 768 channels capacity
• Ethernet Ports: 2 device network + 1 service
• Processing Speed: 40K instructions/ms
• Power Supply: 24VDC, 295mA consumption
• Weight: 0.849kg (1.872lb)

Advanced Communication Features

• Dual Ethernet TCP/IP ports for device networking
• USB mini-B port for service and configuration
• Supports 6 Ethernet communication modules
• 8 AS-Interface module connectivity
• DIO scanner for distributed I/O management
• 128 distributed equipment capacity

Cybersecurity & Protection

• Achilles certified for network security
• Embedded firewall and DoS prevention
• IPSec and HTTPS secure communication
• Firmware signature and password protection
• Port hardening and audit trail features
• SNMP logging and syslog protocol support

Environmental Specifications

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Vibration Resistance: 3gn
• Shock Resistance: 30gn
• IP Rating: IP20 protection
• Operating Altitude: 0-2000m (5000m with derating)
• MTBF: 775,000 hours reliability

Application Structure

• 1 cyclic/periodic master task for main control
• 1 periodic fast task for time-critical operations
• 2 auxiliary tasks for additional functions
• 128 event tasks for interrupt-driven operations
• Programmable loops for custom logic
• Motion control and HART protocol support

Packaging & Warranty

• 12-month comprehensive warranty
• Worldwide shipping via FedEx, UPS, DHL
• Single unit package: 25×17.8×9cm
• Package weight: 875g per unit
• Bulk packaging: 6 units per carton
• Country of origin: France

Professional FAQ

• What is the maximum number of Ethernet devices supported?
• The processor supports up to 125 Ethernet devices on the network.
• Can this processor handle motion control applications?
• Yes, it supports motion control and SSI encoder interfaces.
• What cybersecurity certifications does it have?
• It features Achilles certification and embedded firewall protection.
• How many local I/O racks can be connected?
• It supports 8 local I/O racks with 3072 digital and 768 analog I/O.
• What is the processor’s mean time between failures?
• MTBF is 775,000 hours ensuring long-term reliability.
