Bently Nevada 3300 NSv Proximity Probe: High-Performance Industrial Sensing

DESCRIPTION

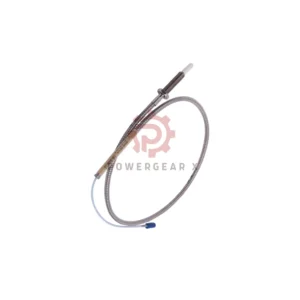

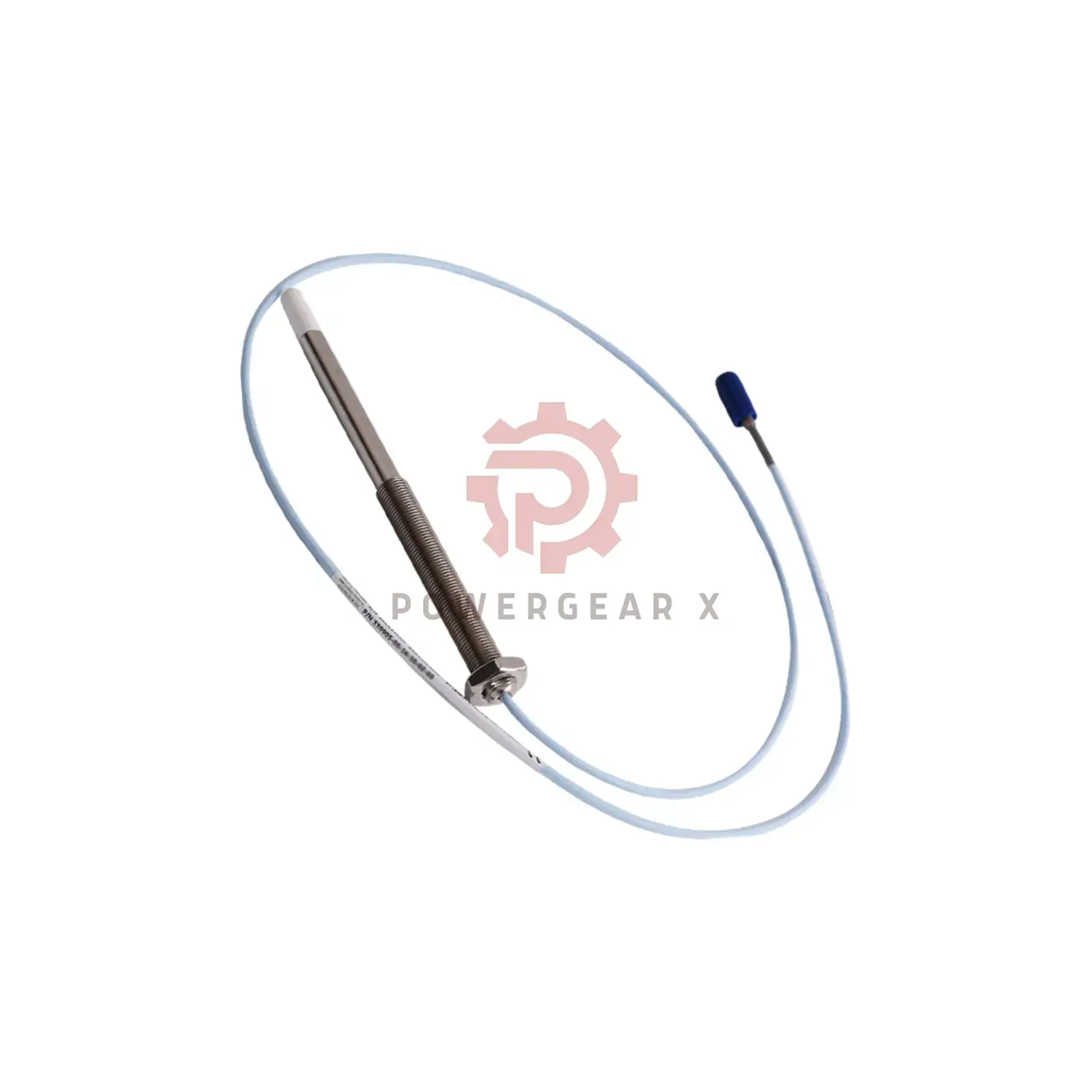

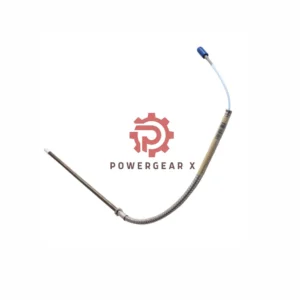

The 3300 NSv Proximity Probe (Model: 330904-00-10-50-12-00) delivers precision measurement for industrial machinery. Featuring an M8X1 threaded stainless steel case and 5.0-meter FluidLoc cable, it ensures reliable performance in harsh environments. Compatible with older 3300 RAM probes, it offers enhanced chemical resistance and superior side-view accuracy.

TECHNICAL DATA

Brand: Bently Nevada
Model: 330904-00-10-50-12-00
Full Suffix Breakdown:
– 00: 0mm Unthreaded Length
– 10: 100mm Overall Case Length
– 50: 5.0m Total Cable Length
– 12: Miniature Coaxial ClickLoc Connector
– 00: No Agency Approval Required

KEY SPECIFICATIONS

Linear Range: 0.25-1.75mm (-1 to -13Vdc)
Accuracy: ±0.06mm deviation from best fit line
Output Signal: 7.87 V/mm ±12.5%
Temp Range: -52°C to +177°C
Cable: 75Ω coaxial FEP insulation
Thread Torque: 5.1 N•m (45 in•lb)

INSTALLATION & COMPATIBILITY

• Mounting: Finger-tighten with max 0.56 N•m torque
• Works With: All 3300 XL NSv Proximitor Sensors
• Field Wiring: Use shielded triad cable (max 305m)

CERTIFICATION & PACKAGE

• Materials: PPS probe tip, 304 SST case
• Sealing: Viton O-ring for pressure differentials
• Package Includes: 1 probe

WHY CHOOSE THIS PROBE?

Ideal for process compressors requiring chemical-resistant sensors. Delivers 10kHz frequency response even with long cabling. Superior to 3000-series probes in side-view measurements.
