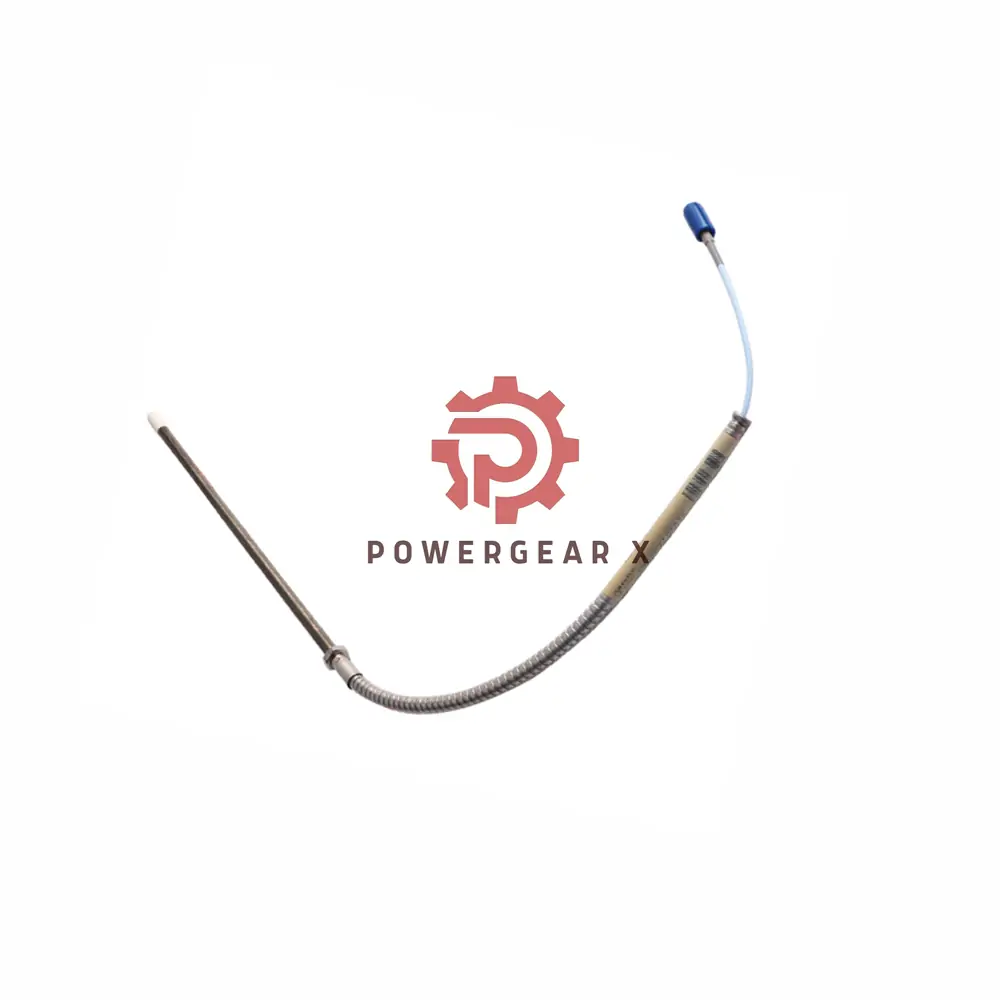

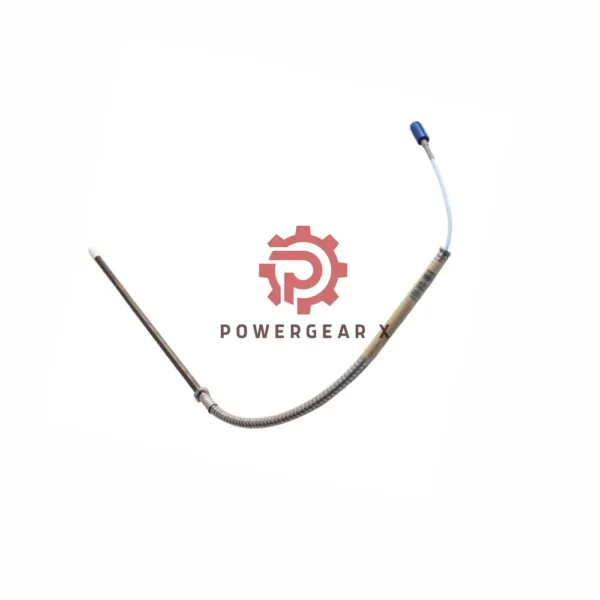

Bently Nevada 3300 NSv Proximity Probe: High-Performance Industrial Sensor
Product Summary
The Bently Nevada 330904-00-10-50-11-05 proximity probe combines precision engineering with 5.0m armored FluidLoc® cable and M8X1 stainless steel threading for harsh industrial environments. Featuring a ClickLoc connector with protector (Option 11) and multiple agency certifications (Option 05), this sensor operates across -62°F to +351°F with ±0.06mm accuracy over a 1.5mm linear range.
Key Specifications
| Part Number | 330904-00-10-50-11-05 | Cable | 5.0m FluidLoc® |
| Thread | M8X1 | Temp Range | -62°F to +351°F |
Model Decoding
▸ 00: 0mm unthreaded length
▸ 10: 100mm case length
▸ 50: 5.0m cable
▸ 11: ClickLoc connector with protector
▸ 05: Multi-agency certified
Critical Technical Data
- ► 1.5mm linear range (0.25-1.75mm)
- ► ±0.06mm accuracy deviation
- ► 75Ω FEP cable with 5.3Ω resistance
Installation Features
| Max Torque | 5 in•lb | Thread Engagement | 12mm |
| Bend Radius | ≥1.0″ | Gap Setting | 1.0mm |
Industry Applications
▸ Process compressors with chemical exposure
▸ Turbine vibration monitoring
▸ Rotating machinery in power plants
Certification & Compliance
Approved for use in regions requiring multiple agency certifications (Option 05)
