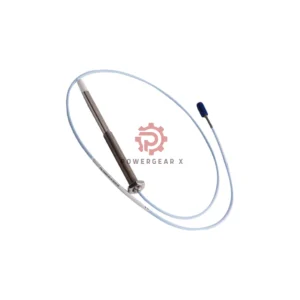

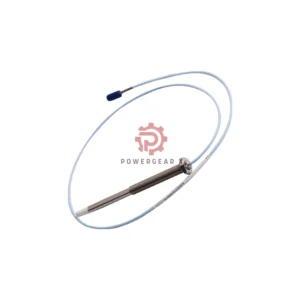

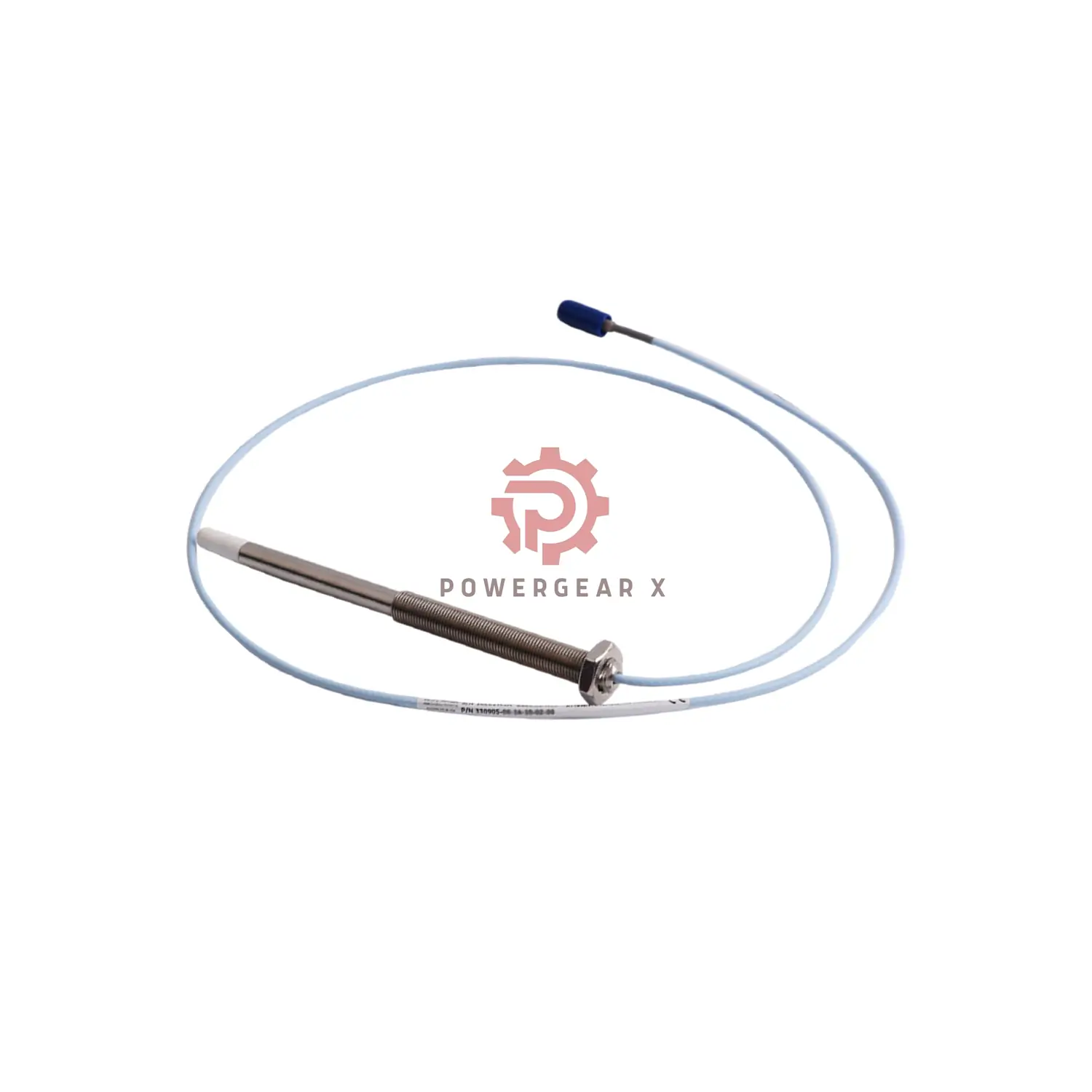

Bently Nevada 330904-08-15-10-01-00 3300 NSv Proximity Probe
Model Full Code (330904-08-15-10-01-00)
- 330904 – 3300 NSv Probe, M8x1 thread, with armor
- -08- Unthreaded length: 80 mm
- -15- Overall case length: 150 mm
- 10 Total probe length: 1.0 meter (39 in)
- 01 Connector/cable: Miniature coaxial ClickLoc connector with protector, standard cable
- 00 Agency approval: Not required
Technical Specifications
- Measurement Range: Linear range 0.25 to 1.75 mm (10 to 70 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil) ±20% tolerance
- Output Signal: -1 to -13 Vdc over linear range
- Frequency Response: 0 to 10 kHz typical with cable length up to 305 m
- Probe Resistance: 4.2 ± 0.5 ohms at 1.0 m length
- Extension Cable Resistance: Center conductor 0.220 Ω/m; Shield 0.066 Ω/m
- Capacitance: 69.9 pF/m typical
- Temperature Range: Operating -52°C to +177°C (-62°F to +351°F)
- Pressure Sealing: Viton O-ring seals probe tip and case
- Minimum Bend Radius: 25.4 mm (1.0 in) with or without armor
Installation Guide
- Use finger tight torque; maximum 0.56 N·m (5 in·lb) on connector
- Probe case torque max 7.3 N·m (65 in·lb), recommended 5.1 N·m (45 in·lb)
- Use shielded triad cable for field wiring (16 to 24 AWG)
- Maximum field cable length: 305 meters (1000 feet)
Compatibility & Application
- Compatible with Bently Nevada 3300 RAM probe and extension cable
- Better chemical resistance suits process compressors
- Ideal for industrial vibration and shaft position monitoring
- Side-view measurement improves accuracy on small shaft diameters
- Can operate in harsh environments with high temperature and pressure
Industrial Solutions
- Helps prevent costly machine failures by precise shaft position monitoring
- Supports predictive maintenance in compressors and turbines
- Resistant to chemicals and heat for long-term reliability
- Easy installation reduces downtime in production plants
- Ensures stable signal even with long cable runs
