Metric | 330904-08-10-05-11-05 Bently Nevada – 3300 NSv Proximity Probes

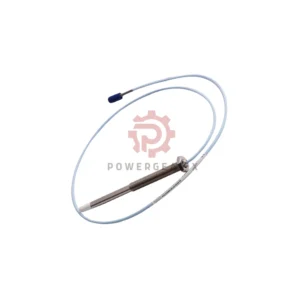

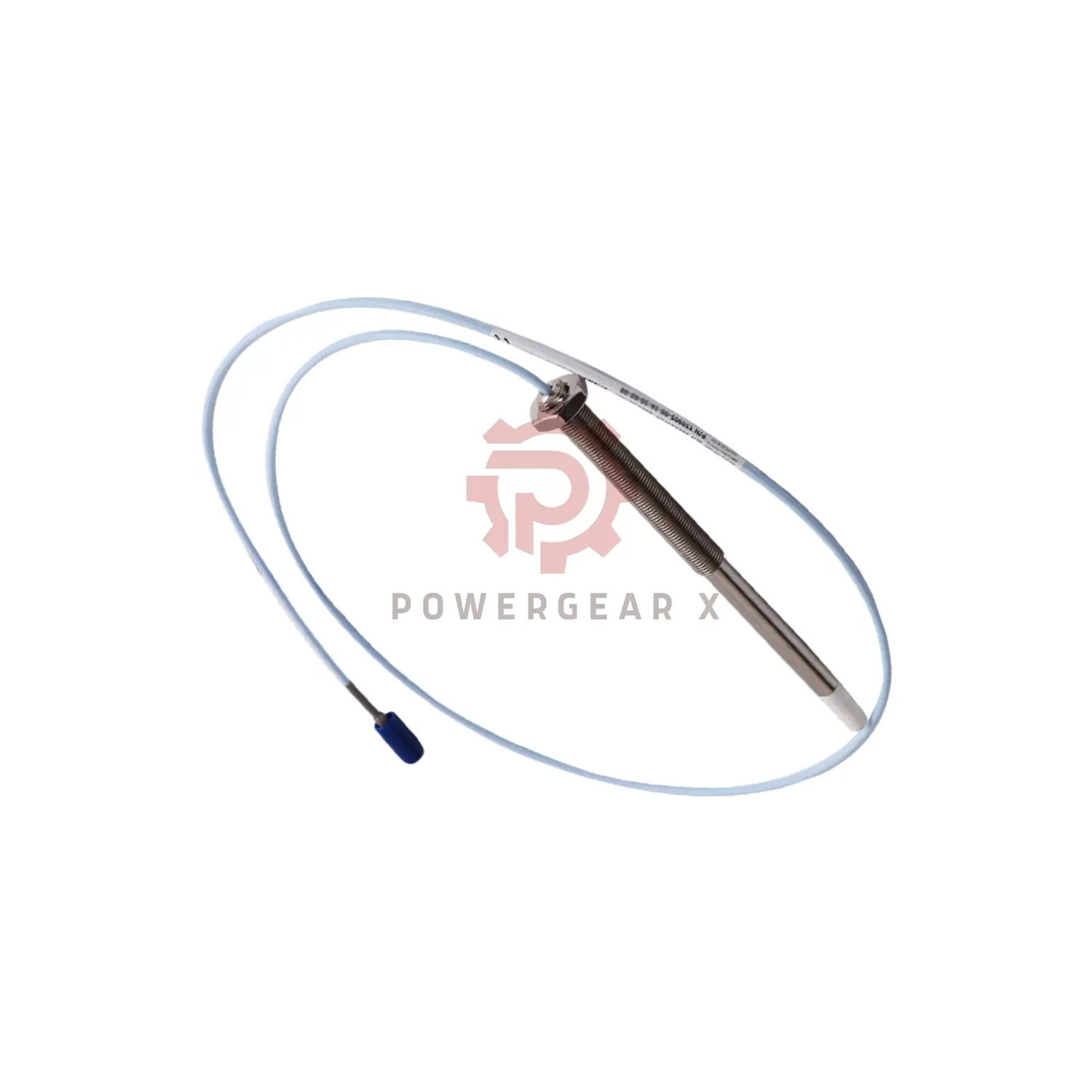

Bently Nevada 330904-08-10-05-11-05 Proximity Probe

Product Overview

The Bently Nevada 330904-08-10-05-11-05 is a 3300 NSv proximity probe with M8x1 threads and armored cable. It is ideal for tight installation spaces and industrial compressors. Designed with chemical-resistant materials, this probe is reliable in harsh process environments.

Key Technical Parameters

• Measurement Range: 1.5 mm (60 mils)
• Recommended Gap: 1.0 mm (40 mils)
• Accuracy: Deviation less than ±0.06 mm
• Output Signal: -1 to -13 VDC
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Frequency Response: 0 to 10 kHz (typical)
• Operating Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Cable Resistance: 0.220 Ω/m center, 0.066 Ω/m shield
• Cable Capacitance: 69.9 pF/m typical

Mounting and Installation

• Thread Type: M8x1
• Max Thread Engagement: 12 mm
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Torque: Finger tight, Max 0.56 N·m
• Minimum Bend Radius: 25.4 mm

Model Code Breakdown

• 330904: 3300 NSv Probe
• -08: Unthreaded Length: 80 mm
• -10: Overall Case Length: 100 mm
• -05: Total Cable Length: 0.5 meter
• -11: Miniature coaxial ClickLoc connector with protector
• -05: Multiple Agency Approvals

What’s in the Box

• 1 x 330904-08-10-05-11-05 Proximity Probe
• Factory-sealed packaging
• No certification documents included

Warranty

Factory warranty: 12 months from shipping date.
