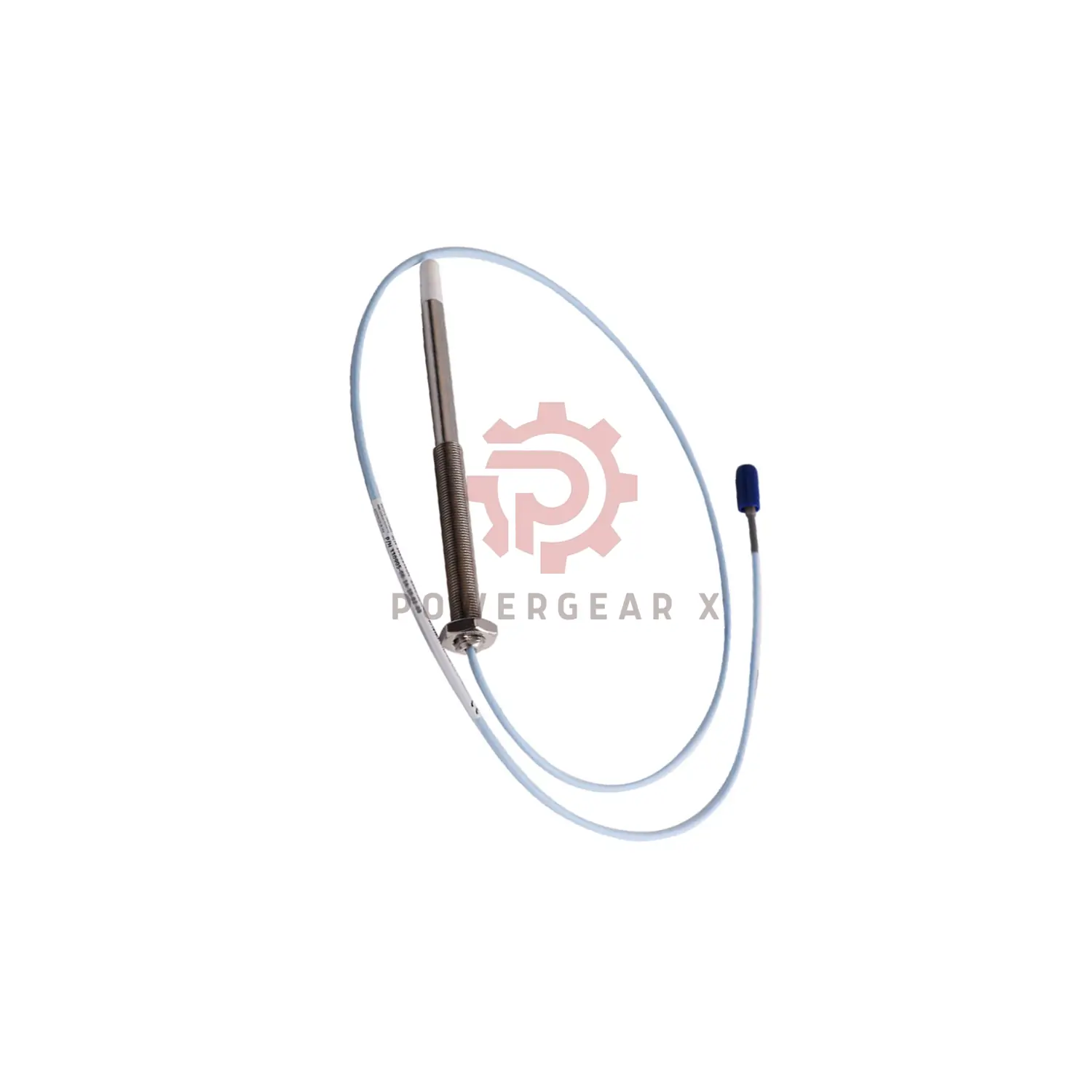

Bently Nevada 330904-08-15-70-01-00 3300 NSv Proximity Probe
Product Overview
The Bently Nevada 330904-08-15-70-01-00 is a 3300 NSv proximity probe with an armored cable and M8x1 threaded case. This model is ideal for monitoring small targets in tight industrial spaces and compressor environments. Its enhanced chemical resistance improves durability in harsh conditions.
Key Technical Parameters
- Linear Range: 1.5 mm (0.25 mm to 1.75 mm)
- Output Signal: -1 to -13 VDC typical
- Accuracy: ISF 7.87 V/mm ±12.5% / -20%
- Deviation from Straight Line: ±0.06 mm
- Recommended Gap: 1.0 mm
- Operating Temp: -52°C to +177°C
- Storage Temp: -52°C to +177°C
- Frequency Response: 0 to 10 kHz (±3 dB typical)
- Pressure Seal: Viton O-ring (not pre-tested)
Model Tree and Suffix Breakdown
- Model: 330904 – NSv Probe with M8x1 thread and armor
- Unthreaded Length: -08 = 80 mm
- Overall Case Length: -15 = 150 mm
- Total Cable Length: 70 = 7.0 meters
- Connector and Cable Type: 01 = Miniature coaxial ClickLoc with protector
- Agency Approval: 00 = Not required
Installation Guide
- Thread Engagement: Max 12 mm
- Torque – Finger Tight: Recommended
- Torque – Max: 0.56 N·m (5 in·lb)
- Min Bend Radius: 25.4 mm
- Field Wiring: 16 to 24 AWG (3-wire shielded recommended)
- Max Field Cable Length: 305 m
Compatibility
- Fully interchangeable with previous 3300 RAM proximity systems
- Enhanced performance compared to 3000-series 190 probe
- Recommended for shaft diameters ≥13 mm
Packaging and Shipping
- Condition: Brand New and Original
- Packing: Factory Sealed
- Warranty: 12 Months
- Courier: FedEx, UPS, DHL (choose at checkout)
