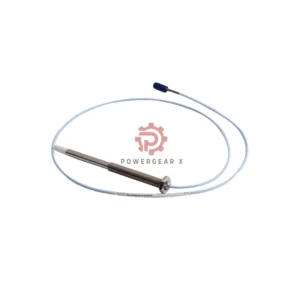

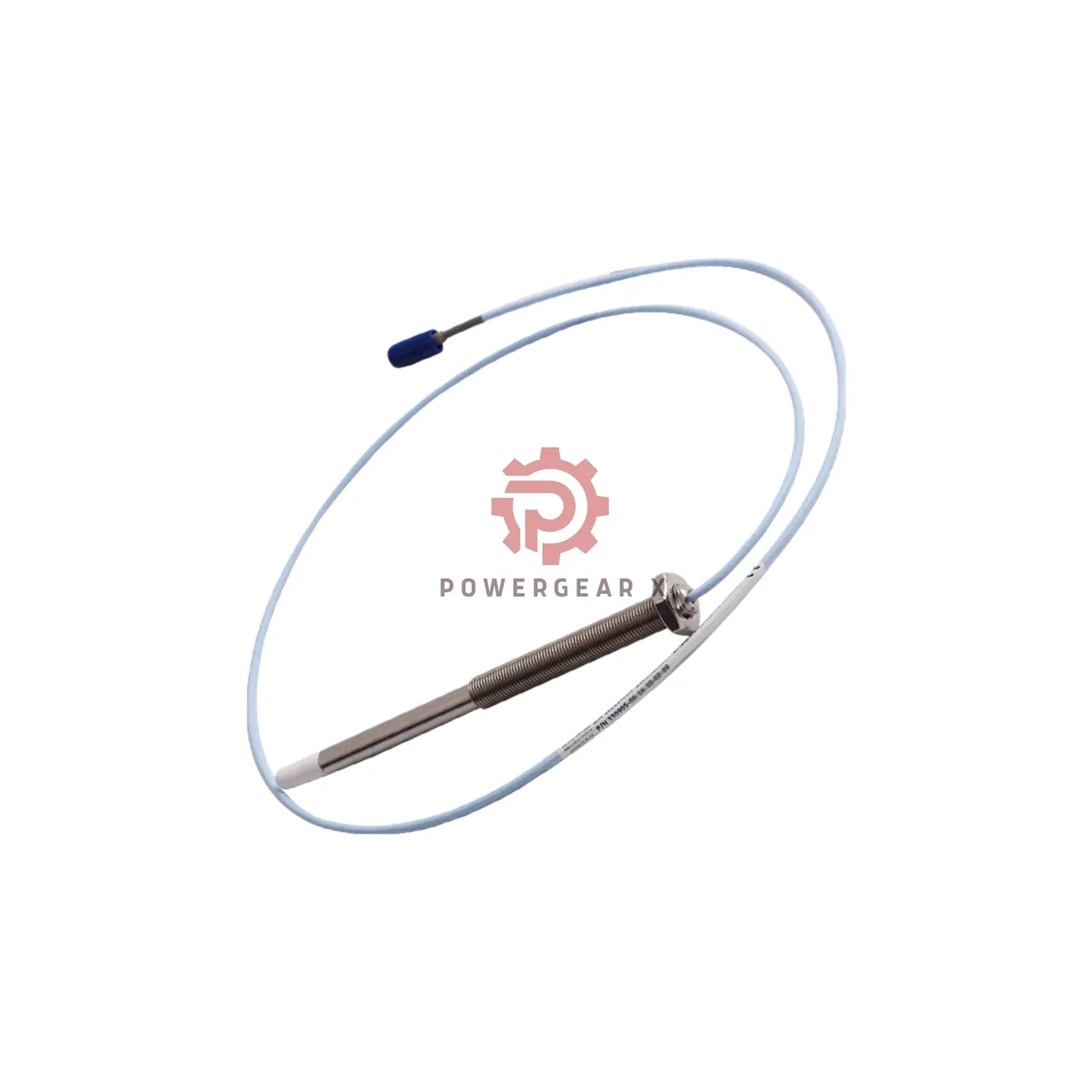

Bently Nevada 330904-08-15-50-12-05 3300 NSv Proximity Probe

Overview

This is a new and original Bently Nevada 330904-08-15-50-12-05 proximity probe. It has an M8x1 thread and armored cable. Packed in factory box. Includes a 12-month warranty.

Key Specs

• Range: 1.5 mm (60 mils)
• Accuracy: ±2.3 mils
• Signal: 7.87 V/mm (200 mV/mil)
• Use Temp: -52°C to +177°C
• Storage Temp: -52°C to +177°C
• Sealing: Viton O-ring
• Max Torque: 0.56 N·m (5 in·lb)
• Cable: 75 Ω coaxial, FEP
• Bend Radius: 25.4 mm
• Probe Resistance: 5.3 ± 0.7 Ω (5m)
• Frequency: 0–10 kHz

Model Breakdown

• 330904: NSv probe, M8x1 thread with armor
• -08-: 80 mm unthreaded part
• -15-: 150 mm full length
• 50: 5.0 meters cable
• 12: ClickLoc connector, FluidLoc cable
• 05: Multiple agency approvals

How to Install

• Use finger to tighten
• Gap: 1.0 mm (recommended)
• Max thread: 12 mm
• Use 16–24 AWG shielded triad cable

Works With

• 3300 RAM probes and cables
• 3300 XL NSv Proximitor sensors

Package and Shipping

• Factory sealed
• 12-month warranty
• Fast shipping: FedEx, UPS, DHL

More Technical Info

• Cable Resistance: Center: 0.220 Ω/m, Shield: 0.066 Ω/m
• Cable Capacitance: 69.9 pF/m
• Min Target Size: 8.9 mm
• Best Target Size: 13 mm or more
